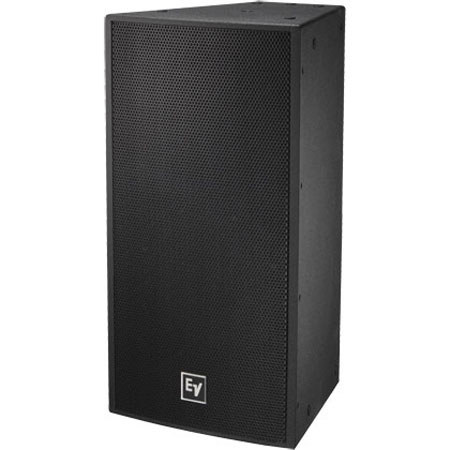

Electro-Voice EVF-1122D/126 12" 2-Way 120 x 60 Full-Range Evcoat Loudspeaker, 57Hz-18kHz, 97dB Sensitivity, 131dB SPL, 8 Ohms, Single, Black

SKU: EVF1122D126B MFR: F.01U.272.606
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve powerful audio with a peak output of 2400W, perfect for live sound reinforcement.
  • Enjoy flexible setup with rotatable coverage (120 x 60 degrees) for optimal sound dispersion.
  • Built for durability, featuring a weather-resistant birch enclosure with EVCoat.
  • Ideal for permanent installations with multiple M10 threaded suspension points.
  • Get pristine audio with a wide frequency response of 57Hz-18kHz for crystal-clear sound.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/126 Specifications

  • Frequency Response

    -3dB: 57Hz-18kHz
    -10dB: 49Hz-21kHz

  • Rotatable Coverage

    120 deg. x 60 deg.

  • Rec. High-Pass Frequency

    65Hz

  • Passive Crossover Frequency

    1300 Hz

  • Axial Sensitivity

    97 dB (1 W/1 m)
    LF: 98dB (1 W/1 m)
    HF: 111dB (1 W/1 m)

  • SPL

    131 dB (Max.)
    LF: 131 dB (Max.)
    HF: 136dB (Max.)

  • Power Handling

    Passive: 600W continuous, 2400W peak
    LF: 500W continuous, 2000W peak
    HF: 75W continuous, 300W peak

  • Impedance

    8 Ohms (nominal), 6.0 Ohms (min.)
    LF: 8 Ohms (nominal), 7.2 Ohms (min.)
    HF: 8 Ohms (nominal), 6.0 Ohms (min.)

  • Connectors

    Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
    PI Version - CDG dual gland-nut input panel cover included

  • Enclosure

    13-ply weather-resistant birch with fiberglass EVCoat

  • Grille

    16 GA powder-coated galvanneal with rotatable logo
    PI Version - Stainless steel with hydrophobic cloth

  • Environmental

    IEC 60529 IP55 for PI version

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/126

The Electro-Voice EVF-1122D/126 12" 2-Way 120 x 60 Full-Range Evcoat Black Loudspeaker is a high-power, that can be used in a variety of applications where high-quality sound reinforcement is required in a compact, light weight package. The EVF-1122D/126 utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity 120deg. X 60deg. waveguide. The DVX3121A 12" woofer was developed using FEA optimization for motor, suspension and electrical design to ensure very low distortion, high efficiency and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long-term reliability. The EVF-1122D/126 features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather resistant birch and coated with EVCoat for maximum protection from the elements.

The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.

Electro-Voice EVF-1122D/126 Features

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve powerful audio with a peak output of 2400W, perfect for live sound reinforcement.
  • Enjoy flexible setup with rotatable coverage (120 x 60 degrees) for optimal sound dispersion.
  • Built for durability, featuring a weather-resistant birch enclosure with EVCoat.
  • Ideal for permanent installations with multiple M10 threaded suspension points.
  • Get pristine audio with a wide frequency response of 57Hz-18kHz for crystal-clear sound.

What's in the box:

  • Electro-Voice EVF-1122D/126 12 " 2-Way 120 x 60 Full-Range Evcoat Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
