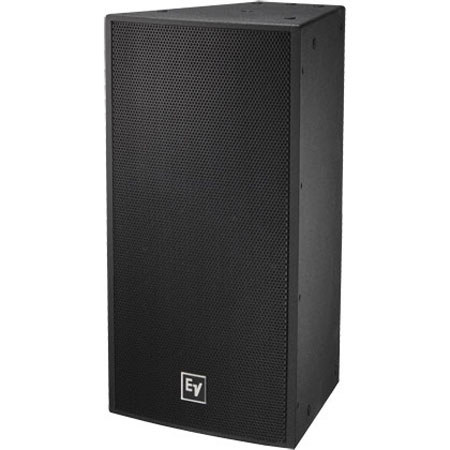

Electro-Voice EVF-1122D/64 12" 2-Way 60 x 40 Full-Range Fiberglass Loudspeaker, 57Hz-18kHz Frequency Response, 97dB, 131dB SPL, 8 Ohms, Single, Black

SKU: EVF1122D64FB MFR: F.01U.272.923
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • This durable PA speaker delivers powerful audio with a frequency response of 57Hz-18kHz.
  • Achieve optimal coverage with the 60 x 40 degree rotatable coverage of this PA system.
  • Enjoy high SPL output, reaching up to 131dB, perfect for live sound reinforcement.
  • This 600W continuous power handling speaker is ideal for professional audio setups.
  • Built for lasting performance, this fiberglass loudspeaker is weather-resistant and rugged.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/64FB Specifications

  • Frequency Response

    -3dB: 57Hz-18kHz
    -10dB: 49Hz-21kHz

  • Rotatable Coverage

    60 deg. x 40 deg.

  • Rec. High-Pass Frequency

    65Hz

  • Crossover Frequency

    1300 Hz

  • Axial Sensitivity

    97dB (1 W/1 m)
    LF: 98dB (1 W/1 m)
    HF: 111dB (1 W/1 m)

  • SPL

    131dB (Max.)
    LF: 131dB (Max.)
    HF: 136dB (Max.)

  • Power Handling

    Passive: 600W continuous, 2400W peak
    LF: 500W continuous, 2000W peak
    HF: 75W continuous, 300W peak

  • Impedance

    8 Ohms (nominal), 6.0 Ohms (min.)
    LF: 8 Ohms (nominal), 7.2 Ohms (min.)
    HF: 8 Ohms (nominal), 6.0 Ohms (min.)

  • Connectors

    Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
    PI Version - CDG dual gland-nut input panelcover included

  • Enclosure

    13-ply weather-resistant birch with fiberglass finish

  • Grille

    16 GA powder-coated galvanneal with rotatable logo
    PI Version - Stainless steel with hydrophobic cloth

  • Environmental

    IEC 60529 IP55 for PI version

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    65.48lbs / 29.7kg

  • UPC Code

    00701001113736

About Electro-Voice EVF-1122D/64FB

Just imagine the power and clarity of sound that the Electro-Voice EVF-1122D/64 12" 2-Way 60 x 40 Full-Range Fiberglass Black Loudspeaker can deliver. This high-quality, durable audio equipment is designed by the reputable Electro-Voice brand, known for their commitment to superior sound production.

This stylish and reliable loudspeaker boasts a 60-degree x 40-degree rotatable waveguide, meticulously engineered for far-field, long-throw coverage patterns. This feature ensures that your sound reaches every corner of your venue, providing an immersive audio experience for your audience.

The EVF-1122D/64 is not just about reach; it's about range too. With a wide frequency response of 57Hz-18kHz, it can handle both low and high frequencies with ease, making it a versatile choice for different types of music or sound. Whether you're hosting a rock concert or a classical music performance, this speaker can deliver the sound quality you need.

Moreover, this powerful loudspeaker offers a high sound pressure level (SPL) of 97dB and 131dB, ensuring that your sound is not only clear but also loud enough to fill large spaces. Its low impedance of 8 ohms further enhances its performance, making it suitable for a variety of applications and environments.

Crafted from durable fiberglass, the EVF-1122D/64 is designed to withstand the rigors of live performances and events. Its sleek black finish adds a touch of elegance to its robust design, making it a stylish addition to any stage or venue.

In summary, the Electro-Voice EVF-1122D/64 12" 2-Way 60 x 40 Full-Range Fiberglass Black Loudspeaker is a reliable, high-quality choice for professionals seeking powerful, clear, and wide-ranging sound delivery.

Electro-Voice EVF-1122D/64FB Features

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • This durable PA speaker delivers powerful audio with a frequency response of 57Hz-18kHz.
  • Achieve optimal coverage with the 60 x 40 degree rotatable coverage of this PA system.
  • Enjoy high SPL output, reaching up to 131dB, perfect for live sound reinforcement.
  • This 600W continuous power handling speaker is ideal for professional audio setups.
  • Built for lasting performance, this fiberglass loudspeaker is weather-resistant and rugged.

What's in the box:

  • Electro-Voice EVF-1122D/64 12 " 2-Way 90 x 90 Full-Range Fiberglass Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
