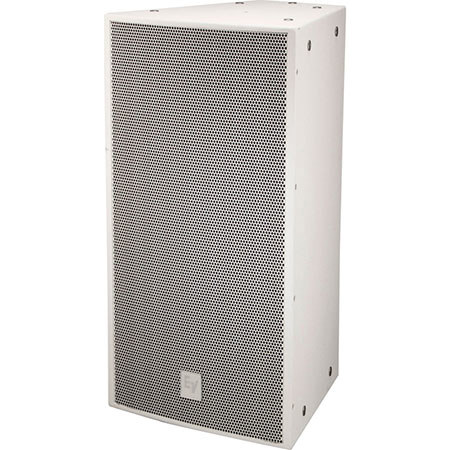

Electro-Voice EVF-1122D/64 12" 2-Way 60 x 40 Full-Range Fiberglass Loudspeaker, 57Hz-18kHz Frequency Response, 97dB, 131dB SPL, 8 Ohms, Single, White

SKU: EVF1122D64FW MFR: F.01U.272.924
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range PA loudspeaker.
  • Achieve powerful audio output with 600W continuous, 2400W peak power handling.
  • Enjoy versatile PA speaker use with a wide 57Hz-18kHz frequency response.
  • Ensure durability with weather-resistant birch and fiberglass finish enclosure.
  • Easily install this PA speaker using M10 threaded suspension points.
  • Get pristine audio with 97dB sensitivity, perfect for live sound applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/64FB Specifications

  • Frequency Response

    -3dB: 57Hz-18kHz
    -10dB: 49Hz-21kHz

  • Rotatable Coverage

    60 deg. x 40 deg.

  • Rec. High-Pass Frequency

    65Hz

  • Crossover Frequency

    1300 Hz

  • Axial Sensitivity

    97dB (1 W/1 m)
    LF: 98dB (1 W/1 m)
    HF: 111dB (1 W/1 m)

  • SPL

    131dB (Max.)
    LF: 131dB (Max.)
    HF: 136dB (Max.)

  • Power Handling

    Passive: 600W continuous, 2400W peak
    LF: 500W continuous, 2000W peak
    HF: 75W continuous, 300W peak

  • Impedance

    8 Ohms (nominal), 6.0 Ohms (min.)
    LF: 8 Ohms (nominal), 7.2 Ohms (min.)
    HF: 8 Ohms (nominal), 6.0 Ohms (min.)

  • Connectors

    Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
    PI Version - CDG dual gland-nut input panelcover included

  • Enclosure

    13-ply weather-resistant birch with fiberglass finish

  • Grille

    16 GA powder-coated galvanneal with rotatable logo
    PI Version - Stainless steel with hydrophobic cloth

  • Environmental

    IEC 60529 IP55 for PI version

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    65.48lbs / 29.7kg

About Electro-Voice EVF-1122D/64FB

Because you demand superior audio performance, the Electro-Voice EVF-1122D/64 12" 2-Way 60 x 40 Full-Range Fiberglass White Loudspeaker is the perfect choice. This high-quality, durable loudspeaker is designed by Electro-Voice, a brand renowned for its commitment to producing reliable, top-tier audio equipment.

This stylish white loudspeaker boasts a 12" 2-Way full-range speaker system, capable of delivering both low and high frequencies. This makes it an ideal choice for a wide array of sound and music applications, from live performances to large-scale events.

One of the standout features of this powerful loudspeaker is its impressive frequency response of 57Hz-18kHz. This wide range ensures that it can produce a comprehensive range of sound, from the deepest bass to the highest treble. Coupled with a high sound pressure level (SPL) of 131dB, this loudspeaker can produce incredibly loud sound without compromising on clarity or quality.

The EVF-1122D/64 also features a 60-degree x 40-degree rotatable waveguide, specifically designed for far-field long-throw coverage patterns. This ensures that the sound is distributed evenly across large venues or outdoor spaces, providing an immersive audio experience for all listeners.

Constructed from durable fiberglass, this loudspeaker is not only robust but also resistant to weather conditions, making it a reliable choice for outdoor events. With its combination of powerful performance, wide frequency response, and durable construction, the Electro-Voice EVF-1122D/64 12" 2-Way 60 x 40 Full-Range Fiberglass White Loudspeaker is a sound investment for any professional audio setup.

Electro-Voice EVF-1122D/64FB Features

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range PA loudspeaker.
  • Achieve powerful audio output with 600W continuous, 2400W peak power handling.
  • Enjoy versatile PA speaker use with a wide 57Hz-18kHz frequency response.
  • Ensure durability with weather-resistant birch and fiberglass finish enclosure.
  • Easily install this PA speaker using M10 threaded suspension points.
  • Get pristine audio with 97dB sensitivity, perfect for live sound applications.

What's in the box:

  • Electro-Voice EVF-1122D/99 12 " 2-Way 90 x 90 Full-Range Fiberglass Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
