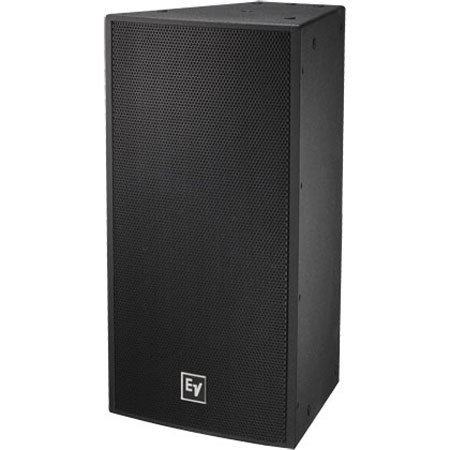

Electro-Voice EVF-1122D/64 12" 2-Way Full-range PI-Weatherized Loudspeaker, 8 Ohms Nominal Impedance, 97dB Sensitivity, 49-21000Hz, 60x40deg. Coverage, Single, Black

SKU: EVF1122D64PB MFR: F.01U.272.588
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Get powerful audio with a 600W PA speaker, perfect for live sound events.
  • This durable PA speaker is weatherized for reliable outdoor use; IP55 rated.
  • Enjoy wide, clear coverage with its 60x40 degree dispersion for your audience.
  • Achieve high sensitivity (97dB) for clear audio, even at a distance, from this speaker.
  • Rugged birch enclosure ensures lasting durability for demanding PA applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/64PI Specifications

  • Environmental

    PI versions: IEC 60529 IP55

  • Input Connections

    Phoenix/Euroblock style screw terminals
    PI versions include dual-gland-nut input-panel cover

  • Frequency Response (-3 dB)

    57 - 18000Hz

  • Frequency Response (-10 dB)

    49 - 21000Hz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    97 dB

  • Max. SPL/1m (calc)

    131 dB

  • Coverage (Nominal -6 dB) H

    60 deg.

  • Coverage (Nominal -6 dB) V

    40 deg.

  • System Power Handling

    600/1200/2400 Watts

  • LF Transducer

    DVX3121A 12" / 304.8mm woofer

  • LF Nominal Impedance

    8Ohms

  • HF Transducer

    DH7N 3" / 76.2mm diaphragm compression driver

  • Crossover Frequency

    1300 Hz

  • Minimum Impedance

    6Ohms

  • Enclosure Material

    13-ply weather-resistant birch with EVCoat

  • Grill

    16 GA powder-coated galvanneal with screen behind

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 768.60 x 406.4 x 413.25mm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/64PI

After meticulous engineering, the Electro-Voice EVF-1122D/64 emerges as a robust 12" 2-Way Full-range PI-Weatherized Loudspeaker, designed to meet the demanding needs of professional audio environments. This black loudspeaker boasts an impressive 8 Ohms nominal impedance and a high sensitivity of 97dB, ensuring powerful and clear sound reproduction across a broad frequency range of 49-21000Hz.

Crafted for superior performance, the EVF-1122D/64 features a 60x40 degree rotatable waveguide, which allows for precise tailoring of the far field long throw coverage pattern. This adaptability makes the speaker an excellent choice for a variety of live performances, from concerts to outdoor events, where directional sound is paramount.

The durable construction of this loudspeaker is further enhanced by its PI-Weatherized design, which provides resilience against the elements, making it an ideal option for both indoor and outdoor applications. Whether facing rain or shine, this speaker maintains its integrity and audio quality, ensuring reliable performance under challenging conditions.

Professionals in the audio industry will appreciate the high-quality components and meticulous craftsmanship that Electro-Voice is renowned for. The EVF-1122D/64 stands out as a powerful, professional-grade loudspeaker that delivers exceptional sound coverage and clarity, making it a top contender for those seeking a dependable audio solution for their events.

Electro-Voice EVF-1122D/64PI Features

  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Get powerful audio with a 600W PA speaker, perfect for live sound events.
  • This durable PA speaker is weatherized for reliable outdoor use; IP55 rated.
  • Enjoy wide, clear coverage with its 60x40 degree dispersion for your audience.
  • Achieve high sensitivity (97dB) for clear audio, even at a distance, from this speaker.
  • Rugged birch enclosure ensures lasting durability for demanding PA applications.

What's in the box:

  • Electro-Voice EVF-1122D/64 12 " 2-Way PI-Weatherized Loudspeaker
  • Dual-gland-nut Input-panel Cover
  • Electro-Voice 3 Year Limited Warranty
