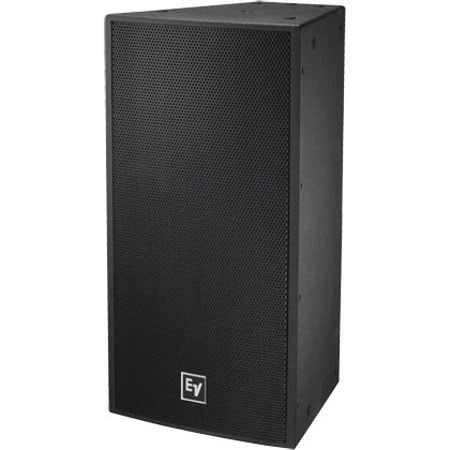

Electro-Voice EVF-1122D/66 12" 2-Way 60 x 60 Full-Range Fiberglass Weatherized Loudspeaker, 57Hz-18kHz, 97dB Sensitivity, 131dB SPL, 8 Ohms, Single, Black

SKU: EVF1122D66FB MFR: F.01U.272.925
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range PA loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events, offering reliable durability.
  • Achieve powerful audio projection with a peak power handling of 2400W in this speaker.
  • Enjoy flexible connectivity options with dual four-pin Phoenix/Euro Block terminals.
  • The 60 x 60 coverage ensures wide sound dispersion for your audience at any event.
  • Durable fiberglass enclosure protects your investment, making it ideal for installations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/66FB Specifications

  • Frequency Response

    -3dB: 57Hz-18kHz
    -10dB: 49Hz-21kHz

  • Rotatable Coverage

    60 deg. x 60 deg.

  • Rec. High-Pass Frequency

    65Hz

  • Crossover Frequency

    1300 Hz

  • Axial Sensitivity

    97dB (1 W/1 m)
    LF: 98dB (1 W/1 m)
    HF: 112dB (1 W/1 m)

  • SPL

    131dB (Max.)
    LF: 131dB (Max.)
    HF: 137dB (Max.)

  • Power Handling

    Passive: 600W continuous, 2400W peak
    LF: 500W continuous, 2000W peak
    HF: 75W continuous, 300W peak

  • Impedance

    8 Ohms (nominal), 6.0 Ohms (min.)
    LF: 8 Ohms (nominal), 7.2 Ohms (min.)
    HF: 8 Ohms (nominal), 6.0 Ohms (min.)

  • Connectors

    Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
    PI Version - CDG dual gland-nut input panelcover included

  • Enclosure

    13-ply weather-resistant birch with fiberglass finish

  • Grille

    16 GA powder-coated galvanneal with rotatable logo
    PI Version - Stainless steel with hydrophobic cloth

  • Environmental

    IEC 60529 IP55 for PI version

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    65.48lbs / 29.7kg

  • UPC Code

    00701001113804

About Electro-Voice EVF-1122D/66FB

Over the years, Electro-Voice has established itself as a leader in professional audio solutions, and the EVF-1122D/66 12" 2-Way 60 x 60 Full-Range Fiberglass Weatherized Loudspeaker is a testament to this legacy. This robust and high-performance loudspeaker system is engineered to deliver exceptional sound reinforcement in a variety of settings, from live performances to outdoor events, where premium sound quality is non-negotiable.

Crafted for durability and reliability, the EVF-1122D/66 features a weather-resistant birch plywood enclosure with EVCoat finish, ensuring it stands up to the elements and the rigors of on-the-go use. The system's high-output DH7N 3" titanium compression driver is paired with a Constant Directivity 60° x 60° waveguide, providing a focused audio dispersion that maintains clarity and impact over a wide listening area.

At the heart of the loudspeaker's acoustic excellence is the DVX3121A 12" woofer, meticulously designed using Finite Element Analysis (FEA) to optimize the motor, suspension, and electrical components. This results in minimal distortion, high efficiency, and superior intelligibility even at the highest sound pressure levels, which peak at an impressive 131dB SPL.

The EVF-1122D/66's advanced crossover network features steep 24-dB-per-octave slopes and tailored equalization, ensuring a smooth frequency response, particularly in the critical vocal range. Additionally, the linear off-axis response and integrated protection circuit contribute to the system's long-term dependability and consistent performance.

This loudspeaker's versatility extends to its installation options. The trapezoidal design and comprehensive rigging points allow for both vertical and horizontal clustering, compatible with the full range of EVF and EVH series loudspeakers. This modularity, combined with seven selectable horn patterns, empowers sound engineers and venue designers to create bespoke audio setups that perfectly match the acoustic characteristics of any space.

The innovative input panel is yet another feature that underscores the EVF-1122D/66's adaptability. It comes standard with a Phoenix-style connector, with the option to add a dual NL4-type connector or a gland-nut cover plate for enhanced weather protection. An externally accessible jumper allows for easy switching between passive and bi-amp operation, and for distributed systems, a 70.7/100-V transformer kit can be seamlessly integrated.

In summary, the Electro-Voice EVF-1122D/66 is a professional-grade, powerful, and reliable loudspeaker system that offers unparalleled sound quality, flexibility, and resilience. It is an ideal choice for audio professionals seeking a full-range solution that excels in both performance and adaptability for a wide array of venues and events.

Electro-Voice EVF-1122D/66FB Features

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range PA loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events, offering reliable durability.
  • Achieve powerful audio projection with a peak power handling of 2400W in this speaker.
  • Enjoy flexible connectivity options with dual four-pin Phoenix/Euro Block terminals.
  • The 60 x 60 coverage ensures wide sound dispersion for your audience at any event.
  • Durable fiberglass enclosure protects your investment, making it ideal for installations.

What's in the box:

  • Electro-Voice EVF-1122D/66 12 " 2-Way 60 x 60 Full-Range Fiberglass Weatherized Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
