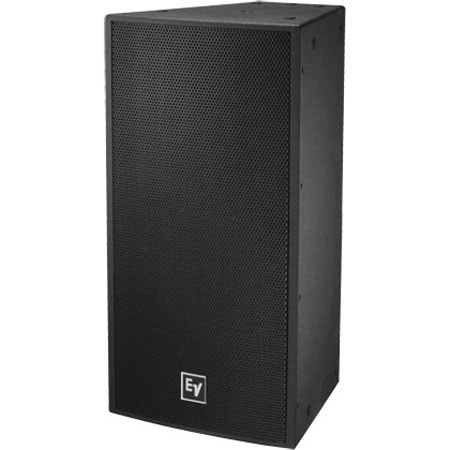

Electro-Voice EVF-1122D/94 12" 2-Way 90 x 40 Full-Range Fiberglass Weatherized Loudspeaker, 57Hz-18kHz, 97dB Sensitivity, 131dB SPL, 8 Ohms, Single, Black

What sets the Electro-Voice EVF-1122D/94 12" 2-Way 90 x 40 Full-Range Fiberglass Weatherized Black Loudspeaker System apart is its high-power output and compact, lightweight design, making it a top choice for diverse applications requiring superior sound reinforcement. This professional-grade loudspeaker system is equipped with the DH7N, a high-output 3" titanium compression driver, seamlessly paired with a Constant Directivity 90-degree x 40-degree waveguide, ensuring optimal sound projection.

The heart of this system is the DVX3121A 12" woofer, meticulously engineered using Finite Element Analysis (FEA) for motor, suspension, and electrical design. This results in minimal distortion, high efficiency, and crystal-clear intelligibility even at high Sound Pressure Levels (SPL). The crossover features steep, 24-dB-per-octave slopes with equalization, delivering a smooth response in the vocal range and linear off-axis response, coupled with a protection circuit for long-term reliability.

The EVF-1122D/94's robust features make it a perfect fit for a multitude of fixed-install applications. Its trapezoidal enclosure, constructed of weather-resistant birch and coated with EVCoat, offers maximum protection from the elements. The innovative acoustic and rigging design allows for the creation of vertical and horizontal clusters using any combination of loudspeakers from the entire EVF and EVH series.

Offering seven horn patterns, along with an assortment of low-frequency and subwoofer loudspeakers, this system provides the tools to maximize the flexibility of system design, catering to any application and budget. The innovative input panel includes a Phoenix-style connector and the option to add a dual NL4-type connector cover plate or gland-nut cover plate for weatherizing applications. An externally accessible jumper allows for easy selection between passive or active operation. An optional 70.7/100-V transformer kit can be conveniently mounted to the input panel for use in distributed systems.

In summary, the Electro-Voice EVF-1122D/94 12" 2-Way 90 x 40 Full-Range Fiberglass Weatherized Black Loudspeaker System offers unparalleled flexibility and superior sound quality, making it a valuable addition to any professional audio setup.
