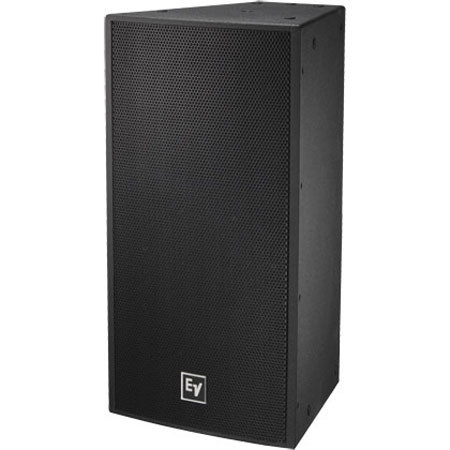

Electro-Voice EVF-1122D/94 12" 2-Way Full-range PI-Weatherized Loudspeaker, 8 Ohms Nominal Impedance, 97dB Sensitivity, 49-21000Hz, 90x40deg. Coverage, Single, Black

SKU: EVF1122D94PB MFR: F.01U.272.596
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • This durable PA speaker is weatherized for reliable outdoor sound reinforcement.
  • Achieve powerful audio with 400W continuous power handling for your PA system.
  • Enjoy wide sound coverage (90x40 degrees) for clear audio at any event.
  • Get versatile connectivity with Phoenix/Euroblock style screw terminals.
  • This portable PA speaker delivers high sensitivity (97dB) for clear audio.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice EVF-1122D/94PI Specifications

  • Frequency Response (-3 dB)

    57 - 18000 Hz

  • Frequency Response (-10 dB)

    49 - 21000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    97 dB

  • Max. SPL/1m (calc)

    131 dB

  • System Power Handling

    400 W continuous, 800 W program, 1600 W peak3

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) Hdeg.

    90 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    40 deg.

  • LF Transducer

    DVX3121A, 12" / 304.8mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    PI versions: 18 GA Stainless, Powdercoat, with hydrophobic cloth behind

  • Environmental

    PI versions: IEC 60529 IP55

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 768.60 x 406.4 x 413.25mm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/94PI

Be captivated by the superior sound quality of the Electro-Voice EVF-1122D/94 12" 2-Way Full-range PI-Weatherized Loudspeaker. This professional-grade audio equipment, encased in a durable black finish, is designed to deliver powerful, high-quality sound in a variety of environments.

Engineered with an 8 Ohms Nominal Impedance, this loudspeaker ensures reliable performance and consistent sound production. Its high sensitivity of 97dB guarantees clear and vibrant sound output, even at lower volume levels, making it an excellent choice for any audio setup.

The EVF-1122D/94 boasts a wide frequency range of 49-21000Hz, offering a broad spectrum of sound reproduction for the most authentic audio experience. Its unique 90x40 degree rotatable waveguide offers medium field medium throw coverage pattern, making it ideal for both indoor and outdoor events, live performances, and public address systems.

This weatherized loudspeaker is not only robust but also versatile, designed to withstand challenging weather conditions. Whether you're hosting a concert in an open-air venue or delivering a speech in a large auditorium, the Electro-Voice EVF-1122D/94 12" 2-Way Full-range PI-Weatherized Loudspeaker is your reliable partner for superior sound delivery.

Electro-Voice EVF-1122D/94PI Features

  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • This durable PA speaker is weatherized for reliable outdoor sound reinforcement.
  • Achieve powerful audio with 400W continuous power handling for your PA system.
  • Enjoy wide sound coverage (90x40 degrees) for clear audio at any event.
  • Get versatile connectivity with Phoenix/Euroblock style screw terminals.
  • This portable PA speaker delivers high sensitivity (97dB) for clear audio.

What's in the box:

  • Electro-Voice EVF-1122D/94 12 " 2-Way PI-Weatherized Loudspeaker
  • Dual-gland-nut Input-panel Cover
  • Electro-Voice 3 Year Limited Warranty
