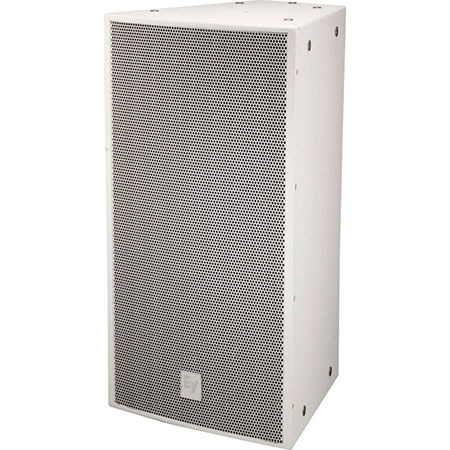

Telex EVF-1122D/94 12" 2-Way Full-range PI-Weatherized Loudspeaker, 8 Ohms Nominal Impedance, 97dB Sensitivity, 49-21000Hz, 90x40deg. Coverage, Single, White

SKU: EVF1122D94PW MFR: F.01U.272.597
Earn VIP Reward Points

Key Features

  • Experience superior sound with this 12" PA speaker, perfect for live sound.
  • This weatherized PA loudspeaker delivers crystal-clear audio, rain or shine!
  • Achieve powerful sound output with 400W continuous power handling PA speakers.
  • Enjoy wide 90x40 degree coverage, ensuring everyone hears the PA system clearly.
  • Built for durability, this PA speaker features a robust birch enclosure.
  • Ideal for permanent installations, this PA speaker offers versatile mounting options.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Telex EVF-1122D/94 Specifications

  • Frequency Response (-3 dB)

    57 - 18000 Hz

  • Frequency Response (-10 dB)

    49 - 21000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    97 dB

  • Max. SPL/1m (calc)

    131 dB

  • System Power Handling

    400 W continuous, 800 W program, 1600 W peak3

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals
    PI and FG versions include dual-gland-nut input-panel cover

  • Coverage (Nominal -6 dB) Hdeg.

    90 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    40 deg.

  • LF Transducer

    DVX3121A, 12" / 304.8mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    PI versions: 18 GA Stainless, Powdercoat, with hydrophobic cloth behind

  • Environmental

    PI versions: IEC 60529 IP55

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 768.60 x 406.4 x 413.25mm

  • Weight

    65.5lbs / 29.71kg

About Telex EVF-1122D/94

With the Electro-Voice EVF-1122D/94, experience unparalleled audio performance in any environment. This 12" 2-Way Full-range PI-Weatherized Loudspeaker is engineered to deliver high-quality sound with a 90x40 degree rotatable waveguide, ensuring precise medium-field, medium-throw coverage. Its durable white exterior not only adds a stylish touch to your space but is also built to withstand the rigors of outdoor elements, making it a reliable choice for both indoor and outdoor sound reinforcement.

Crafted by the renowned brand Telex, this loudspeaker boasts an impressive 97dB sensitivity, allowing for efficient sound projection that can fill a variety of venues, from concerts to live events. The broad frequency range of 49-21000Hz ensures that every note is captured with clarity and detail, while the 8 Ohms nominal impedance guarantees consistent performance.

The EVF-1122D/94 is designed for seamless integration into any professional audio setup. As an install speaker, it can be mounted on walls or ceilings, blending effortlessly into the architecture while providing powerful audio output. Whether you're outfitting a performance hall, a conference center, or an outdoor arena, this loudspeaker is an excellent choice for those who value durability, high-quality sound, and versatile features in their audio equipment.

Telex EVF-1122D/94 Features

  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Key Features

  • Experience superior sound with this 12" PA speaker, perfect for live sound.
  • This weatherized PA loudspeaker delivers crystal-clear audio, rain or shine!
  • Achieve powerful sound output with 400W continuous power handling PA speakers.
  • Enjoy wide 90x40 degree coverage, ensuring everyone hears the PA system clearly.
  • Built for durability, this PA speaker features a robust birch enclosure.
  • Ideal for permanent installations, this PA speaker offers versatile mounting options.

What's in the box:

  • Electro-Voice EVF-1122D/94 12 " 2-Way PI-Weatherized Loudspeaker
  • Dual-gland-nut Input-panel Cover
  • Electro-Voice 3 Year Warranty
