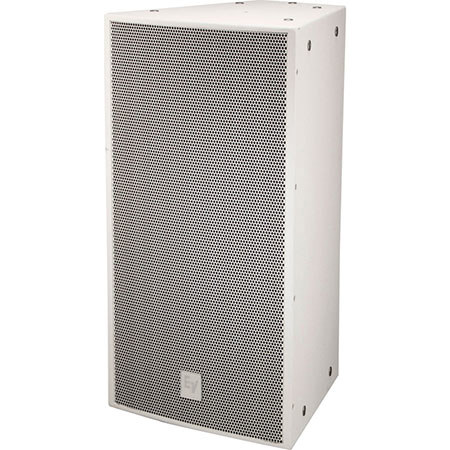

Electro-Voice EVF-1122D/96 12" 2-Way Full-range Loudspeaker, 8 Ohms Nominal Impedance, 97dB Sensitivity, 49-21000Hz Frequency, 90x60deg. Coverage, Single, White

SKU: EVF1122D96WH MFR: F.01U.272.599
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • This durable PA speaker delivers 400W continuous power for clear, powerful audio.
  • Achieve wide coverage with 90x60 degree dispersion, perfect for live sound venues.
  • Enjoy versatile connectivity with Phoenix/Euroblock style screw terminals included.
  • The rugged birch enclosure ensures long-lasting reliability for install speaker setups.
  • Optimize your sound system with a frequency response of 49-21000Hz for crisp audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/96 Specifications

  • Frequency Response (-3 dB)

    57 - 18000Hz

  • Frequency Response (-10 dB)

    49 - 21000Hz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    97 dB

  • Max. SPL/1m (calc)

    131 dB

  • System Power Handling

    400W continuous, 800W program, 1600W peak3

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) Hdeg.

    90 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    60 deg.

  • LF Transducer

    DVX3121A, 12" / 304.8mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Environmental

    Standard versions: IEC 60529 IP44

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 768.60 x 406.4 x 413.25mm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/96

Bring unparalleled audio performance to your live events, installations, or studio settings with the Electro-Voice EVF-1122D/96 12" 2-Way Full-range Loudspeaker. Crafted with meticulous attention to detail, this high-quality loudspeaker boasts a robust 8 Ohms nominal impedance and an impressive 97dB sensitivity, ensuring clear and powerful sound reproduction across a broad frequency range of 49-21000Hz.

The EVF-1122D/96 is designed to deliver exceptional sound quality with a precise 90x60 degree coverage pattern, thanks to its rotatable waveguide. This feature allows for flexible positioning and orientation, making it an efficient and reliable choice for medium-near field applications with a medium throw coverage requirement.

Constructed with durability in mind, the stylish white exterior of the loudspeaker not only complements any setting but also withstands the rigors of both indoor and outdoor use. The 2-way full-range capability of this speaker means it adeptly handles both low and high frequencies, offering a versatile solution for a variety of audio needs.

Whether you're amplifying live performances, enhancing the audio experience in fixed installations, or seeking pristine sound quality in recording studios, the Electro-Voice EVF-1122D/96 loudspeaker stands out as a top-tier choice. Its combination of Electro-Voice's reputable engineering, wide frequency response, and wide coverage angle ensures that it meets the demands of audio professionals seeking reliable and efficient sound solutions.

Incorporate the EVF-1122D/96 into your audio setup and experience the difference that a premium loudspeaker can make in delivering crisp, clear, and full-bodied sound to your audience.

Electro-Voice EVF-1122D/96 Features

  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • This durable PA speaker delivers 400W continuous power for clear, powerful audio.
  • Achieve wide coverage with 90x60 degree dispersion, perfect for live sound venues.
  • Enjoy versatile connectivity with Phoenix/Euroblock style screw terminals included.
  • The rugged birch enclosure ensures long-lasting reliability for install speaker setups.
  • Optimize your sound system with a frequency response of 49-21000Hz for crisp audio.

What's in the box:

  • Electro-Voice EVF-1122D/96 12 " 2-Way Full-range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
