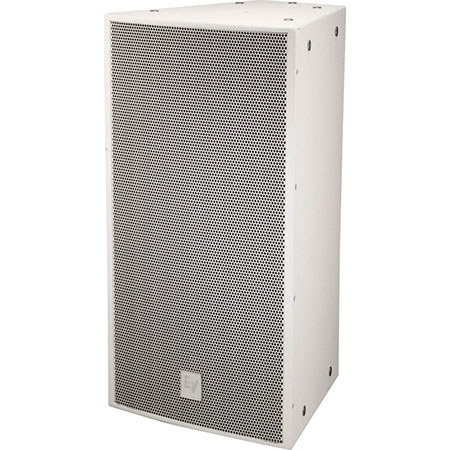

Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Fiberglass Weatherized Loudspeaker, 57Hz-18kHz, 97dB Sensitivity, 131dB SPL, 8 Ohms, Single, White

When it comes to delivering high-quality sound reinforcement in a compact, lightweight package, the Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Fiberglass Weatherized White Loudspeaker System stands out. This advanced, high-power loudspeaker system is designed by Electro-Voice, a brand renowned for its superior audio equipment.

The EVF-1122D/99 is equipped with the DH7N, a high-output 3" titanium compression driver, paired with a Constant Directivity 90-degree x 90-degree waveguide. This ensures a broad and consistent sound coverage. The system also features a DVX3121A 12" woofer, meticulously engineered using FEA optimization for motor, suspension, and electrical design. This results in minimal distortion, high efficiency, and maximum intelligibility even at high Sound Pressure Levels (SPL).

The crossover in this system employs steep, 24-dB-per-octave slopes with equalization, delivering a smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.

The EVF-1122D/99's robust trapezoidal enclosure is constructed of weather-resistant birch and coated with EVCoat for maximum protection from the elements, making it a reliable choice for outdoor events. Its unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series.

With seven horn patterns to choose from and an assortment of low-frequency and subwoofer loudspeakers, the EVF-1122D/99 offers maximum flexibility in system design, catering to a wide range of applications and budgets. The innovative input panel provides a choice of Phoenix style connector or the option to add a dual NL4-type connector cover plate or gland-nut cover plate for weatherizing applications.

An externally accessible jumper selects passive or active operation, and an optional 70.7/100-V transformer kit can be easily mounted to the input panel for use in distributed systems. This feature-rich, durable, and stylish loudspeaker system is designed to meet diverse customer requirements with fewer items in inventory, making it an ideal choice for sound reinforcement in concerts, live events, and installations.
