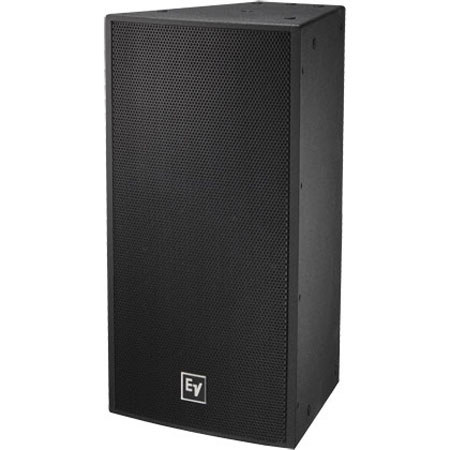

Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Weatherized Loudspeaker, 57Hz-18kHz Frequency Response, 97dB, 131dB SPL, 8 Ohms, Single, Black

SKU: EVF1122D99PB MFR: F.01U.272.604
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events and installations.
  • Achieve powerful audio projection with a peak SPL of 131dB for impactful sound.
  • Enjoy versatile connectivity with dual four-pin Phoenix/Euro Block terminals.
  • Durable birch enclosure ensures long-lasting performance for your sound system.
  • Get wide sound coverage with 90 x 90 degree rotatable coverage from this speaker.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/99PI Specifications

  • Frequency Response

    -3dB: 57Hz-18kHz
    -10dB: 49Hz-21kHz

  • Rotatable Coverage

    90 deg. x 90 deg.

  • Rec. High-Pass Frequency

    65Hz

  • Passive Crossover Frequency

    1300 Hz

  • Axial Sensitivity

    97dB (1 W/1 m)
    LF: 98dB (1 W/1 m)
    HF: 111dB (1 W/1 m)

  • SPL

    131dB (Max.)
    LF: 131dB (Max.)
    HF: 136dB (Max.)

  • Power Handling

    Passive: 600W continuous, 2400W peak
    LF: 500W continuous, 2000W peak
    HF: 75W continuous, 300W peak

  • Impedance

    8 Ohms (nominal), 6.0 Ohms (min.)
    LF: 8 Ohms (nominal), 7.2 Ohms (min.)
    HF: 8 Ohms (nominal), 6.0 Ohms (min.)

  • Connectors

    Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
    PI Version - CDG dual gland-nut input panelcover included

  • Enclosure

    13-ply weather-resistant birch with fiberglass finish

  • Grille

    16 GA powder-coated galvanneal with rotatable logo
    PI Version - Stainless steel with hydrophobic cloth

  • Environmental

    IEC 60529 IP55 for PI version

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    65.5lbs / 29.71kg

  • UPC Code

    00701001114481

About Electro-Voice EVF-1122D/99PI

The Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Weatherized Loudspeaker is a robust and versatile audio solution, engineered to deliver superior sound reinforcement in a diverse array of settings. This powerful loudspeaker system is ideal for professionals seeking high-quality audio performance in both indoor and outdoor environments, thanks to its weather-resistant construction.

Crafted with precision, the EVF-1122D/99 features the DH7N, an advanced 3" titanium compression driver, which is paired with a Constant Directivity 90° x 90° waveguide, ensuring consistent coverage and exceptional audio clarity. The DVX3121A 12" woofer is the result of meticulous FEA optimization, providing low distortion, high efficiency, and clear intelligibility even at high SPLs, which peaks at an impressive 131dB.

The sophisticated crossover design incorporates steep 24-dB-per-octave slopes with tailored equalization, delivering a smooth response across the vocal range, consistent off-axis performance, and a protection circuit that guarantees long-term reliability. The trapezoidal enclosure, made from weather-resistant birch and finished with EVCoat, offers maximum durability against the elements, making it a durable choice for demanding applications.

The EVF-1122D/99's acoustic and rigging design allows for flexible vertical and horizontal clustering with any combination of loudspeakers from the comprehensive EVF and EVH series. With seven selectable horn patterns and a range of low-frequency and subwoofer options, system design can be customized to meet the specific needs of any venue, ensuring optimal sound coverage and quality.

The innovative input panel is equipped with a Phoenix-style connector and offers the option to add a dual NL4-type connector cover plate or a gland-nut cover plate for enhanced weather protection. Users can easily switch between passive or active operation via an externally accessible jumper. For distributed systems, an optional 70.7/100-V transformer kit can be mounted to the input panel, adding to the loudspeaker's versatility.

In summary, the Electro-Voice EVF-1122D/99 is a high-performance, weather-resistant loudspeaker that provides powerful, reliable, and high-quality sound. Its comprehensive design and flexible mounting options make it an excellent choice for a wide range of professional audio applications.

Electro-Voice EVF-1122D/99PI Features

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events and installations.
  • Achieve powerful audio projection with a peak SPL of 131dB for impactful sound.
  • Enjoy versatile connectivity with dual four-pin Phoenix/Euro Block terminals.
  • Durable birch enclosure ensures long-lasting performance for your sound system.
  • Get wide sound coverage with 90 x 90 degree rotatable coverage from this speaker.

What's in the box:

  • Electro-Voice EVF-1122D/99 12 " 2-Way 90 x 90 Weatherized Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
