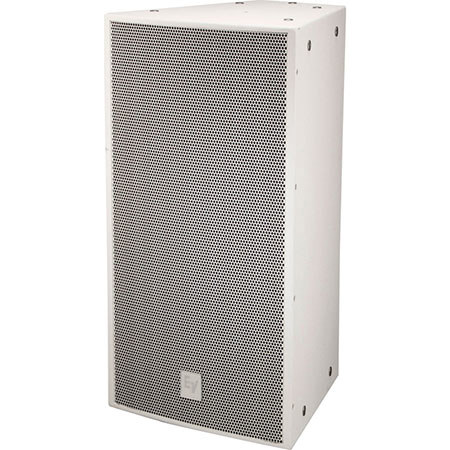

Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Evcoat Loudspeaker, 57Hz-18kHz Frequency Response, 97dB, 131dB SPL, 8 Ohms, Single, White

Take your audio experience to the next level with the Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Evcoat White Loudspeaker System. This high-power, compact, and lightweight loudspeaker system is designed to deliver superior sound reinforcement in a variety of settings.

Engineered with the high-output DH7N, a 3" titanium compression driver, this system ensures exceptional sound quality. The driver is coupled to a Constant Directivity 90-degree x 90-degree waveguide, providing consistent sound dispersion for an immersive audio experience.

The heart of this system is the DVX3121A 12" woofer, meticulously developed using Finite Element Analysis (FEA) optimization. This ensures low distortion, high efficiency, and maximum intelligibility even at high Sound Pressure Levels (SPL).

The EVF-1122D/99's crossover uses steep, 24-dB-per-octave slopes with equalization, delivering a smooth response in the vocal range and linear off-axis response. This, coupled with a protection circuit, guarantees long-term reliability and performance.

Constructed of weather-resistant birch and coated with Evcoat, the trapezoidal enclosure of this loudspeaker system offers maximum protection from the elements. Its unique acoustic and rigging design allows for versatile vertical and horizontal clusters, using any combination of loudspeakers from the entire EVF and EVH series.

With seven horn patterns to choose from and an assortment of low-frequency and subwoofer loudspeakers, the EVF-1122D/99 provides the tools to maximize system design flexibility, catering to a wide range of applications and budgets.

The innovative input panel offers a choice of Phoenix style connector or the option to add a dual NL4-type connector cover plate or gland-nut cover plate for weatherizing applications. An externally accessible jumper selects passive or active operation, and an optional 70.7/100-V transformer kit can be easily mounted to the input panel for use in distributed systems.

In summary, the Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Evcoat White Loudspeaker System is a versatile, high-quality audio solution, designed to meet diverse customer requirements with fewer items in inventory.
