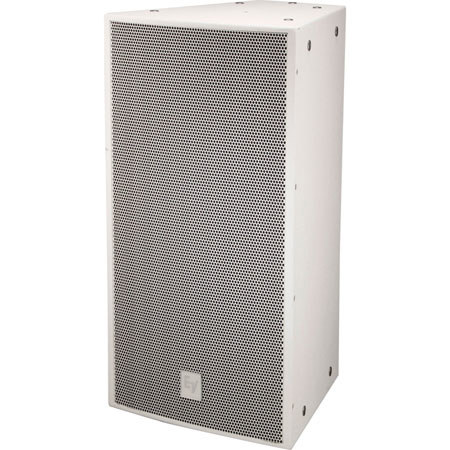

Electro-Voice EVF-1122S 126 12" Two-Way Full-Range Loudspeaker, 120x60deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, White

SKU: EVF1122S126W MFR: F.01U.272.515
Earn VIP Reward Points

Key Features

  • Experience superior sound with this Electro-Voice 12" PA speaker, perfect for live sound.
  • Achieve crystal-clear audio with a wide 120x60 degree coverage, ideal for venues.
  • This durable PA speaker features a weather-resistant birch enclosure, built to last.
  • Enjoy high power handling, up to 2000W peak, ensuring robust performance for any event.
  • The EVF-1122S offers exceptional 98dB sensitivity, delivering powerful, clear sound.
  • Versatile and reliable, this passive PA speaker is great for bands, DJs, and events.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice EVF-1122S 126 Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 120 deg.
    V: 60 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 126

If you're seeking superior sound performance and versatility, look no further than the EVF-1122S 126 12" Two-Way Full-Range White Loudspeaker. Crafted by the renowned audio equipment manufacturer, Electro-Voice, this high-quality loudspeaker is designed to deliver exceptional audio clarity and coverage.

Constructed from weather-resistant birch and fortified with a robust EVCoat, this durable loudspeaker is built to withstand the elements, making it an ideal choice for both indoor and outdoor audio setups. Its unique acoustic and rigging designs offer the flexibility to create vertical and horizontal clusters using any combination of loudspeakers, making it a versatile addition to any professional audio system.

This innovative loudspeaker boasts a wide 120x60deg coverage pattern, ensuring clear and balanced sound distribution over a large area. With a sensitivity of 98dB and an impedance of 8 Ohms, it guarantees reliable performance and superior sound quality.

The EVF-1122S 126 also features an assortment of full-range, low-frequency, and subwoofer loudspeakers, providing the tools you need to tailor your system design to any application or budget. Its innovative input panels offer the choice of Phoenix-type connectors, or the easy addition of a dual NL4-type connector cover plate or gland nut cover plate for weatherizing applications.

An externally accessible jumper allows for the selection of passive or active operation, and an available 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems. These features enhance the flexibility of the loudspeaker, enabling it to cater to more venues with less equipment, while quickly and precisely meeting customer requirements.

In summary, the EVF-1122S 126 12" Two-Way Full-Range White Loudspeaker is a testament to Electro-Voice's commitment to quality, durability, and innovation in audio equipment design.

Electro-Voice EVF-1122S 126 Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound with this Electro-Voice 12" PA speaker, perfect for live sound.
  • Achieve crystal-clear audio with a wide 120x60 degree coverage, ideal for venues.
  • This durable PA speaker features a weather-resistant birch enclosure, built to last.
  • Enjoy high power handling, up to 2000W peak, ensuring robust performance for any event.
  • The EVF-1122S offers exceptional 98dB sensitivity, delivering powerful, clear sound.
  • Versatile and reliable, this passive PA speaker is great for bands, DJs, and events.

What's in the box:

  • Electro-Voice EVF-1122S 126 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
