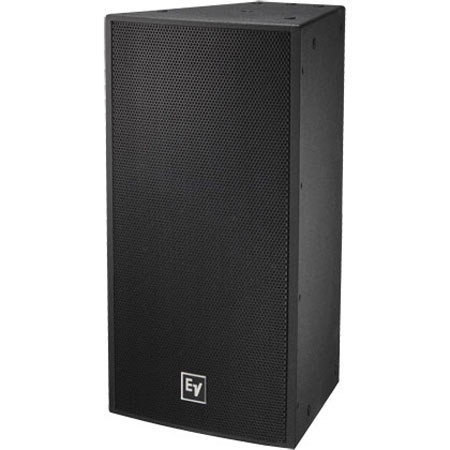

Electro-Voice EVF-1122S 64 Two-Way Full-Range Loudspeaker, 60x40 deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, Black

SKU: EVF1122S64BK MFR: F.01U.272.494
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 500W Electro-Voice PA speaker for clear audio.
  • Achieve wide coverage with the 60x40 degree pattern, perfect for live sound venues.
  • Enjoy durable performance with weather-resistant birch enclosure, built to last for years.
  • This 12" PA speaker delivers high sensitivity at 98dB, ensuring excellent clarity.
  • Get versatile connectivity with Phoenix/Euroblock inputs for easy PA system integration.
  • The robust design and high power handling make it ideal for demanding audio applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 64 Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 60 deg.
    V: 40 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 64

Explore the dynamic capabilities of the EVF-1122S 64 Two-Way Full-Range Black Loudspeaker, a premium audio equipment designed by the renowned brand, Electro-Voice. Crafted from weather-resistant birch and fortified with a protective EVCoat, this loudspeaker is engineered to withstand the elements, making it a reliable choice for both indoor and outdoor sound reinforcement applications.

Experience the unique acoustic and rigging designs of the EVF series, which allow for the construction of vertical and horizontal clusters using any combination of loudspeakers. This feature offers unparalleled flexibility in system design, catering to a wide range of applications and budgets.

The EVF-1122S 64 is not just a full-range loudspeaker, but also a powerful tool that can be paired with low-frequency and subwoofer loudspeakers to create a comprehensive sound system. Its impressive 60x40 degree coverage pattern ensures effective sound distribution, making it an ideal choice for large venues and outdoor events.

Innovation meets convenience with EVF's input panels, offering the choice of Phoenix-type connectors for easy integration. For those seeking weatherizing applications, the addition of a dual NL4-type connector cover plate or gland nut cover plate is effortless. An externally accessible jumper further enhances its functionality, allowing for the selection of passive or active operation.

For distributed systems, an available 70.7/100V transformer kit can be easily mounted to the input panel. This feature, along with others, underscores the EVF-1122S 64's ability to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

Experience the power, quality, and versatility of the EVF-1122S 64 Two-Way Full-Range Black Loudspeaker, a testament to Electro-Voice's commitment to delivering high-quality audio solutions.

Electro-Voice EVF-1122S 64 Features

  • Coverage Patterns: 60x40,Constant Directivity 12-inch Rotatable Waveguide
  • EN54-24 type B certification 1438/CPR/0283

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful sound with this 500W Electro-Voice PA speaker for clear audio.
  • Achieve wide coverage with the 60x40 degree pattern, perfect for live sound venues.
  • Enjoy durable performance with weather-resistant birch enclosure, built to last for years.
  • This 12" PA speaker delivers high sensitivity at 98dB, ensuring excellent clarity.
  • Get versatile connectivity with Phoenix/Euroblock inputs for easy PA system integration.
  • The robust design and high power handling make it ideal for demanding audio applications.

What's in the box:

  • Electro-Voice EVF-1122S 64 Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
