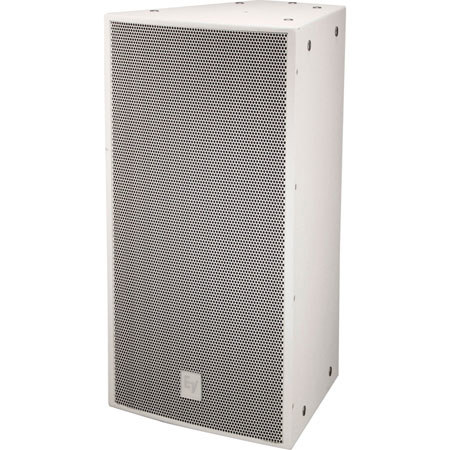

Electro-Voice EVF-1122S 64 Two-Way Full-Range Loudspeaker, Single, 60x40 deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Pi-Weatherized, White

SKU: EVF1122S64PW MFR: F.01U.272.497
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve optimal audio coverage with the 60x40 degree dispersion pattern PA speaker.
  • This durable PA speaker is weatherized for reliable outdoor live sound use.
  • Enjoy high sensitivity (98dB) & powerful output from this 500W PA loudspeaker.
  • Perfect for installations, this 8 Ohms impedance speaker ensures seamless connectivity.
  • The 12" driver delivers crystal-clear audio for professional PA systems & setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 64PI Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 60 deg.
    V: 40 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 64PI

Because of its superior construction and innovative design, the EVF-1122S 64 Two-Way Full-Range White Pi-Weatherized Loudspeaker stands out in the realm of professional audio equipment. Crafted from durable, weather-resistant birch and fortified with a protective EVCoat, this loudspeaker is engineered to withstand the elements, making it an ideal choice for both indoor and outdoor events.

The unique acoustic and rigging design of this Electro-Voice loudspeaker allows for the creation of vertical and horizontal clusters using any combination of loudspeakers. This versatility, coupled with an array of full-range, low-frequency, and subwoofer loudspeakers, empowers you with the tools to optimize system design flexibility, regardless of the application or budget constraints.

The EVF-1122S 64 is equipped with innovative input panels that offer the choice of Phoenix-type connectors. Additionally, it allows for the effortless addition of a dual NL4-type connector cover plate or a gland nut cover plate, enhancing its suitability for weatherizing applications. An externally accessible jumper facilitates the selection between passive or active operation, while an optional 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.

With a high sensitivity of 98dB and an impedance of 8 ohms, this loudspeaker is capable of handling a wide range of sound levels, producing clear, high-fidelity sound. Its 60x40 degree coverage pattern ensures wide sound dispersion, making it suitable for various venues and settings.

In essence, the EVF-1122S 64 Two-Way Full-Range White Pi-Weatherized Loudspeaker offers the flexibility to manage more venues with less equipment, while swiftly and accurately addressing customer requirements. This makes it a reliable and efficient choice for professionals seeking high-quality audio performance.

Electro-Voice EVF-1122S 64PI Features

  • Coverage Patterns: 60x40,Constant Directivity 12-inch Rotatable Waveguide
  • EN54-24 type B certification 1438/CPR/0283
  • PI Versions are Standard with Gland Nut Grille

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve optimal audio coverage with the 60x40 degree dispersion pattern PA speaker.
  • This durable PA speaker is weatherized for reliable outdoor live sound use.
  • Enjoy high sensitivity (98dB) & powerful output from this 500W PA loudspeaker.
  • Perfect for installations, this 8 Ohms impedance speaker ensures seamless connectivity.
  • The 12" driver delivers crystal-clear audio for professional PA systems & setups.

What's in the box:

  • Electro-Voice EVF-1122S 64 Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
