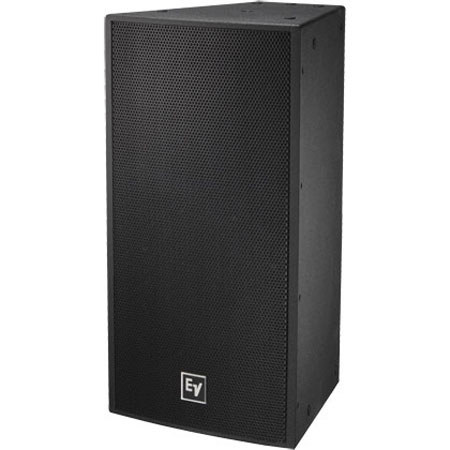

Electro-Voice EVF-1122S 66 12" Two-Way Full-Range Loudspeaker, 60x60deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, Black

SKU: EVF1122S66BK MFR: F.01U.272.498
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 12" Electro-Voice PA speaker for crystal-clear audio.
  • This durable PA speaker is perfect for live sound, delivering exceptional performance every time.
  • Enjoy wide, 60x60 degree coverage, ensuring everyone hears the high-quality sound from this speaker.
  • With 500W continuous power, this PA speaker handles any event, from small gigs to large venues.
  • The rugged EVCoat finish and birch enclosure ensure this speaker withstands tough conditions.
  • Achieve optimal sound with a frequency response of 58-16000 Hz, ideal for various audio needs.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 66 Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 60 deg.
    V: 60 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 66

Explore the sophisticated design and acoustic excellence of the EVF-1122S 66 12" Two-Way Full-Range Loudspeaker, a premium audio solution crafted for professional live sound reinforcement. This stylish and durable loudspeaker is engineered with a robust weather-resistant birch plywood construction, ensuring it stands up to the rigors of on-the-road wear and tear. The exterior is finished with EVCoat, Electro-Voice's proprietary coating that offers maximum protection against the elements, making it a reliable choice for both indoor and outdoor events.

The EVF-1122S 66 boasts a powerful 60x60-degree coverage pattern, delivering consistent and high-quality audio performance across a wide listening area. With a sensitivity of 98dB and an impedance of 8 Ohms, this loudspeaker is designed to produce clear, powerful sound at high volumes without distortion, ensuring your audience experiences every note with clarity and impact.

The versatility of the EVF series is unmatched, with its unique acoustic and rigging designs that allow for the creation of vertical and horizontal clusters using any combination of loudspeakers. Whether you're setting up for a concert, festival, or DJ set, the EVF-1122S 66 can be integrated seamlessly into a tailored sound system that meets the specific needs of any venue or event.

Electro-Voice's innovative input panels enhance the functionality of this loudspeaker, offering the choice between Phoenix-type connectors and the option to add a dual NL4-type connector cover plate or gland nut cover plate for weatherized applications. An externally accessible jumper allows for easy selection between passive or active operation, and for those requiring a distributed system, an available 70.7/100V transformer kit can be conveniently mounted to the input panel.

The EVF-1122S 66 is not just a loudspeaker; it's a comprehensive audio solution that provides system designers and audio professionals with the tools to maximize system flexibility, no matter the application or budget. With fewer pieces of equipment needed to manage more venues, this loudspeaker is a testament to Electro-Voice's commitment to innovation, quality, and the art of sound engineering.

Electro-Voice EVF-1122S 66 Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful sound with this 12" Electro-Voice PA speaker for crystal-clear audio.
  • This durable PA speaker is perfect for live sound, delivering exceptional performance every time.
  • Enjoy wide, 60x60 degree coverage, ensuring everyone hears the high-quality sound from this speaker.
  • With 500W continuous power, this PA speaker handles any event, from small gigs to large venues.
  • The rugged EVCoat finish and birch enclosure ensure this speaker withstands tough conditions.
  • Achieve optimal sound with a frequency response of 58-16000 Hz, ideal for various audio needs.

What's in the box:

  • Electro-Voice EVF-1122S 66 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
