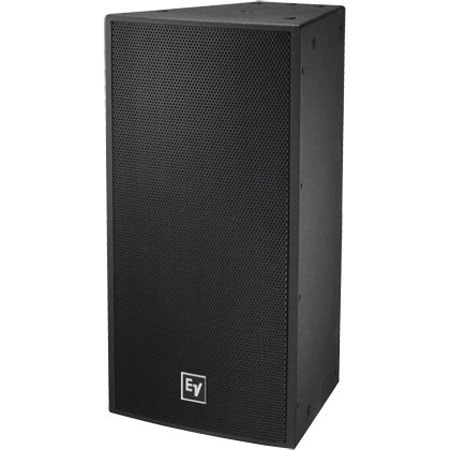

Electro-Voice EVF-1122S/66 12" 2-Way 60 x 60 Full-Range Fiberglass Loudspeaker, 58Hz-16kHz, 98dB Sensitivity, 131dB SPL, 8 Ohms, Single, Black

SKU: EVF1122S66FB MFR: F.01U.272.913
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • This durable PA speaker delivers powerful output for live sound and installations.
  • Achieve optimal coverage with the 60 x 60 degree dispersion of this PA loudspeaker.
  • With 500W continuous power, this PA speaker ensures reliable performance every time.
  • The rugged fiberglass enclosure makes this PA speaker ideal for demanding environments.
  • Enjoy high sensitivity and SPL for clear, impactful audio with this PA speaker system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S/66FB Specifications

  • Environmental Specs

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3dB: 58Hz-16kHz
    -10dB: 49Hz-19kHz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB) H

    60 deg.

  • Coverage (Nominal -6 dB) V

    60 deg.

  • System Power Handling

    Continuous/Program/Peak: 500/1000/2000W

  • LF Transducer

    SMX2121, 12" / 304.8mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm) Diaphragm Compression Driver

  • Crossover Frequency

    1450 Hz

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    63.05lbs / 28.6kg

About Electro-Voice EVF-1122S/66FB

Before you delve into the world of high-quality audio equipment, consider the Electro-Voice EVF-1122S/66 12" 2-Way 60 x 60 Full-Range Fiberglass Black Loudspeaker. This premium loudspeaker is meticulously crafted from weather-resistant birch and fortified with EVCoat, ensuring maximum protection from environmental elements.

The EVF-1122S/66 is not just a loudspeaker; it's a versatile audio solution. Its unique acoustic and rigging designs facilitate the construction of both vertical and horizontal clusters, using any combination of loudspeakers. This flexibility allows for the creation of customized audio setups tailored to any application or budget, making it an ideal choice for both professional and home audio enthusiasts.

This full-range loudspeaker boasts an impressive frequency range of 58Hz-16kHz, a sensitivity of 98dB, and a maximum sound pressure level (SPL) of 131dB. With an impedance of 8 Ohms, it ensures efficient power usage and excellent sound quality.

The EVF-1122S/66 also features innovative input panels that offer the choice of Phoenix-type connectors, included in all standard models. For those seeking additional customization, it allows for the easy addition of a dual NL4-type connector cover plate or gland nut cover plate, perfect for weatherizing applications.

An externally accessible jumper further enhances the loudspeaker's versatility by allowing for the selection of passive or active operation. For those requiring use in distributed systems, an available 70.7/100V transformer kit can be conveniently mounted to the input panel.

In summary, the Electro-Voice EVF-1122S/66 12" 2-Way 60 x 60 Full-Range Fiberglass Black Loudspeaker offers the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements. It's more than just a loudspeaker; it's a comprehensive solution for superior audio performance.

Electro-Voice EVF-1122S/66FB Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • This durable PA speaker delivers powerful output for live sound and installations.
  • Achieve optimal coverage with the 60 x 60 degree dispersion of this PA loudspeaker.
  • With 500W continuous power, this PA speaker ensures reliable performance every time.
  • The rugged fiberglass enclosure makes this PA speaker ideal for demanding environments.
  • Enjoy high sensitivity and SPL for clear, impactful audio with this PA speaker system.

What's in the box:

  • Electro-Voice EVF-1122S/66 12 " 2-Way 60 x 60 Full-Range Fiberglass Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
