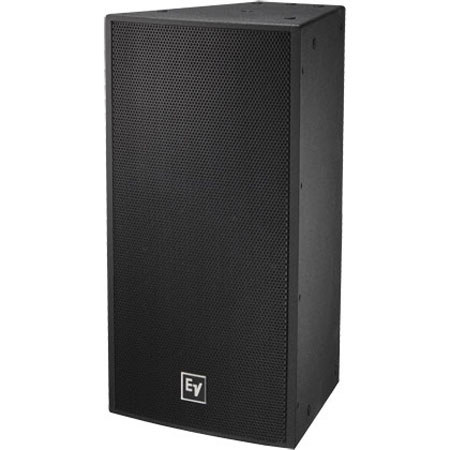

Electro-Voice EVF-1122S/94 12" 2-Way 90 x 40 Full-Range Fiberglass Loudspeaker, 58Hz-16kHz, 98dB Sensitivity, 131dB SPL, 8 Ohms, Single, Black

SKU: EVF1122S94FB MFR: F.01U.272.915
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range PA loudspeaker.
  • This durable PA speaker is ideal for permanent installations, indoors or outdoors.
  • Get pristine audio with a wide 90x40 coverage, perfect for live sound reinforcement.
  • Boasting 500W continuous power, this PA system ensures robust performance every time.
  • Enjoy flexible connectivity with Phoenix/Euroblock inputs on this PA loudspeaker.
  • Weather-resistant birch enclosure ensures long-lasting durability for your PA speakers.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S/94FB Specifications

  • Environmental Specs

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3dB: 58Hz-16kHz
    -10dB: 49Hz-19kHz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    40 deg.

  • System Power Handling

    Continuous/Program/Peak: 500/1000/2000W

  • LF Transducer

    SMX2121, 12" / 304.8mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm) Diaphragm Compression Driver

  • Crossover Frequency

    1450 Hz

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    63.05lbs / 28.6kg

About Electro-Voice EVF-1122S/94FB

Discover the Electro-Voice EVF-1122S/94, a 12" 2-Way 90 x 40 Full-Range Fiberglass Loudspeaker, engineered to deliver powerful and high-quality audio performance. This robust loudspeaker is meticulously crafted from weather-resistant birch plywood and finished with the durable EVCoat, ensuring it stands up to the most challenging outdoor environments without compromising sound integrity.

The EVF-1122S/94 boasts a wide frequency response of 58Hz-16kHz, paired with an impressive sensitivity of 98dB, allowing for clear and precise sound reproduction across a broad range of tones. With a maximum SPL of 131dB, this loudspeaker is capable of producing high-volume sound with minimal distortion, making it an ideal choice for professional live performances and events.

Designed with versatility in mind, the EVF-1122S/94 features a unique acoustic structure and rigging options, enabling both vertical and horizontal clustering with a variety of loudspeakers. This flexibility allows for tailored audio solutions to suit any application, regardless of the venue size or acoustic demands.

The innovative input panel of the EVF-1122S/94 is equipped with Phoenix-type connectors as standard, while also accommodating the addition of dual NL4-type connector cover plates or gland nut cover plates, enhancing its suitability for weatherized applications. An externally accessible jumper provides the option for passive or active operation, and for distributed systems, an optional 70.7/100V transformer kit can be easily mounted to the input panel.

This stylish and reliable loudspeaker is not just a testament to Electro-Voice's commitment to quality audio equipment but also a testament to the brand's understanding of the needs of audio professionals. The EVF-1122S/94 is a powerful, flexible, and durable audio solution that ensures exceptional performance for any live sound reinforcement scenario.

Electro-Voice EVF-1122S/94FB Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range PA loudspeaker.
  • This durable PA speaker is ideal for permanent installations, indoors or outdoors.
  • Get pristine audio with a wide 90x40 coverage, perfect for live sound reinforcement.
  • Boasting 500W continuous power, this PA system ensures robust performance every time.
  • Enjoy flexible connectivity with Phoenix/Euroblock inputs on this PA loudspeaker.
  • Weather-resistant birch enclosure ensures long-lasting durability for your PA speakers.

What's in the box:

  • Electro-Voice EVF-1122S/94 12 " 2-Way 90 x 40 Full-Range Fiberglass Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
