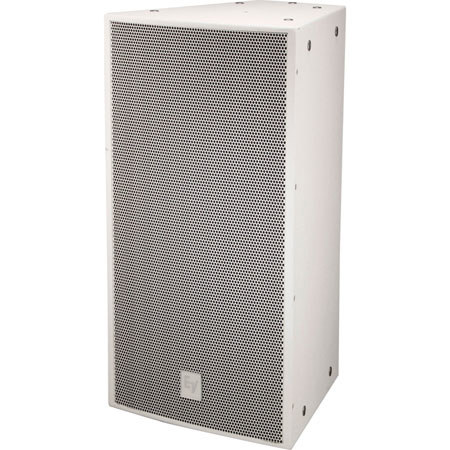

Electro-Voice EVF-1122S/94 12" 2-Way 90 x 40 Full-Range Fiberglass Loudspeaker, 58Hz-16kHz, 98dB Sensitivity, 131dB SPL, 8 Ohms, Single, White

SKU: EVF1122S94FW MFR: F.01U.272.916
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve powerful audio projection with a peak power handling of 2000W for live sound.
  • Enjoy wide sound dispersion (90 x 40) for consistent coverage at your venue.
  • Durable fiberglass enclosure ensures long-lasting performance, indoors or out.
  • This PA speaker's 98dB sensitivity delivers clear audio, even at high volumes.
  • Install with ease using M10 threaded points, perfect for permanent sound systems.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S/94FB Specifications

  • Environmental Specs

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3dB: 58Hz-16kHz
    -10dB: 49Hz-19kHz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    40 deg.

  • System Power Handling

    Continuous/Program/Peak: 500/1000/2000W

  • LF Transducer

    SMX2121, 12" / 304.8mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm) Diaphragm Compression Driver

  • Crossover Frequency

    1450 Hz

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    63.05lbs / 28.6kg

About Electro-Voice EVF-1122S/94FB

Are you seeking a professional-grade, full-range loudspeaker that delivers exceptional audio performance in any weather Look no further than the Electro-Voice EVF-1122S/94 12" 2-Way 90 x 40 Full-Range Fiberglass Loudspeaker. This high-quality, durable speaker is engineered to meet the rigorous demands of live performances and events, ensuring reliable, efficient sound reproduction.

Crafted with a robust, weather-resistant birch plywood enclosure and safeguarded by EVCoat, this stylish white loudspeaker is designed to withstand the elements, making it an ideal choice for both indoor and outdoor venues. Its high sensitivity of 98dB and impressive maximum SPL of 131dB guarantee powerful, clear audio that can fill any space, from intimate gatherings to large-scale concerts.

The EVF-1122S/94 boasts a broad frequency response range of 58Hz to 16kHz, ensuring that every note is captured with clarity and precision. The 2-way full-range design allows for accurate reproduction of both low and high frequencies, making it a versatile addition to any professional sound system.

Innovative acoustic and rigging designs enable the creation of vertical and horizontal clusters, offering unparalleled flexibility in speaker arrangement. This feature, combined with a variety of compatible full-range, low-frequency, and subwoofer loudspeakers, provides the tools necessary to tailor system design to any application and budget.

The loudspeaker's input panels are designed for versatility, featuring Phoenix-type connectors for secure connections. For those requiring additional weatherproofing or alternative connection options, the panels allow for the easy installation of a dual NL4-type connector cover plate or a gland nut cover plate. An externally accessible jumper gives you the choice between passive or bi-amp operation, while an optional 70.7/100V transformer kit can be mounted directly to the input panel for distributed system applications.

With the Electro-Voice EVF-1122S/94, you have the flexibility to manage a wider range of venues with fewer pieces of equipment, streamlining your setup and quickly adapting to the specific needs of each event. Elevate your audio experience with this reliable, high-performance loudspeaker that stands as a testament to Electro-Voice's commitment to audio excellence.

Electro-Voice EVF-1122S/94FB Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve powerful audio projection with a peak power handling of 2000W for live sound.
  • Enjoy wide sound dispersion (90 x 40) for consistent coverage at your venue.
  • Durable fiberglass enclosure ensures long-lasting performance, indoors or out.
  • This PA speaker's 98dB sensitivity delivers clear audio, even at high volumes.
  • Install with ease using M10 threaded points, perfect for permanent sound systems.

What's in the box:

  • Electro-Voice EVF-1122S/94 12 " 2-Way 90 x 40 Full-Range Fiberglass Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
