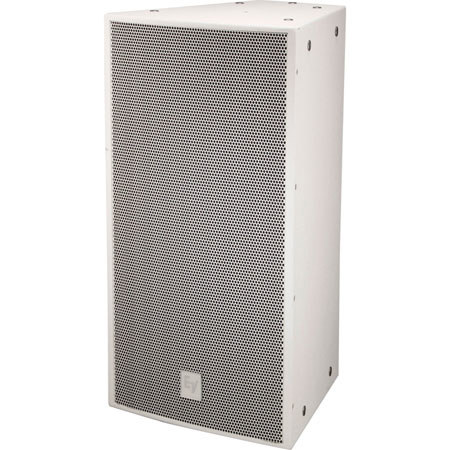

Electro-Voice EVF-1122S 94 12" Two-Way Full-Range Loudspeaker, 90x40deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, Pi-Weatherized, White

SKU: EVF1122S94PW MFR: F.01U.272.505
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Electro-Voice 12" PA speaker, perfect for live sound.
  • Achieve superior sound coverage with the 90x40 degree dispersion of this full-range speaker.
  • This durable PA speaker is weather-resistant, ensuring reliable performance in any environment.
  • Enjoy high sensitivity (98dB) for powerful sound projection with this 500W continuous speaker.
  • The robust birch enclosure and galvanized grill offer lasting durability for your PA system.
  • Get exceptional clarity with the 2" diaphragm compression driver in this PA loudspeaker.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice EVF-1122S 94PI Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 90 deg.
    V: 40 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 94PI

Enhance your live sound experience with the EVF-1122S 94 12" Two-Way Full-Range Loudspeaker, a professional-grade audio solution designed to deliver high-quality, powerful sound across a wide coverage area. This loudspeaker boasts a precise 90x40-degree coverage pattern, ensuring that every corner of your venue is enveloped in clear, rich audio. With a remarkable sensitivity of 98dB, the EVF-1122S 94 efficiently translates power into sound, providing exceptional clarity even at lower volumes, making it an ideal choice for both indoor and outdoor events.

Crafted from robust, weather-resistant birch and finished with the industry-renowned EVCoat, this loudspeaker is engineered to withstand the rigors of outdoor performances and challenging weather conditions, ensuring reliable performance time after time. The Pi-Weatherized design further enhances its durability, offering peace of mind when using the speaker in various environments.

The versatility of the EVF series is exemplified in the EVF-1122S 94's advanced acoustic and rigging design, which allows for seamless integration into vertical and horizontal clusters, utilizing any combination of loudspeakers from the series. This flexibility is perfect for customizing sound setups to meet the unique demands of any live sound application, from concerts and festivals to corporate events and outdoor gatherings.

Integration and connectivity are made simple with the innovative input panels of the EVF-1122S 94. Users can choose between Phoenix-type connectors or upgrade to a dual NL4-type connector cover plate or gland nut cover plate for enhanced weather protection. An externally accessible jumper provides the option for passive or bi-amped operation, and for venues requiring distributed sound systems, an optional 70.7/100V transformer kit can be easily mounted to the input panel.

The EVF-1122S 94 is more than just a loudspeaker; it's a comprehensive audio solution that offers the flexibility and performance needed to manage a wide range of venues with fewer pieces of equipment. Its professional-grade construction, combined with its powerful and reliable output, makes it a top contender for audio professionals seeking a durable and high-performing loudspeaker system.

Electro-Voice EVF-1122S 94PI Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience pristine audio with this Electro-Voice 12" PA speaker, perfect for live sound.
  • Achieve superior sound coverage with the 90x40 degree dispersion of this full-range speaker.
  • This durable PA speaker is weather-resistant, ensuring reliable performance in any environment.
  • Enjoy high sensitivity (98dB) for powerful sound projection with this 500W continuous speaker.
  • The robust birch enclosure and galvanized grill offer lasting durability for your PA system.
  • Get exceptional clarity with the 2" diaphragm compression driver in this PA loudspeaker.

What's in the box:

  • Electro-Voice EVF-1122S 94 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
