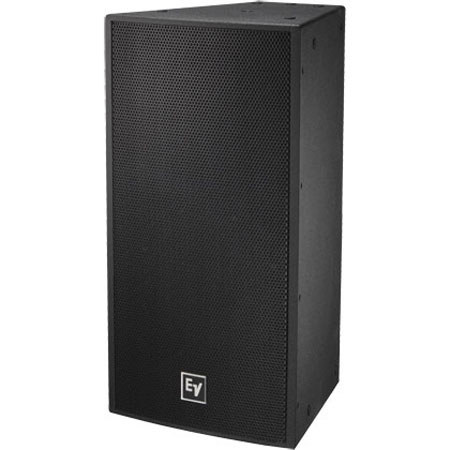

Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Full-Range Fiberglass Loudspeaker, 58Hz-16kHz, 98dB Sensitivity, 131dB SPL, 8 Ohms, Single, Black

SKU: EVF1122S96FB MFR: F.01U.272.917
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve powerful audio projection with a peak power handling of up to 2000W for live sound.
  • Enjoy wide sound dispersion with 90 x 60 degree coverage, perfect for PA systems.
  • Durable fiberglass enclosure ensures long-lasting performance, ideal for install speakers.
  • Flexible connectivity with Phoenix/Euroblock inputs for easy integration into your setup.
  • Weather-resistant design makes it suitable for various environments and audio applications.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S/96FB Specifications

  • Environmental Specs

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3dB: 58Hz-16kHz
    -10dB: 49Hz-19kHz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    60 deg.

  • System Power Handling

    Continuous/Program/Peak: 500/1000/2000W

  • LF Transducer

    SMX2121, 12" / 304.8mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm) Diaphragm Compression Driver

  • Crossover Frequency

    1450 Hz

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with Rotatable Logo

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    63.05lbs / 28.6kg

  • UPC Code

    00800549301503

About Electro-Voice EVF-1122S/96FB

With the Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Full-Range Fiberglass Black Loudspeaker, you get a high-performance audio solution that's built to withstand the elements. This robust loudspeaker is crafted from weather-resistant birch and features a protective EVCoat coating, ensuring its durability and longevity.

This versatile loudspeaker boasts unique acoustic and rigging designs, enabling the construction of vertical and horizontal clusters using any combination of loudspeakers. This flexibility allows for the creation of custom audio setups tailored to any application or budget.

The EVF-1122S/96 is not just a full-range loudspeaker; it's part of a comprehensive audio system. It's compatible with an array of full-range, low-frequency, and subwoofer loudspeakers, providing you with the tools to design a sound system that meets your specific needs.

Innovation extends to the input panels of this loudspeaker. They come with Phoenix-type connectors as standard, but also allow for the easy addition of a dual NL4-type connector cover plate or gland nut cover plate. This feature is particularly useful for weatherizing applications, ensuring your equipment remains protected in outdoor settings.

To further enhance its versatility, this loudspeaker features an externally accessible jumper for selecting passive or active operation. Additionally, an optional 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.

In summary, the Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Full-Range Fiberglass Black Loudspeaker offers the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements. It's a testament to Electro-Voice's commitment to delivering high-quality, adaptable, and durable audio solutions.

Electro-Voice EVF-1122S/96FB Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve powerful audio projection with a peak power handling of up to 2000W for live sound.
  • Enjoy wide sound dispersion with 90 x 60 degree coverage, perfect for PA systems.
  • Durable fiberglass enclosure ensures long-lasting performance, ideal for install speakers.
  • Flexible connectivity with Phoenix/Euroblock inputs for easy integration into your setup.
  • Weather-resistant design makes it suitable for various environments and audio applications.

What's in the box:

  • Electro-Voice EVF-1122S/96 12 " 2-Way 90 x 60 Full-Range Fiberglass Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
