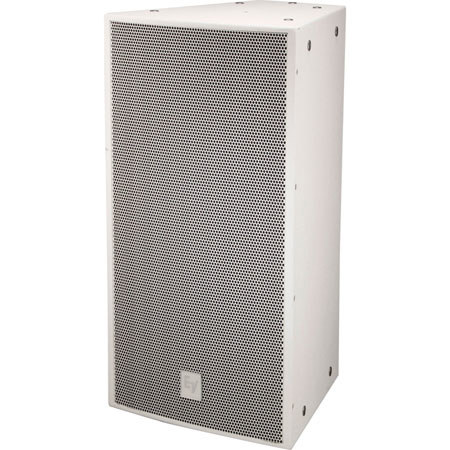

Electro-Voice EVF-1122S 96 12" Two-Way Full-Range Loudspeaker, 90x60deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, Pi-Weatherized, White

SKU: EVF1122S96PW MFR: F.01U.272.509
Earn VIP Reward Points

Key Features

  • Experience exceptional sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve powerful audio projection with a 500W continuous power handling PA speaker.
  • Enjoy wide, even coverage thanks to the 90x60 degree dispersion pattern.
  • The durable, weather-resistant birch enclosure ensures lasting PA speaker performance.
  • Perfect for installations: features (22) M10 threaded points for easy suspension.
  • This 12" two-way speaker delivers high sensitivity (98dB) for clear, impactful sound.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 96PI Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 90 deg.
    V: 60 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 96PI

Over the years, Adorama has been committed to offering professional-grade audio equipment that meets the exacting standards of live performance and event sound reinforcement. The EVF-1122S 96 12" Two-Way Full-Range Loudspeaker stands as a testament to this commitment, offering a high-quality, durable, and reliable audio solution for a variety of settings.

Crafted from robust, weather-resistant birch plywood and finished with the exclusive EVCoat, this loudspeaker is engineered to withstand the rigors of outdoor events while maintaining its aesthetic appeal in a sleek white finish. The Pi-Weatherized design ensures that the speaker is protected against the elements, making it an ideal choice for both indoor and outdoor venues.

The EVF-1122S 96 boasts a powerful acoustic performance with a high sensitivity of 98dB, ensuring that your audio is clear and impactful, even at lower volume levels. This makes it an excellent choice for environments where nuanced sound reproduction is crucial. The wide 90x60 degree coverage pattern allows for an expansive sound field, ensuring that every listener experiences the same audio fidelity, whether they are near the stage or at the back of a large hall.

This loudspeaker's innovative design extends to its rigging capabilities, allowing for both vertical and horizontal clustering with a variety of loudspeakers from the EVF series. This versatility is perfect for customizing sound setups to match specific venue requirements, from intimate gatherings to grand-scale events.

The EVF-1122S 96 is equipped with an advanced input panel that offers flexibility in connectivity. It includes Phoenix-type connectors and provisions for adding a dual NL4-type connector cover plate or a gland nut cover plate, enhancing its weather-resistant properties. The input panel also features an externally accessible jumper for easy selection between passive or bi-amped operation, adding to the speaker's adaptability.

For installations requiring distributed sound systems, the loudspeaker can be easily fitted with an optional 70.7/100V transformer kit, which mounts directly onto the input panel. This feature is particularly useful for venues that require consistent sound levels across a wide area, such as sports arenas or transportation hubs.

In summary, the EVF-1122S 96 12" Two-Way Full-Range Loudspeaker is a professional, powerful, and versatile audio solution that offers unparalleled flexibility and performance. Its ability to deliver high-quality sound across a broad coverage area, combined with its weather-resistant construction and adaptable rigging options, makes it a top choice for sound professionals looking to manage more venues with less equipment while achieving precise audio reproduction.

Electro-Voice EVF-1122S 96PI Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience exceptional sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve powerful audio projection with a 500W continuous power handling PA speaker.
  • Enjoy wide, even coverage thanks to the 90x60 degree dispersion pattern.
  • The durable, weather-resistant birch enclosure ensures lasting PA speaker performance.
  • Perfect for installations: features (22) M10 threaded points for easy suspension.
  • This 12" two-way speaker delivers high sensitivity (98dB) for clear, impactful sound.

What's in the box:

  • Electro-Voice EVF-1122S 96 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
