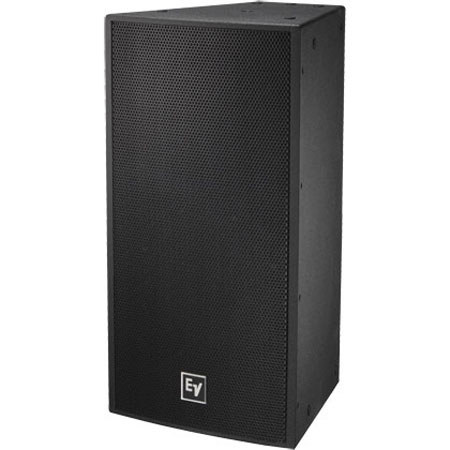

Electro-Voice EVF-1122S 99 12" Two-Way Full-Range Loudspeaker, 90x90deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, Black

SKU: EVF1122S99BK MFR: F.01U.272.510
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Achieve optimal coverage with the 90x90 degree dispersion of this PA system.
  • Enjoy powerful and clear audio with a peak power handling of 2000 Watts.
  • This durable PA speaker is built with weather-resistant birch for lasting use.
  • Easily integrate this 8 Ohms impedance PA speaker into your existing setup.
  • Get precise audio with a frequency response of 49-19000 Hz from this speaker.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 99 Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 90 deg.
    V: 90 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

  • UPC Code

    00800549698825

About Electro-Voice EVF-1122S 99

With its advanced engineering and robust design, the EVF-1122S 99 12" Two-Way Full-Range Loudspeaker stands as a pinnacle of audio precision and versatility. This black loudspeaker boasts a 90° x 90° rotatable waveguide, meticulously crafted to deliver a near-field, wide-spread coverage pattern, ensuring that sound is distributed evenly across any space.

Constructed from weather-resistant birch plywood, the EVF-1122S 99 is fortified with EVCoat, a specialized coating that provides maximum protection against the elements, making it an ideal choice for both indoor and outdoor applications. The durability of this loudspeaker is matched by its acoustic performance, with a sensitivity of 98dB and an impedance of 8 Ohms, it guarantees clear and powerful sound reproduction.

The EVF series is celebrated for its unique acoustic properties and versatile rigging options. This model allows for the creation of vertical and horizontal clusters, offering unparalleled flexibility in system design. This is achieved through the use of any combination of loudspeakers from the series, which includes full-range, low-frequency, and subwoofer options. This adaptability makes the EVF-1122S 99 a perfect fit for a wide range of applications, from concert venues to houses of worship, without compromising on sound quality or coverage.

The innovative input panel of the EVF-1122S 99 is designed for ease of use and flexibility. It accommodates Phoenix-type connectors and provides the option to add a dual NL4-type connector cover plate or a gland nut cover plate, enhancing its suitability for weatherized installations. Additionally, an externally accessible jumper allows users to select between passive or bi-amped operation, catering to different audio system requirements.

For those utilizing distributed systems, the loudspeaker can be easily fitted with an optional 70.7/100V transformer kit, which mounts directly to the input panel, streamlining the integration process. This feature, along with the rest of the loudspeaker's versatile attributes, underscores the EVF-1122S 99's ability to manage a diverse array of venues and events with fewer pieces of equipment, while swiftly and accurately meeting the specific needs of each customer.

In summary, the EVF-1122S 99 12" Two-Way Full-Range Loudspeaker is a testament to superior sound engineering, offering a comprehensive solution that caters to professionals seeking exceptional audio performance, adaptability, and resilience in their sound systems.

Electro-Voice EVF-1122S 99 Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Achieve optimal coverage with the 90x90 degree dispersion of this PA system.
  • Enjoy powerful and clear audio with a peak power handling of 2000 Watts.
  • This durable PA speaker is built with weather-resistant birch for lasting use.
  • Easily integrate this 8 Ohms impedance PA speaker into your existing setup.
  • Get precise audio with a frequency response of 49-19000 Hz from this speaker.

What's in the box:

  • Electro-Voice EVF-1122S 99 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
