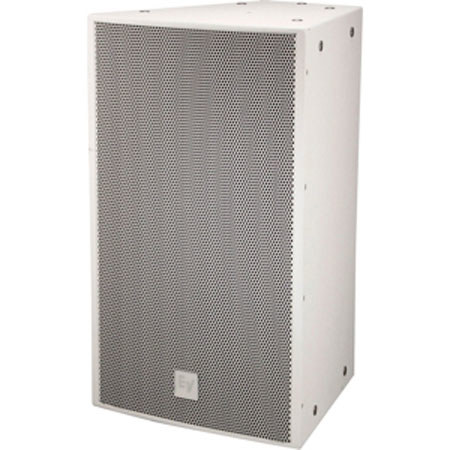

Electro-Voice EVF-1152D/64-FG 15" 2-Way 60 x 40 Full-Range Fiberglass Weatherized Loudspeaker, 107Hz-18kHz, 100dB Sensitivity, 134dB SPL, 8 Ohms, Single, White

SKU: EVF1152D64FW MFR: F.01U.272.952
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 15" PA speaker.
  • This durable, weatherized PA speaker is perfect for outdoor events and installations.
  • Achieve powerful audio projection with a peak power handling of 2400W.
  • Enjoy versatile connectivity with dual four-pin Phoenix/Euro Block terminals.
  • The fiberglass enclosure ensures long-lasting performance and protection.
  • Get wide, even sound coverage with the 60 x 40 degree rotatable coverage.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152D/64-FG Specifications

  • Frequency Response

    -3dB: 107Hz-18kHz
    -10dB: 58Hz-21kHz

  • Rotatable Coverage

    60 deg. x 40 deg.

  • Rec. High-Pass Frequency

    55Hz

  • Passive Crossover Frequency

    1300Hz

  • Axial Sensitivity

    100dB (1 W/1 m)
    LF: 100dB (1 W/1 m)
    HF: 113dB (1 W/1 m)

  • SPL

    134dB (Max.)
    LF: 133dB (Max.)
    HF: 138dB (Max.)

  • Power Handling

    Passive: 600W continuous, 2400W peak
    LF: 500W continuous, 2000W peak
    HF: 75W continuous, 300W peak

  • Impedance

    8 Ohms (nominal), 6.0 Ohms (min.)
    LF: 8 Ohms (nominal), 7.2 Ohms (min.)
    HF: 8 Ohms (nominal), 6.0 Ohms (min.)

  • Connectors

    Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing

  • Enclosure

    13-ply weather-resistant birch with fiberglass finish

  • Grille

    18 GA stainless steel with hydrophobic cloth

  • Environmental

    IEC 60529 IP55 for PI version

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 76.86 x 46.99 x 46.66cm

  • Weight

    75.7lbs / 34.34kg

About Electro-Voice EVF-1152D/64-FG

With the Electro-Voice EVF-1152D/64-FG 15" 2-Way 60 x 40 Full-Range Fiberglass Weatherized White Loudspeaker, experience high-quality sound reinforcement in a compact, lightweight package. This durable and reliable loudspeaker is fully weatherized and coated with fiberglass, making it suitable for both indoor and outdoor applications.

The EVF-1152D/64-FG is powered by the DH7N, a high-output 3" titanium compression driver, paired with a Constant Directivity 60deg. X 40deg. waveguide. This ensures a broad and consistent sound dispersion, perfect for live performances, concerts, and other large-scale events.

The heart of this powerful loudspeaker is the DVX3151A 15" woofer, meticulously designed using FEA optimization for motor, suspension, and electrical design. This results in low distortion, high efficiency, and maximum intelligibility even at high SPL, delivering a clear and powerful sound that Electro-Voice is renowned for.

The crossover in this stylish loudspeaker employs steep, 24-dB-per-octave slopes with equalization, ensuring a smooth response in the vocal range and linear off-axis response. It also features a protection circuit for long-term reliability, making it a sound investment for your audio needs.

The EVF-1152D/64-FG's trapezoidal enclosure is constructed of weather-resistant birch and coated with fiberglass, offering maximum protection from extreme outdoor elements. Its unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series.

With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, the EVF-1152D/64-FG provides the flexibility to tailor your system design to any application and budget. The innovative input panel offers a choice of Phoenix style connector or the option to add a dual NL4-type connector cover plate or gland-nut cover plate for weatherizing applications.

An externally accessible jumper selects passive or active operation, and an optional 70.7/100-V transformer kit can be easily mounted to the input panel for use in distributed systems. All these features make the EVF-1152D/64-FG a versatile and high-quality loudspeaker, capable of addressing a wide range of venues and customer requirements with fewer items in inventory.

Electro-Voice EVF-1152D/64-FG Features

  • Fully-weatherized fiberglass finish with gland nut and stainless-steel grille
  • DH7N 3" (76 mm) diaphragm, 1.4" (36 mm) exit pure titanium compression driver
  • DVX3151A 15" (381 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover network with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 15" PA speaker.
  • This durable, weatherized PA speaker is perfect for outdoor events and installations.
  • Achieve powerful audio projection with a peak power handling of 2400W.
  • Enjoy versatile connectivity with dual four-pin Phoenix/Euro Block terminals.
  • The fiberglass enclosure ensures long-lasting performance and protection.
  • Get wide, even sound coverage with the 60 x 40 degree rotatable coverage.

What's in the box:

  • Electro-Voice EVF-1152D/64-FG 15 " 2-Way 60 x 40 Full-Range Fiberglass Weatherized Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
