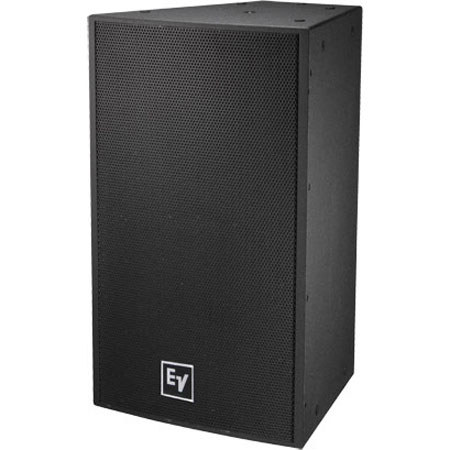

Electro-Voice EVF-1152D/66 15" 2-Way 60 x 60 Full-Range Fiberglass Weatherized Loudspeaker, 70Hz-18kHz, 100dB Sensitivity, 134dB SPL, 8 Ohms, Single, Black

SKU: EVF1152D66FB MFR: F.01U.272.953
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 15" PA speaker.
  • This durable PA speaker is weatherized, perfect for outdoor events and installations.
  • Achieve powerful audio with a peak power handling of 2400W in this robust PA system.
  • Enjoy flexible connectivity options with dual four-pin Phoenix/Euro Block terminals.
  • The 60 x 60 coverage ensures wide sound dispersion for your audience with this speaker.
  • Install with ease using (22) M10 threaded suspension points on this PA loudspeaker.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152D/66FB Specifications

  • Frequency Response

    -3dB: 70Hz-18kHz
    -10dB: 40Hz-21kHz

  • Rotatable Coverage

    60 deg. x 60 deg.

  • Rec. High-Pass Frequency

    45Hz

  • Passive Crossover Frequency

    1300Hz

  • Axial Sensitivity

    100dB (1 W/1 m)
    LF: 100dB (1 W/1 m)
    HF: 112dB (1 W/1 m)

  • SPL

    134dB (Max.)
    LF: 133dB (Max.)
    HF: 137dB (Max.)

  • Power Handling

    Passive: 600W continuous, 2400W peak
    LF: 500W continuous, 2000W peak
    HF: 75W continuous, 300W peak

  • Impedance

    8 Ohms (nominal), 6.0 Ohms (min.)
    LF: 8 Ohms (nominal), 7.2 Ohms (min.)
    HF: 8 Ohms (nominal), 6.0 Ohms (min.)

  • Connectors

    Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
    PI Version - CDG dual gland-nut input panel cover included

  • Enclosure

    13-ply weather-resistant birch with fiberglass EVCoat

  • Grille

    16 GA powder-coated galvanneal with rotatable logo
    PI Version - Stainless steel with

  • Environmental

    IEC 60529 IP55 for PI version

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 76.86 x 46.99 x 46.66cm

  • Weight

    75.7lbs / 34.34kg

  • UPC Code

    00701001114788

About Electro-Voice EVF-1152D/66FB

Explore the unparalleled audio performance of the Electro-Voice EVF-1152D/66 15" 2-Way 60 x 60 Full-Range Fiberglass Weatherized Black Loudspeaker. Engineered for high-power output, this compact and lightweight loudspeaker delivers superior sound reinforcement, making it an ideal choice for various applications demanding high-quality audio.

The EVF-1152D/66 is equipped with the DH7N, a high-output 3" titanium compression driver, seamlessly paired with a Constant Directivity 60deg. X 60deg. waveguide. This combination ensures a broad and consistent sound dispersion, enhancing your listening experience.

At the heart of this loudspeaker is the DVX3151A 15" woofer, meticulously designed using Finite Element Analysis (FEA) optimization for motor, suspension, and electrical design. This advanced technology ensures low distortion, high efficiency, and maximum intelligibility even at high Sound Pressure Levels (SPL).

The crossover in the EVF-1152D/66 features steep, 24-dB-per-octave slopes with equalization, delivering a smooth response in the vocal range and linear off-axis response. Additionally, it includes a protection circuit for long-term reliability, making it a durable choice for fixed-install applications.

The trapezoidal enclosure of this loudspeaker is constructed from weather-resistant birch and coated with EVCoat, offering maximum protection from the elements. Its unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series.

With seven horn patterns to choose from and an assortment of low-frequency and subwoofer loudspeakers, the EVF-1152D/66 offers the flexibility to tailor your system design to any application and budget. The innovative input panel provides a choice of Phoenix style connector or the option to add a dual NL4-type connector cover plate or gland-nut cover plate for weatherizing applications.

An externally accessible jumper selects passive or active operation, and an optional 70.7/100-V transformer kit can be easily mounted to the input panel for use in distributed systems. All these features make the EVF-1152D/66 a versatile and reliable choice for addressing a wide range of venues, allowing you to meet customer requirements with fewer items in inventory.

Electro-Voice EVF-1152D/66FB Features

  • Ideal for fixed installations
  • DVX3151A woofer with fully symmetric drive
  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 40deg. to 90deg
  • 4th-order crossover with HF protection
  • Transformer kit available for distributed systems

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 15" PA speaker.
  • This durable PA speaker is weatherized, perfect for outdoor events and installations.
  • Achieve powerful audio with a peak power handling of 2400W in this robust PA system.
  • Enjoy flexible connectivity options with dual four-pin Phoenix/Euro Block terminals.
  • The 60 x 60 coverage ensures wide sound dispersion for your audience with this speaker.
  • Install with ease using (22) M10 threaded suspension points on this PA loudspeaker.

What's in the box:

  • Electro-Voice EVF-1152D/66 15 " 2-Way 60 x 60 Full-Range Fiberglass Weatherized Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
