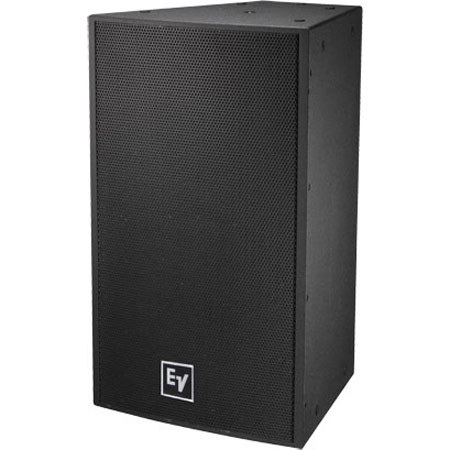

Telex EVF-1152D/96-FG 15" 2-Way Full-Range Fully-Weatherized Fiberglass Loudspeaker, 90x60deg., 2400W Peak, 8 Ohm Nominal Impedance, 70-18kHz, Single, Black

SKU: EVF1152D96FB MFR: F.01U.272.957
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this 15" 2-way full-range PA speaker.
  • Get peak performance with 2400W power output for impactful audio clarity.
  • Durable fiberglass build ensures this PA speaker withstands any weather condition.
  • Ideal for permanent installations; this install speaker offers a 90x60deg coverage.
  • Enjoy flexible connectivity with Phoenix/Euroblock style screw terminals included.
  • This 15" PA speaker delivers a wide frequency response from 70-18kHz for live sound.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Telex EVF-1152D/96-FG Specifications

  • Frequency Response (-3 dB)

    70 - 18000 Hz

  • Frequency Response (-10 dB)

    40 - 21000 Hz

  • Recommended High-Pass Frequency

    45 Hz

  • Sensitivity 1 W/1 m

    100 dB

  • Max. SPL/1m (calc)

    134 dB

  • System Power Handling

    600 W continuous, 1200 W program, 2400 W peak

  • Nominal Impedance (Passive)

    8 Ohm

  • Minimum Impedance

    8 Ohm

  • Input Connections

    Phoenix/Euroblock style screw terminals, dual-gland-nut input-panel cover

  • Coverage (Nominal -6 dB) Hdeg.

    90 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    60 deg.

  • LF Transducer

    DVX3151A, 15 in (381 mm) Woofer

  • HF Transducer

    DH7N, 3 in (76 mm) Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    18 GA Stainless, Powdercoat, with hydrophobic cloth behind

  • Environmental

    IEC 60529 IP55

  • Suspension

    (22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.60 x 469.9 x 466.59mm

  • Weight

    75.7 lbs (34.33 kg)

About Telex EVF-1152D/96-FG

Make your audio experience exceptional with the Electro-Voice EVF-1152D/96-FG 15" 2-Way Full-Range Fully-Weatherized Fiberglass Black Loudspeaker. This high-performance audio equipment is designed to deliver superior sound quality in any weather condition, thanks to its fully weatherized fiberglass construction.

The loudspeaker boasts a 15-inch 2-way full-range speaker system, offering a broad frequency response from 70-18kHz. This ensures you enjoy clear, detailed sound across all audio frequencies. With a peak power of 2400W and 8 Ohm nominal impedance, this loudspeaker delivers powerful, distortion-free sound even at high volumes.

One of the standout features of this loudspeaker is its 90 x 60-degree rotatable waveguide. This design is specifically engineered for mid-near field medium throw raw spread coverage pattern, providing optimal sound dispersion for an immersive audio experience.

The high power capacity of the woofers, coupled with the compression driver, allows the system to produce higher sound levels with minimal distortion. This results in less power compression, ensuring that your attempts to increase the sound level are fully realized. As the voice coils heat up, their impedance rises, but this loudspeaker system is designed to maintain its acoustic efficiency, providing consistent, high-quality sound.

In a sleek black finish, the Electro-Voice EVF-1152D/96-FG 15" 2-Way Full-Range Fully-Weatherized Fiberglass Loudspeaker is not only a powerful audio tool but also a stylish addition to your audio setup. Whether you're setting up a professional sound system or enhancing your personal audio equipment, this loudspeaker is a reliable choice for high-quality sound performance.

Telex EVF-1152D/96-FG Features

  • Fully-weatherized fiberglass finish with gland nut and stainless-steel grille
  • DH7N 3" (76 mm) diaphragm, 1.4" (36 mm) exit pure titanium compression driver
  • DVX3151A 15" (381 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover network with HF protection
  • 100 dB sensitivity, 134 dB maximum SPL
  • (22) M10 threaded suspension points

Key Features

  • Experience superior sound quality with this 15" 2-way full-range PA speaker.
  • Get peak performance with 2400W power output for impactful audio clarity.
  • Durable fiberglass build ensures this PA speaker withstands any weather condition.
  • Ideal for permanent installations; this install speaker offers a 90x60deg coverage.
  • Enjoy flexible connectivity with Phoenix/Euroblock style screw terminals included.
  • This 15" PA speaker delivers a wide frequency response from 70-18kHz for live sound.

What's in the box:

  • Electro-Voice EVF-1152D/96-FG 15 " 2-Way Full-Range Fully-Weatherized Fiberglass Loudspeaker
  • Electro-Voice 5 Year Limited Warranty
