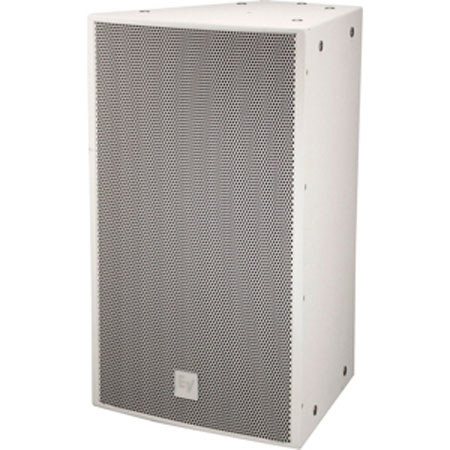

Electro-Voice EVF-1152D/96 15" 2-Way Full-Range Loudspeaker, 90x60deg., 2400W Peak Power, 8 Ohms Nominal Impedance, 100dB Sensitivity, 70-18000Hz, Single, White

SKU: EVF1152D96WH MFR: F.01U.272.579
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 15" PA speaker.
  • Achieve peak audio performance with 2400W power for impactful sound reinforcement.
  • Enjoy versatile connectivity with Phoenix/Euroblock style screw terminals.
  • Durable birch enclosure ensures long-lasting reliability for install applications.
  • Ideal for venues needing precise 90x60deg coverage and high SPL output.
  • This white PA speaker integrates seamlessly into various aesthetic environments.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice EVF-1152D/96 Specifications

  • Environmental

    IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response (-3 dB)

    70 - 18000 Hz

  • Frequency Response (-10 dB)

    40 - 21000 Hz

  • Recommended High-Pass Frequency

    45 Hz

  • Sensitivity 1 W/1 m

    100 dB

  • Maximum SPL/1m (calc)

    134 dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    60 deg.

  • System Power Handling

    600/1200/2400 Watts (Continuous/Program/Peak)

  • LF Transducer

    DVX3151A 15" / 381mm woofer

  • LF Nominal Impedance

    8 Ohms

  • HF Transducer

    DH7N 3" / 76.2mm diaphragm compression driver

  • Crossover Frequency

    1300 Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13-ply weather-resistant birch with EVCoat

  • Grill

    16 GA powder-coated galvanneal with screen behind

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.6 x 469.9 x 466.6mm

  • Weight

    75.84lbs / 34.4kg

About Electro-Voice EVF-1152D/96

Be captivated by the superior sound quality of the Electro-Voice EVF-1152D/96 15" 2-Way Full-Range Loudspeaker. This high-quality, durable audio equipment is designed to deliver a powerful and efficient sound performance, making it a reliable choice for professional audio setups.

Engineered by the reputable Electro-Voice brand, this white loudspeaker is equipped with a 90x60 degree rotatable waveguide, meticulously designed for mid-near field medium throw raw spread coverage pattern. This feature ensures an immersive audio experience, distributing sound evenly across a wide area.

Boasting a peak power of 2400W, this loudspeaker offers an impressive power handling capacity, making it ideal for large venues and events. With a high sensitivity of 100dB and a broad frequency range of 70-18000Hz, it is capable of delivering clear, crisp sound across various musical genres and applications.

The EVF-1152D/96 also features an 8 Ohms nominal impedance, ensuring efficient power usage and a consistent audio output. Its robust construction ensures durability, allowing it to withstand high-pressure environments and rigorous use.

Whether you're hosting a live concert or a large-scale event, the Electro-Voice EVF-1152D/96 15" 2-Way Full-Range Loudspeaker is designed to provide a superior audio experience.

Electro-Voice EVF-1152D/96 Features

  • Compact and lightweight
  • Low distortion, high efficiency
  • Ideal for fixed installations
  • Rotatable Constant-directivity waveguide
  • 4th-order crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 15" PA speaker.
  • Achieve peak audio performance with 2400W power for impactful sound reinforcement.
  • Enjoy versatile connectivity with Phoenix/Euroblock style screw terminals.
  • Durable birch enclosure ensures long-lasting reliability for install applications.
  • Ideal for venues needing precise 90x60deg coverage and high SPL output.
  • This white PA speaker integrates seamlessly into various aesthetic environments.

What's in the box:

  • Electro-Voice EVF-1152D/96 15 " 2-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
