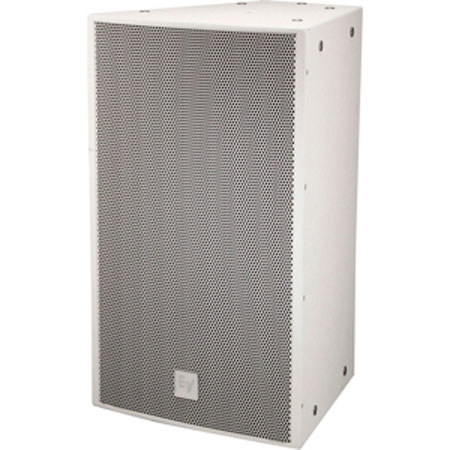

Electro-Voice EVF-1152S/43 15" 2-Way Full-Range Loudspeaker, 45x30deg., 2000W Peak Power, 8 Ohms Nominal Impedance, 101dB Sensitivity, 41Hz-18kHz, Single, White

SKU: EVF1152S43WH MFR: F.01U.272.519
Earn VIP Reward Points

Key Features

  • Experience powerful, crystal-clear audio with this 2000W peak power PA loudspeaker.
  • Achieve exceptional sound quality with the EVF-1152S/43's wide 41Hz-18kHz frequency range.
  • This durable PA speaker features weather-resistant birch, ideal for install applications.
  • Customize your sound setup with the 45x30 degree coverage of this full-range loudspeaker.
  • Enjoy flexible connectivity with the EuroBlock style screw terminal on this PA speaker.
  • The Electro-Voice speaker's robust design ensures years of reliable, high-performance audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152S/43 Specifications

  • Frequency Response (-3 dB)

    70 Hz - 14 kHz

  • Frequency Range (-10 dB)

    41 Hz - 18 kHz

  • Rec. Hipass Frequency

    45 Hz

  • Axial Sensitivity

    101 dB (1W/1m)

  • Max. Calculated SPL

    134 dB

  • Horizontal Coverage

    40 deg. (or 30 deg. )

  • Vertical Coverage

    30 deg. (or 40 deg. )

  • Power Handling

    500W Continuous, 2000W Peak

  • LF Transducer

    SMX2151, 15" / 381mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm Diaphragm Compression Driver

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Connectors

    (2) 4 Contact 10 AWG Phoenix/EuroBlock Style Screw Terminal

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    16 GA Galvanneal, Powdercoat, with Rotatable Logo

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.6 x 469.9 x 466.6mm

  • Weight

    70.9lbs / 32.16kg

About Electro-Voice EVF-1152S/43

Explore the pinnacle of sound reinforcement with the Electro-Voice EVF-1152S/43, a premium 15" 2-Way Full-Range Loudspeaker designed for the discerning audio professional. This high-quality, white loudspeaker delivers unparalleled audio performance in a sleek, compact, and lightweight package, making it an ideal choice for a multitude of applications where superior sound is paramount.

Crafted with meticulous attention to detail, the EVF-1152S/43 boasts the ND2B, a high-output 2" titanium compression driver, expertly paired with a Constant Directivity 45x30 degree waveguide. This combination ensures a focused sound dispersion, providing clear and precise audio reproduction that reaches every corner of your venue.

The heart of the low-frequency response lies in the SMX2151 15" woofer, which has been fine-tuned using FEA optimization for motor, suspension, and electrical design. This results in exceptionally low distortion, high efficiency, and maximum intelligibility at soaring SPL levels, ensuring that every note is heard with crystal clarity.

The advanced crossover network features steep 24 dB/octave slopes with tailored equalization, delivering an incredibly smooth response in the critical vocal range, consistent off-axis response, and a built-in protection circuit for enduring reliability. This makes the EVF-1152S/43 not only powerful but also efficient and reliable, ensuring that it performs flawlessly even in the most demanding environments.

The robust trapezoidal enclosure, constructed from weather-resistant birch and finished with EVCoat, offers maximum protection against the elements, making this loudspeaker a durable choice for both indoor and outdoor installations. The innovative acoustic and rigging design allows for versatile vertical and horizontal clustering, using any combination of loudspeakers from the comprehensive EVF & EVH Series. With seven horn patterns and a variety of low-frequency and subwoofer options, system design flexibility is at your fingertips, catering to any application and budget.

The EVF-1152S/43's input panel is ingeniously designed to offer a choice of a phoenix-style connector or the option to add a dual NL4 type connector cover plate or gland nut cover plate for weatherized applications. An externally accessible jumper allows for easy selection between passive or bi-amped operation, while an optional 70.7/100 Volt transformer kit can be mounted for use in distributed systems.

With these extensive features, the Electro-Voice EVF-1152S/43 stands out as a versatile and reliable loudspeaker that can effortlessly adapt to a wide range of venues, reducing inventory needs and swiftly meeting customer requirements. Whether for live performances, concerts, festivals, or other events, this loudspeaker promises to deliver high-quality, balanced sound that will impress even the most critical listeners.

Electro-Voice EVF-1152S/43 Features

  • ND2B 2" diaphragm and 1.4" exit pure titanium compression driver
  • SMX2151 15" LF transducer with a fully symmetric drive
  • Fourth-order crossover network with HF protection
  • Coverage pattern 45 Degree x 30 Degree and constant directivity 12" rotatable waveguide
  • 101 dB sensitivity and 134 dB maximum SPL
  • Twenty-two M10 threaded suspension points
  • Comes with a Phoenix-style connector and a gland-nut with input panel cover plate

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful, crystal-clear audio with this 2000W peak power PA loudspeaker.
  • Achieve exceptional sound quality with the EVF-1152S/43's wide 41Hz-18kHz frequency range.
  • This durable PA speaker features weather-resistant birch, ideal for install applications.
  • Customize your sound setup with the 45x30 degree coverage of this full-range loudspeaker.
  • Enjoy flexible connectivity with the EuroBlock style screw terminal on this PA speaker.
  • The Electro-Voice speaker's robust design ensures years of reliable, high-performance audio.

What's in the box:

  • Electro-Voice EVF-1152S/43 15 " 2-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
