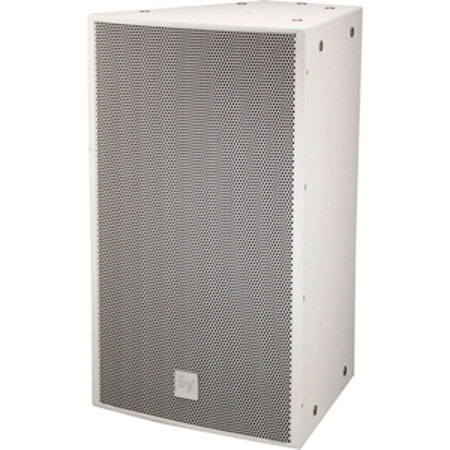

Electro-Voice EVF-1152S/64 15" 2-Way Full-Range Loudspeaker, 60x40deg., 2000W Peak Power, 8 Ohms Nominal Impedance, 101dB Sensitivity, 41Hz-18KHz, Single, White

SKU: EVF1152S64WH MFR: F.01U.272.523
Earn VIP Reward Points

Key Features

  • Experience powerful, crystal-clear audio with this 2000W peak power PA speaker.
  • Achieve exceptional sound quality with a wide frequency range of 41Hz to 18kHz.
  • This durable PA speaker is built with weather-resistant birch for lasting use.
  • Enjoy flexible setup with multiple M10 threaded points for easy suspension.
  • The Electro-Voice speaker's rotatable logo adds a professional touch to any event.
  • Get wide sound dispersion with 60x40 degree coverage for optimal PA performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152S/64 Specifications

  • Frequency Response (-3 dB)

    70 Hz - 14 kHz

  • Frequency Range (-10 dB)

    41 Hz - 18 kHz

  • Rec. Hipass Frequency

    45 Hz

  • Axial Sensitivity

    101 dB (1W/1m)

  • Max. Calculated SPL

    134 dB

  • Horizontal Coverage

    60 deg. (or 40 deg. )

  • Vertical Coverage

    40 deg. (or 60 deg. )

  • Power Handling

    500W Continuous, 2000W Peak

  • LF Transducer

    SMX2151, 15" / 381mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm Diaphragm Compression Driver

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Connectors

    (2) 4 Contact 10 AWG Phoenix/EuroBlock Style Screw Terminal

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    16 GA Galvanneal, Powdercoat, with Rotatable Logo

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.6 x 469.9 x 466.6mm

  • Weight

    70.9lbs / 32.16kg

About Electro-Voice EVF-1152S/64

After extensive research and development, the Electro-Voice EVF-1152S/64 15" 2-Way Full-Range White Loudspeaker emerges as a top-tier choice for high-quality sound reinforcement in a compact, lightweight design. This versatile loudspeaker is engineered to deliver superior audio performance across a wide range of applications, making it an ideal solution for professional audio setups.

At the heart of the EVF-1152S/64 is the ND2B, a high-output 2" titanium compression driver, expertly paired with a Constant Directivity 60x40 degree waveguide. This combination ensures precise sound projection and optimal coverage. The SMX2151 15" woofer, designed using FEA optimization, guarantees low distortion, high efficiency, and maximum intelligibility even at high SPL levels.

The advanced crossover system of this Electro-Voice loudspeaker features steep 24 dB/octave slopes with equalization, ensuring a smooth response in the vocal range and linear off-axis response. A built-in protection circuit enhances long-term reliability, making this loudspeaker a durable choice for any sound reinforcement needs.

The EVF-1152S/64's trapezoidal enclosure, constructed from weather-resistant birch and coated with EVCoat, offers maximum protection from the elements. This unique design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series. With seven horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers, this model offers unparalleled flexibility in system design, regardless of the application or budget.

The innovative input panel of the EVF-1152S/64 provides a choice of a phoenix style connector or the option to add a dual NL4 type connector cover plate or gland nut cover plate for weatherizing applications. An externally accessible jumper allows for easy selection between passive or active operation. Additionally, an available 70.7/100 Volt transformer kit can be mounted to the input panel for use in distributed systems. This feature-rich loudspeaker is designed to meet a wide range of venue requirements, offering the flexibility to quickly support your customer's needs with fewer items in inventory.

Electro-Voice EVF-1152S/64 Features

  • ND2B 2" diaphragm and 1.4" exit pure titanium compression driver
  • SMX2151 15" LF transducer with a fully symmetric drive
  • Fourth-order crossover network with HF protection
  • Coverage pattern 60 Degree x 40 Degree and constant directivity 12" rotatable waveguide
  • 101 dB sensitivity and 134 dB maximum SPL
  • Twenty-two M10 threaded suspension points
  • Comes with a Phoenix-style connector

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful, crystal-clear audio with this 2000W peak power PA speaker.
  • Achieve exceptional sound quality with a wide frequency range of 41Hz to 18kHz.
  • This durable PA speaker is built with weather-resistant birch for lasting use.
  • Enjoy flexible setup with multiple M10 threaded points for easy suspension.
  • The Electro-Voice speaker's rotatable logo adds a professional touch to any event.
  • Get wide sound dispersion with 60x40 degree coverage for optimal PA performance.

What's in the box:

  • Electro-Voice EVF-1152S/64 15 " 2-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
