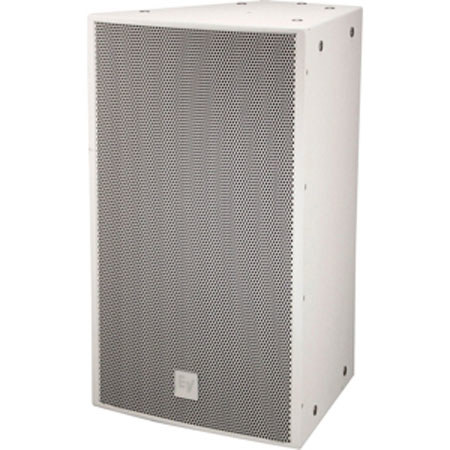

Electro-Voice EVF-1152S/94 15" 2-Way Full-Range PI-Weatherized Loudspeaker, 90x40deg., 2000W Peak, 8 Ohms Impedance, 101dB Sensitivity, 41Hz-18kHz, Single, White

SKU: EVF1152S94PW MFR: F.01U.272.533
Earn VIP Reward Points

Key Features

  • Experience powerful, crystal-clear audio with this 2000W peak PA loudspeaker.
  • Achieve exceptional sound quality with its 15" woofer & 2" compression driver.
  • Enjoy wide sound dispersion with selectable 90x40 or 40x90 degree coverage.
  • Weather-resistant birch enclosure ensures durability for outdoor PA system use.
  • Ideal for permanent installations with multiple M10 threaded suspension points.
  • This high-sensitivity PA speaker delivers 101dB, perfect for live sound events.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152S/94PI Specifications

  • Frequency Response (-3 dB)

    70 Hz - 14 kHz

  • Frequency Range (-10 dB)

    41 Hz - 18 kHz

  • Rec. Hipass Frequency

    45 Hz

  • Axial Sensitivity

    101 dB (1W/1m)

  • Max. Calculated SPL

    134 dB

  • Horizontal Coverage

    90 deg. (or 40 deg. )

  • Vertical Coverage

    40 deg. (or 90 deg. )

  • Power Handling

    500W Continuous, 2000W Peak

  • LF Transducer

    SMX2151, 15" / 381mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm Diaphragm Compression Driver

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Connectors

    Gland Nut with Included Input Panel Cover

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Stainless Steel with Hydrophobic Cloth

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.6 x 469.9 x 466.6mm

  • Weight

    70.9lbs / 32.16kg

About Electro-Voice EVF-1152S/94PI

How does the Electro-Voice EVF-1152S/94 15" 2-Way Full-Range PI-Weatherized White Loudspeaker stand out This high-quality, durable, and stylish loudspeaker is a powerful and reliable choice for any sound reinforcement needs. Whether it's for live performances, concerts, theater productions, or other events, this loudspeaker delivers clear, high-fidelity sound in a compact, lightweight package.

The EVF-1152S/94 is equipped with the ND2B, a high-output 2" titanium compression driver, paired with a Constant Directivity 90x40 degree waveguide. This combination ensures a wide and consistent sound dispersion. The SMX2151 15" woofer, optimized using Finite Element Analysis (FEA) for motor, suspension, and electrical design, ensures low distortion, high efficiency, and maximum intelligibility even at high Sound Pressure Levels (SPL).

The crossover in this loudspeaker uses steep 24 dB/octave slopes with equalization, providing a smooth response in the vocal range and linear off-axis response. This feature, along with a protection circuit, guarantees long-term reliability and performance.

Constructed from weather-resistant birch and coated with EVCoat, the trapezoidal enclosure of the EVF-1152S/94 is designed to withstand the elements, making it suitable for both indoor and outdoor use. Its unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series. With seven horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers, this model offers maximum flexibility in system design, regardless of the application or budget.

The innovative input panel of the EVF-1152S/94 offers a choice of a phoenix style connector or the option to add a dual NL4 type connector cover plate or gland nut cover plate for weatherizing applications. An externally accessible jumper allows for easy selection between passive or active operation. An optional 70.7/100 Volt transformer kit can be mounted to the input panel for use in distributed systems.

In summary, the Electro-Voice EVF-1152S/94 15" 2-Way Full-Range PI-Weatherized White Loudspeaker offers a comprehensive solution for high-quality sound reinforcement, providing the flexibility to cater to a wide range of venues and customer requirements.

Electro-Voice EVF-1152S/94PI Features

  • ND2B 2" diaphragm and 1.4" exit pure titanium compression driver
  • SMX2151 15" LF transducer with a fully symmetric drive
  • Fourth-order crossover network with HF protection
  • Coverage pattern 90 Degree x 40 Degree and constant directivity 12" rotatable waveguide
  • 101 dB sensitivity and 134 dB maximum SPL
  • Twenty-two M10 threaded suspension points
  • Comes with a Phoenix-style connector

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful, crystal-clear audio with this 2000W peak PA loudspeaker.
  • Achieve exceptional sound quality with its 15" woofer & 2" compression driver.
  • Enjoy wide sound dispersion with selectable 90x40 or 40x90 degree coverage.
  • Weather-resistant birch enclosure ensures durability for outdoor PA system use.
  • Ideal for permanent installations with multiple M10 threaded suspension points.
  • This high-sensitivity PA speaker delivers 101dB, perfect for live sound events.

What's in the box:

  • Electro-Voice EVF-1152S/94 15 " 2-Way Full-Range PI-Weatherized Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
