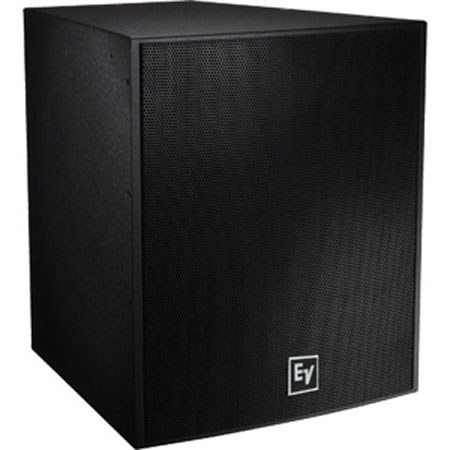

Telex EVF-1181S 18" Front-Loaded Pi-Weatherized Subwoofer, 8 Ohms Nominal Impedance, 99dB Sensitivity, 68-650Hz, 400W Continuous Power, Single, Black

SKU: EVF1181SPIB MFR: F.01U.272.556
Earn VIP Reward Points

Key Features

  • Experience powerful bass with the EVF-1181S subwoofer, delivering exceptional sound quality.
  • The 18" front-loaded design ensures deep, resonant frequencies for immersive audio experiences.
  • Weatherized birch enclosure offers durability, making this subwoofer perfect for outdoor venues.
  • Achieve optimal audio with a frequency response of 28 Hz - 650 Hz, enhancing sound clarity.
  • With 400W continuous power, this subwoofer provides reliable performance for any event.
  • Enjoy easy connectivity & setup with the included gland nut input panel cover for secure use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Telex EVF-1181S Specifications

  • Frequency Response (-3 dB)

    35 Hz - 100 Hz

  • Frequency Range (-10 dB)

    28 Hz - 650 Hz

  • Rec. Hipass Frequency

    33 Hz

  • Axial Sensitivity

    99 dB (1W/1m)

  • Max. Calculated SPL

    131 dB

  • Horizontal Coverage

    Omnidirectional

  • Vertical Coverage

    Omnidirectional

  • Power Handling

    400W Continuous, 1600W Peak

  • LF Transducer

    EVS18SB, 18" / 457.2mm Driver

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Connectors

    Gland Nut with Included Input Panel Cover

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Stainless Steel with Hydrophobic Cloth

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 26.6 x 28.6" / 768.6 x 675.64 x 726.44mm

  • Weight

    101.2lbs / 45.9kg

About Telex EVF-1181S

The Electro-Voice EVF-1181S 18" Front-Loaded Pi-Weatherized Black Subwoofer can be used in a variety of applications where high quality sound reinforcement is required in a lightweight package. The EVF-1181S utilizes the EVS18SB 18" woofer used FEA optimization for motor, suspension and electrical design for very low distortion and maximum intelligibility at high SPL levels. The EVF-1181S features make it a professional loudspeaker for any fixed install application. The trapezoidal enclosure is constructed out of weather resistant birch and coated with EVCoat for maximum protection from the elements.

The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series, with an assorent of Full-Range, Low Frequency and Subwoofer loudspeakers, it gives you the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides choice of phoenix style connector (included in all standard models) or the ability to add; a dual NL4 type connector cover plate or gland nut cover plate (for weatherizing applications). An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues with fewer items in inventory and quickly support your customer's requirements.

Key Features

  • Experience powerful bass with the EVF-1181S subwoofer, delivering exceptional sound quality.
  • The 18" front-loaded design ensures deep, resonant frequencies for immersive audio experiences.
  • Weatherized birch enclosure offers durability, making this subwoofer perfect for outdoor venues.
  • Achieve optimal audio with a frequency response of 28 Hz - 650 Hz, enhancing sound clarity.
  • With 400W continuous power, this subwoofer provides reliable performance for any event.
  • Enjoy easy connectivity & setup with the included gland nut input panel cover for secure use.

What's in the box:

  • Electro-Voice EVF-1181S 18 " Front-Loaded Pi-Weatherized Subwoofer
  • Electro-Voice 3 Year Warranty
