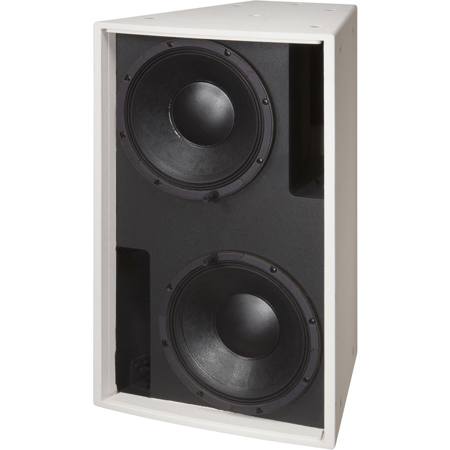

Telex EVF-2121S 12" Front-Loaded Subwoofer, 4 Ohms Nominal Impedance, 100dB Sensitivity, 41Hz-330Hz Frequency Response, 800W Continuous Power, Dual, White

SKU: EVF2121SWHT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Telex EVF-2121S Specifications

  • Frequency Response (-3 dB)

    54 Hz - 145 Hz

  • Frequency Response (-10 dB)

    41 Hz - 330 Hz

  • Rec. Hipass Frequency

    45 Hz

  • Axial Sensitivity

    100 dB (1W/1m)

  • Max. Calculated SPL

    135 dB

  • Horizontal Coverage

    Omnidirectional

  • Vertical Coverage

    Omnidirectional

  • Power Handling

    800W Continuous, 3200W Peak

  • LF Transducer

    Dual EVS12SB, 12" / 304.8mm drivers

  • Nominal Impedance

    4 Ohms

  • Minimum Impedance

    2.8 Ohms

  • Connectors

    Dual 4-pin 10 AWG Phoenix / EuroBlock screw-terminals

  • Enclosure

    13 Ply Weather Resistant Birch with EVCoat

  • Grille

    16 GA powder-coated galvanneal with rotatable logo

  • Suspension

    (22) M10 Threaded suspension Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.6 x 469.9 x 466.6mm

  • Weight

    82.4lbs / 37.38kg

About Telex EVF-2121S

The Telex EVF-2121S 12" Front-Loaded White Subwoofer can be used in a variety of applications where high-quality sound reinforcement is required in a lightweight package. The EVF-2121S utilizes two EVS12SB 12" woofers, developed using FEA optimization for motor, suspension and electrical design to ensure very low distortion and maximum intelligibility at high SPL. The EVF-2121S's features make it a professional loudspeaker for any fixed install application. The trapezoidal enclosure is constructed of weather resistant birch and coated with EVCoat for protection from the elements.

The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With an assortment of full-range, low-frequency and subwoofer loudspeakers available, you have the tools to maximize flexibility of system design, no matter what the application or budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.

Telex EVF-2121S Features

  • Dual 12f LF transducer
  • 100 dB sensitivity, 135 dB maximum SPL
  • System rating: 800 W continuous, 3200 W peak
  • Twenty-two M10 threaded suspension points

Key Features

  • Dual 12f LF transducer
  • 100 dB sensitivity, 135 dB maximum SPL
  • System rating: 800 W continuous, 3200 W peak
  • Twenty-two M10 threaded suspension points

What's in the box:

  • Telex EVF-2121S 12 " Front-Loaded Subwoofer
  • Telex 3 Year Warranty
