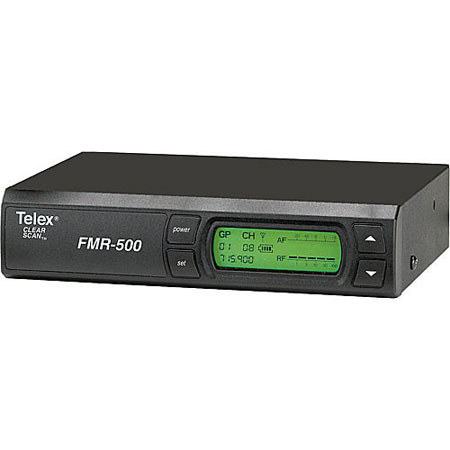

Electro-Voice FMR-500 Wireless Receiver, Band G: 614-638MHz
See all Electro-Voice items

Electro-Voice FMR-500 Wireless Receiver for Telex FMR-500 Microphone System, Band G: 614 - 638MHz

SKU: EVFMR500G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice FMR-500 Specifications

  • Receiver Type

    Synthesized PLL

  • Frequency Range (RF)

    A Band: 648 - 676 MHz

  • Number of Channels

    1112 possible frequencies
    Programmable in 25 kHz steps

  • Modulation

    +/- 40 kHz

  • Diversity

    Digital Posi-Phase True Diversity

  • RF Sensitivity

    < 1.0 mV for 12 dB SINAD

  • Image Rejection

    > 60dB

  • Squelch

    Tone Code plus Amplitude

  • Ultimate Quieting

    > 100dB

  • FCC Certification

    Approved under Part 15

  • Power Requirements

    12 V AC/DC 300mA

  • Operating Temperature

    -7 to 49 deg. C (19 to 120 deg. F)

  • Frequency Response

    50 - 15kHz +/- 2dB

  • Balanced Output

    Mic Position: 10dBV
    Line Position: Adjustable 10mV - 2V RMS (maximum at 40kHz deviation)

  • Unbalanced Output

    Adjustable 10mV - 1V RMS

  • Distortion

    <1.0%, 0.5% typical (ref 1kHz, 40kHz deviation)

  • Signal-to-Noise Ratio

    >100dB A Weighted

  • Dynamic Range

    >100dB

  • Headphone Monitoring

    No

  • Battery Type

    No battery

  • Display

    Backlit LCD - Group/Channel, Frequency, Transmitter Battery, Diversity Status, RF and Audio Level Meters

  • Mounting Options

    Includes single and dual rack mount hardware with front mount antenna cables

  • Antenna Type

    Flexible external 1/4 wave

  • Dimensions (W x H x D)

    7.5 x 1.72 x 5.9" (190.50 x 43.69 x 149.86mm)

  • UPC Code

    701001036783

About Electro-Voice FMR-500

UHF synthesized wireless mic receiver with PosiPhase Diversity, adjustable amplitude squelch, 1112 selectable channels, balanced XLR output; 1/4" adjustable line output, rack mount hardware, 1/4 wave antennas and power supply.

Electro-Voice FMR-500 Features

  • Up to 10 systems can operate simultaneously from the pre-set groups of channels in one operating band
  • Groups of 16 coordinated channels between the two bands are also pre-set
  • Advanced ClearScan and one touch Auto ClearScan automatic group and channel selections, for quick and easy system setup
  • Completely programmable in 25kHz steps across 28MHz for 1112 possible frequencies
  • Backlit receiver LCD display shows the Group/Channel, Frequency, transmitter battery status, diversity operation, and RF and Audio level meters
  • Balanced XLR audio output for Microphone or Line level signals and a 1/4 inch line level jack to match any application
  • Fourth generation Posi-Phase diversity and advanced audio circuits provide maximum range and professional sound quality
  • Includes single and dual rack mount hardware with front mount antenna cables
  • "Smart" battery circuit means there is no way to put the battery in wrong
  • Tone Code plus Amplitude squelch with one button on/off

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Electro-Voice FMR-500 Wireless Receiver
  • Electro-Voice 3 Year Warranty
