Electro-Voice FMR-500 Omni Lapel System, Includes Diversity Receiver, WT-500 Belt-Pack Transmitter, RE97LTx Omnidirectional Lapel Microphone, Rack Mount Kit and 2x 1/4 Wave Antennas, Band A: 648-676MHz

SKU: EVFMR500LA

This item is no longer available.

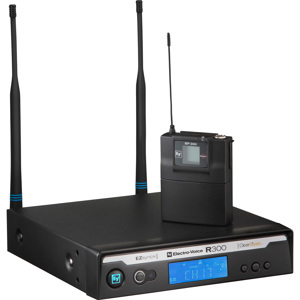

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice Omni Lapel System Specifications

  • Receiver Type

    Synthesized PLL

  • Receiver: Frequency Range (RF)

    A: 648 - 676MHz

  • Receiver: Number of Channels

    1112 possible frequencies Programmable in 25kHz steps

  • Receiver: Modulation

    +/- 40kHz

  • Receiver: Diversity

    Digital Posi-Phase True Diversity

  • Receiver: RF Sensitivity

    <1.0 mV for 12dB SINAD

  • Receiver: Image Rejection

    >60dB

  • Receiver: Squelch

    Tone Code plus Amplitude

  • Receiver: Ultimate Quieting

    >100dB

  • Receiver: FCC Certification

    Approved under Part 15

  • Receiver: Power Requirements

    12VAC/DC 300mA

  • Receiver: Operating Temperature

    -7 to 49 deg. C (19 to 120 deg. F)

  • Receiver: Frequency Response

    50-15kHz +/- 2dB

  • Receiver: Balanced Output

    Mic Position: 10dBV
    Line Position: Adjustable 10mV - 2V RMS (maximum at 40kHz deviation)

  • Receiver: Unbalanced Output

    Adjustable 10mV - 1V RMS

  • Receiver: Distortion

    <1.0%, 0.5% typical (ref 1kHz, 40kHz deviation)

  • Receiver: Signal-to-Noise Ratio

    >100dB A Weighted

  • Receiver: Dynamic Range

    >100dB

  • Transmitter: Radiated Output

    30mW typical

  • Transmitter: Audio Gain Adjustment

    40 dB

  • Transmitter: TA4 Connector Wiring

    Pin 1: Ground; Pin 2 Mic Input
    Pin 3: +5V bias
    Pin 4: +5V bias through a 3kOhms resistor

  • Transmitter: Power Requirements

    9V Alkaline Battery

  • Transmitter: Battery Life (Typical)

    >8 hours with 9V Alkaline Typical

  • Transmitter: Bodypack Antenna

    Flexible external 1/4 wave

  • Microphone: Transducer

    Condenser, Back-Electret

  • Microphone: Freq. Response

    50 Hz - 15 kHz

  • Microphone: Polar Pattern

    Omnidirectional

  • Microphone: Sensitivity, 1 kHz

    -48 dBV, 4.0 mV/Pascal

  • Microphone: Maximum SPL

    >120 dB SPL

  • Microphone: Equivalent Noise

    32 dBA

  • Microphone: Dynamic Range

    88 dB

  • Microphone: Output Impedance, 1 kHz

    3000 Ohms

  • Microphone: Power Requirements

    +5 VDC

  • Microphone: Current Consumption

    310 uA

  • Microphone: Polarity

    Positive Pressure on Diaphragm Produces a Positive Voltage on Pin 2

  • Microphone: Cable

    Length: 4' (1.22m)
    Diameter: 0.052" (1.32mm)

  • Microphone: TA4F Connector Wiring

    Pin 1 - Ground
    Pin 2 - Audio
    Pin 3 - Bias Voltage
    Pin 4 - Unused

  • Dimensions

    Microphone - Capsule (L x Dia.): 0.276 x 0.118"(7.01 x 3.00mm)
    Receiver (H x W x D): 1.72 x 7.5 x 5.9"(4.37 x 19.05 x 14.99cm)
    Transmitter (H x W x D): 3.8 x 2.38 x .92"(9.65 x 6.05 x 2.34cm)

  • Weight

    Microphone: 10.5g (0.37oz)
    Clip Only: 2.1g ( 0.07oz)

  • UPC Code

    800549423342

About Electro-Voice Omni Lapel System

The FMR-500 brings professional features and performance to the small and medium sized wireless microphone installs that are so popular today. One touch Auto ClearScan selects the clearest channel in the clearest group of compatible channels in just seconds with the push of one button. The new HT-500 programmable handheld microphone transmitter is the smallest Telex has ever built and it has a screw-on battery cover that also hides the controls and an LCD display.

• Up to 10 systems can operate simultaneously from the pre-set groups of channels in one operating band. Groups of 16 coordinated channels between the two bands are also pre-set
• Advanced ClearScan and one touch Auto ClearScan automatic group and channel selections, for quick and easy system setup
• Completely programmable in 25kHz steps across 28MHz for 1112 possible frequencies
• Backlit receiver LCD display shows the Group/Channel, Frequency, transmitter battery status, diversity operation and RF and Audio level meters
• Balanced XLR audio output for Microphone or Line level signals and a 1/4 inch line level jack to match any application
• Fourth generation Posi-Phase diversity and advanced audio circuits provide maximum range and professional sound quality
• Includes single and dual rack mount hardware with front mount antenna cables
• "Smart" battery circuit means there is no way to put the battery in wrong
• Tone Code plus Amplitude squelch with one button on/off

The WT-500 bodypack transmitter features a cell phone style belt clip, dual latching battery door and a TA4 connector with a wide variety of lapel and head worn microphone options. The combination of sound and RF features are hard to beat at twice the price.

RE97LTx Lavalier Microphone
The Electro-Voice RE97LTx is an ultra-miniature, omnidirectional, condenser microphone designed for applications that demand a high quality microphone element that is practically invisible when worn by the speaker or performer. The RE97LTx is intended for spoken-word use in theatrical performance, fixed installations, corporate AV presentations, houses of worship or any venue where a full-range, natural and well-balanced sound is required from an inconspicuous, lightweight microphone. The output of the RE97LTx is clean and accurate, while the omni-directional polar pattern ensures uniform output regardless of the microphone's angle relative to the sound source.

• Ultra-Miniature Size for Inconspicuous Use
• Omnidirectional Polar Pattern to Provide Clean Sound and Uniform Response
• Lightweight, Low Profile, Rugged Construction
• Superior Sound Quality
• Terminated with Female TA4F Connector for use with any EV Wireless Bodypack Transmitter
• Available in Black or Beige Finish

The provided clip is a convenient anchor for the microphone on a lapel, tie or shirt collar. The supplied windscreens can be utilized in windy environments and to reduce breath noise. The RE97LTx has a shielded 4ft cable terminated in a genuine Switchcraft TA4F connector and is ready for use with standard EV and Telex body-pack transmitters including the EV REV-BP, BPU-2/CSB-1000 and Telex WT-500/WT-1000. The wire to the body-pack is ultra flexible and may be easily concealed.

What's in the box:

  • Electro-Voice FMR-500 Diversity Receiver
  • WT-500 Belt-Pack Transmitter
  • RE97LTx Omnidirectional Lapel Microphone
  • Rack Mount Kit for Single/Dual Mount
  • 2x 1/4 Wave Antennas
  • Wall Pack Power Supply
  • Electro-Voice 3 Year Warranty
