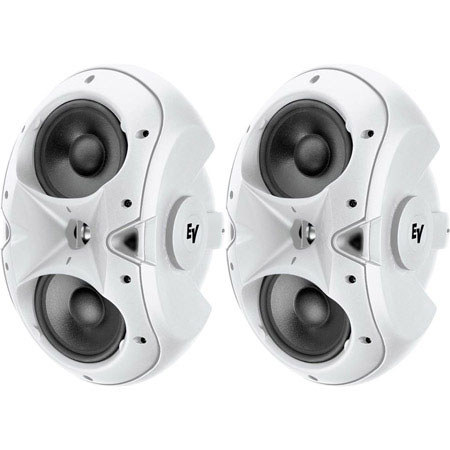

Electro-Voice EVID-3.2T 2-Way 150-Watt Installation Speaker with Dual 3.5" Woofers and .75" Titanium Tweeter and 70V/100V Transformer, Pair, White

SKU: EVID32TW

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2018-07-02T11:37:01

Rated 5 out of 5

Good, clean sspeakers

These speakers were purchased to replace two aging, in ceiling speakers that only covered a tiny section of the room. The 3.2Ts give us even sound coverage and very good clarity for both music and speaking. They are a little light volume wise and can't fully cut through the noise of a crowd but they do very well when it's on the quieter side. They're built like a tank and the adjustment arm is very flexible and easy to use.

ERIC V.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice EVID-3.2T Specifications

  • Active or Passive

    Passive

  • Chassis Size

    88.9 mm (3.5")

  • Input Connections

    Spring Terminal

  • Speaker Type

    Fullrange, Mid-High, Two-Way

  • Transformer Taps

    70 V: 5 W, 100 V:10 W

  • Frequency Response (-10 dB)

    85 - 20000 Hz

  • Sensitivity 1 W/1 m

    87 dB

  • Max. SPL/1m (calc)

    112 dB

  • Coverage (Nominal -6 dB)

    140deg. H

  • Coverage (Nominal -6 dB) V

    100deg. V

  • System Power Handling

    (Continuous/Peak) 75/300 Watts

  • LF Transducer

    Two 3.5"

  • HF Transducer

    0.75"

  • Nominal Impedance (Passive)

    8 Ohm

  • Minimum Impedance

    6 Ohm

  • Outdoor

    Yes

  • Dimensions

    9.2 x 5.1 x 6.5" (234 x 130 x 165mm)

  • Weight

    3.3 lbs. (1.5kg) each

About Electro-Voice EVID-3.2T

The Electro-Voice EVID-3.2T 2-Way 150-Watt Installation Speaker (Pair, White) is a surface mount installation speaker that features dual 3.5 woofers and a .75" tweeter handling 150 Watts, housed in a compact and flexibly mounted enclosure. The unit is equipped with a transformer for 70V and 100V use.

The EVID 3.2T features a durable and rugged ABS enclosure with a zinc-coated steel grill to protect all internal components, which include dual weather-resistant treated woofers and a symmetrically located high-frequency tweeter. The speaker design offers balanced, full-range sound with optimum coverage.

Mounting the EVID 3.2T is achieved via the SAM Strong-Arm-Mount), which attaches each unit to a variety of locations and allows for a high degree of horizontal and vertical directivity. Additionally, the SAM mounting mechanism in combination with the speakers' unique shape and size, allows for a sort of invisibility that works well in bar, restaurant or retail environments as a background music and paging solution.

Electro-Voice EVID-3.2T Features

  • Ultra-compact full range
  • Ideal for restaurants, bars, patios and retail
  • Vented LF enclosure
  • 0.75-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Magnetically shielded for video applications
  • Strong-Arm Mount for easy, flexible aiming
  • "T" version for 70 or 100 V distributed systems

Key Features

  • Ultra-compact full range
  • Ideal for restaurants, bars, patios and retail
  • Vented LF enclosure
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Magnetically shielded for video applications

What's in the box:

  • Electro-Voice 2 x EVID-3.2T 2-Way 150-Watt Installation Speaker
  • SAM (Strong-Arm-Mount) Assembly Kit
  • 2 x Large Logo Caps
  • 2 x Small Logo Caps
  • Hex Key
  • Owner's Manual
  • Electro-Voice 5 Years Warranty
