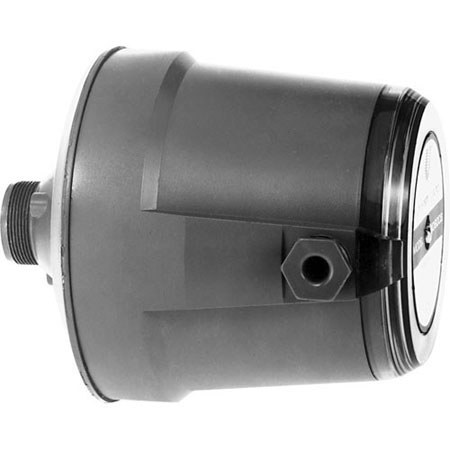

Electro-Voice ID60CT 60W Compression Driver with 25V/70.7V Transformer for Re-entrant Horns, Weather Resistant, 300-4000Hz Frequency Response, 8 Ohms Nom. Impedance

SKU: EVID60DT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the 'rim centered' ferrite magnet structures in the Electro-Voice ID60CT 60W Compression Driver?

The 'rim centered' ferrite magnet structures in the Electro-Voice ID60CT 60W Compression Driver contribute to its superior sound quality and performance. They provide a strong magnetic field for the voice coil, which helps to create clear, powerful sound.

How does the hinged cycolac rear housing improve the user experience?

The hinged cycolac rear housing offers easy access for connecting the compression driver to your sound system via a BX conduit connector. This design makes installation and maintenance simpler and more efficient.

What does it mean that the metal parts have undergone tropicalization?

Tropicalization is a process that enhances the resistance of the metal parts to high humidity and fungus. This makes the Electro-Voice ID60CT 60W Compression Driver particularly suitable for both indoor and outdoor applications in various climates.

What is the benefit of the field replaceable diaphragm assembly?

The field replaceable diaphragm assembly allows for easy replacement of the diaphragm in the field, without needing to send the entire unit back for repair. This feature enhances the product's versatility and user-friendliness.

Shopper : Why Did You Choose This?RICK T : The price was right

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice ID60CT Specifications

  • Frequency Response

    300 - 4,000 Hz +/-5 dB

  • Power Handling

    8 Hours, 6dB Crest Factor: 60 watts (500-5,000 Hz pink noise)

  • Impedance

    Nominal: 8 Ohms
    Minimum: 7.5 Ohms (Cobraflex Horns above 500 Hz)

  • SPL for 1W at 1m

    107dB

  • Voice Coil Diameter

    5.08cm / 2.0"

  • Magnet Material

    Strontium ferrite

  • Flux Density

    1.17 Tesla

  • Construction

    Rugged diecast housing with weatherproof finish for outdoor use

  • Mechanical Construction of Driver

    1 3/8"-18 thread, 1/2 long allows the ID60 to be mounted on any University Sound horn

  • Dimensions (Dia. X H)

    14.3 x 16.2cm / 5.62 x 6.37"

  • Weight

    3.4kg / 7.5lbs
    Magnet: 0.48kg / 1.06lbs

  • UPC Code

    800549363860

About Electro-Voice ID60CT

A robust and high-performing audio solution, the Electro-Voice ID60CT 60W Compression Driver with 25V/70.7V Transformer is expertly engineered for high-power public address installations. This advanced compression driver is equipped with durable phenolic diaphragms and 2" diameter voice coils, ensuring long-lasting reliability even under the most demanding operating conditions.

The ID60CT's unique "rim centered" ferrite magnet structures contribute to its superior sound quality and performance. For convenience and ease of use, it features a hinged cycolac rear housing, providing effortless access and connection to your sound system via a BX conduit connector.

This model also includes a plug-in, field replaceable diaphragm assembly, enhancing its versatility and user-friendliness. The transformer model (ID60DT) offers connections for 25-V and 70-V distributed systems, complete with a screwdriver-operated power-tap select switch for easy adjustments.

Designed with durability in mind, the exterior is finished in a hard-wearing material, while all metal parts have undergone tropicalization for enhanced resistance to high humidity and fungus. This makes the ID60CT an ideal choice for both indoor and outdoor applications, particularly those requiring rugged, high-power performance.

The ID60DT model also features a 1" screw-on exit, further enhancing its compatibility and ease of use. With its impressive power, versatility, and durability, the Electro-Voice ID60CT 60W Compression Driver with 25V/70.7V Transformer is a reliable choice for any high-power public address installation.

Electro-Voice ID60CT Features

  • 70/25V line-matching transformer
  • Humidity and fungus resistant exterior

Key Features

  • Durable phenolic diaphragms and 2" diameter voice coils for long-lasting reliability
  • "Rim centered" ferrite magnet structures for superior sound performance
  • Hinged cycolac rear housing and BX conduit connector for easy system connection
  • Transformer model with connections for 25-V & 70-V distributed systems & power-tap select switch

What's in the box:

  • Electro-Voice ID60DT Compression Driver with 25V/70.7V Transformer (60W)
  • Electro Limited 3 Year Warranty
