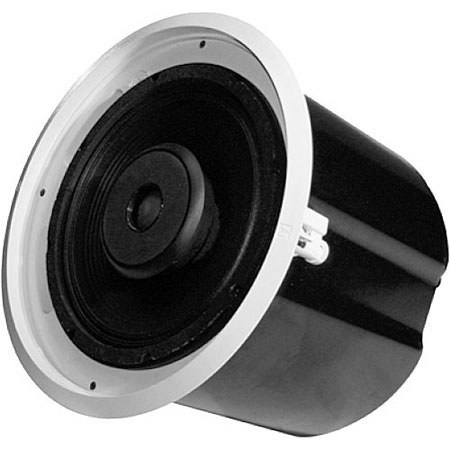

Telex EVID C12.2 12" Integrated Two-Way Coaxial Ceiling Loudspeaker System for 70V/100V Operation, 8 Ohms Nominal Impedence, 100dB Axial Sensitivity

The Telex EVID C12.2 loudspeaker system is a high efficiency two-way ceiling loudspeaker package for high ceiling applications. The loudspeaker features the EVID 920- 8B transducer, a 12" coaxial with high power handling and 100 dB sensitivity. The integrated 64W transformer allows for use in 70V/100V applications and includes automatic saturation compensation. Transformer tap selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel.

The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge steel and is has a durable black powder-coat that blends in when used in open ceiling applications. The rear enclosure provides an optimum internal volume for extended low- frequency performance. The EVID C12.2 can be suspended by an integrated 3/8" rigging point for use with threaded rod or it can be mounted using the 3 pendant mount tabs on the rear enclosure. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin phoenix type connector that allows direct connection to the speaker with 12 gauge wire and provides p ass through to additional speakers. A tile bridge is included for safe suspension of the C12.2 ceiling systems in a drop ceiling that uses mineral wool or other fiber-based ceiling tiles.
