19% Off

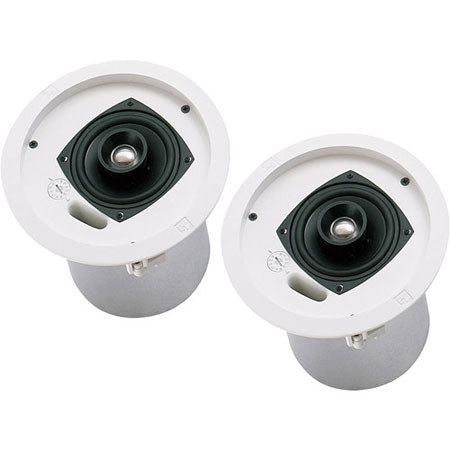

Electro-Voice EVID C4.2 4" 2-Way Coaxial Ceiling Loudspeaker, 65Hz-20kHz Frequency Response, 200W Peak/50W Continuous Power, 8 Ohms Impedance, Pair

SKU: EVIDC42 MFR: F.01U.117.585
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with these Electro-Voice coaxial ceiling loudspeakers.
  • Enjoy wide, 130-degree conical coverage from these commercial speakers for optimal audio.
  • These durable speakers offer a peak power of 200W, perfect for various audio solutions.
  • Achieve clear audio with a frequency response of 65Hz-20kHz in these ceiling speakers.
  • Easily install these in-ceiling speakers with included accessories and cutout template.
  • These Electro-Voice speakers ensure longevity with a 5-year warranty for peace of mind.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVID C10.1 Specifications

  • Frequency Response (-10 dB)

    65Hz - 20kHz

  • Coverage (Conical)

    130deg.

  • Power Handling

    50 W Cont. / 200 W Peak

  • Sensitivity (SPL 1W/1m)

    86dB

  • Max Calculated SPL

    103dB Cont./109dB Peak

  • Impedance

    8 Ohms nominal (transformer bypass)

  • Network

    Network and transducers protected, 12dB/oct 3.3kHz

  • LF Transducer

    3.94" / 100mm Polypropylene cone

  • HF Transducer

    0.75" / 19mm Ti Mylar laminate

  • Transformer Taps

    70V: 1.88, 3.75, 7.5, 15, or 30W
    100V: 3.75, 7.5, 15, or 30W
    Bypass: 8 Ohms

  • Connectors

    C4.2: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire
    C4.2D: Fire-safety rated input block, 3 terminal barrier strip accepts 12 ga wire

  • Enclosure Material

    Baffl e - UL 94V-O rated ABS
    Backcan - Zinc plated steel

  • Grille

    Perforated powder-coated steel with safety tether

  • Cutout Size

    7.2" / 183mm

  • Dimensions (H x Dia.)

    6.93 x 12.6" / 176 x 320mm

  • Weight

    Each: 5.95lbs / 2.7kg

  • UPC Code

    701001014651

About Electro-Voice EVID C10.1

When you seek superior audio performance and seamless integration into your ceiling, the Electro-Voice EVID C4.2 4" 2-Way Coaxial Ceiling Loudspeaker is an exceptional choice. This comprehensive ceiling loudspeaker package includes a bezel assembly, grille, rear enclosure, and a 4-inch coaxial two-way loudspeaker, all designed to deliver outstanding sound quality. The system features a waveguide-coupled titanium-coated dome tweeter, ensuring crisp and clear high-frequency reproduction.

The EVID C4.2 employs a sophisticated 2nd order crossover network at 3.3kHz, complete with a robust protection circuit to safeguard the network, woofer, and tweeter drivers from excessive power levels. This ensures long-lasting performance and reliability. The integrated transformer offers versatile power options, allowing you to select from 1.88 (70V only), 3.75, 7.5, 15, or 30 watts, compatible with both 70-V and 100-V lines, or an 8 Ohms bypass. This selection is easily adjustable via a convenient switch located on the front baffle.

Designed with both aesthetics and durability in mind, the loudspeaker's perforated grille is finished in a semi-gloss white powder-coated enamel, blending seamlessly with most ceiling designs. The baffle and bezel are crafted from UL 94V-0 rated ABS, ensuring fire safety and resilience. The rear enclosure, made from zinc-plated heavy-gauge steel, is lined with fiberglass damping material to optimize internal volume for enhanced low-frequency performance.

For easy installation, the rear cover includes a provision for a junction box fitting, providing access to a 4-pin terminal block that supports direct connection with 12-gauge wire and pass-through to additional speakers. The EVID C2.4D model also features a 3-pin fire-safety rated input block for added security. A tile bridge is included to ensure safe suspension in drop ceilings with mineral wool or other fiber-based tiles.

The EVID line of ceiling speakers is engineered to function cohesively across various ceiling constructions, offering wide dispersion, high efficiency, and high maximum output. Whether for music or voice, the EVID C4.2 delivers wide-range audio reproduction with ease of installation, making it an ideal solution for diverse audio environments.

Electro-Voice EVID C10.1 Features

  • Designed for air-handling spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 0.75-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ohms use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille

Key Features

  • Experience superior sound quality with these Electro-Voice coaxial ceiling loudspeakers.
  • Enjoy wide, 130-degree conical coverage from these commercial speakers for optimal audio.
  • These durable speakers offer a peak power of 200W, perfect for various audio solutions.
  • Achieve clear audio with a frequency response of 65Hz-20kHz in these ceiling speakers.
  • Easily install these in-ceiling speakers with included accessories and cutout template.
  • These Electro-Voice speakers ensure longevity with a 5-year warranty for peace of mind.

What's in the box:

  • Electro-Voice 2x EVID C4.2 4 " 2-Way Coaxial Ceiling Loudspeaker
  • 4x Tile rails
  • 2x C-ring support
  • 2x Grille
  • Owner's manual
  • 4x Support ring screws
  • 2x Terminal connector
  • Service center card
  • Cutout template
  • 2x Paint Shield
  • Electro-Voice 5 Year Warranty
