16% Off

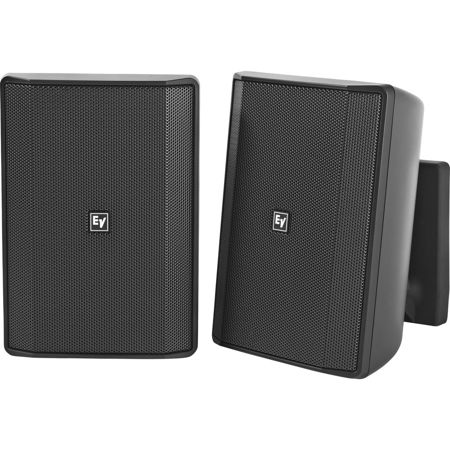

Electro-Voice EVID-S5.2T 5.25" 2-Way 70/100V Commercial Loudspeaker, Pair, Black

SKU: EVIDS52TB MFR: F.01U.332.736
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with these Electro-Voice 2-way commercial loudspeakers.
  • Enjoy flexible connectivity options with the included 4-pin Euroblock connector.
  • These 5.25" speakers deliver powerful audio, perfect for background or foreground music.
  • Achieve optimal coverage with a wide 90° x 90° dispersion, ideal for various spaces.
  • Benefit from easy installation with included wall-mount brackets and accessories.
  • Durable fire-rated ABS plastic enclosure ensures lasting aesthetics and performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$24.99

2 Year

$40.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVID-S5.2T Specifications

  • Color

    Black

  • Driver

    LF: 5.25" (133mm)
    HF: 0.75" (20mm)

  • Connector Type

    1x 4-pin Euroblock connector (removable, locking)

  • Maximum Wire Size

    12 AWG (2.5 mm)

  • Coverage

    Horizontal: 90 Degree (nominal -6 dB)
    Vertical: 90 Degree (nominal -6 dB)

  • Environmental Specifications

    IP54 (per IEC-60529)

  • Frequency Response

    60 Hz to 20 kHz (-10 dB)
    85 Hz to 20 kHz (-3 dB)

  • Sensitivity

    90 dB (half space on wall averaged 100 Hz to 10 kHz, 1 W)

  • Maximum SPL

    109 dB calculated, 115 dB peak

  • Power Handling

    300 W peak (75 W with continuous pink noise for 100 hours)

  • Low Impedance

    Yes

  • Impedance

    Nominal: 8 Ohms
    Minimum: 6.4 Ohms

  • Transformer

    30 W

  • Transformer Taps

    3.7 W (70 V only), 7.5 W, 15 W, 30 W

  • Enclosure Material

    Fire-rated ABS plastic

  • Dimensions (H x W x D)

    10.0 x 7.1 x 5.9" (255 x 180 x 151mm)

  • Weight

    7 lb (3.2kg)

  • UPC Code

    800549845342

About Electro-Voice EVID-S5.2T

Become immersed in the superior sound quality of the EVID-S5.2T 5.25" 2-Way 70/100V Commercial Loudspeaker from Electro-Voice. This high-performance, full-range surface mount speaker delivers exceptional, wide and uniform coverage, making it a top choice for both background and foreground music, paging, and sound reinforcement.

Designed to excel in a multitude of indoor and outdoor settings, the EVID-S5.2T is perfect for restaurants, bars, patios, retail spaces, fitness clubs, hospitality venues, theme parks, and leisure venues. Its sturdy weather resistance, modern aesthetics, and flexible mounting options make it an ideal solution for a wide array of surface mount applications.

The EVID-S5.2T comes equipped with a unique and innovative mounting system from Electro-Voice, designed to make every installation quick, simple, and reliable. This system allows for 90 degrees of horizontal rotation and 45 degrees of vertical rotation, facilitating easy installation on walls and ceilings.

This speaker utilizes a 30 W transformer, offering a selection of 3.7 W (70 V only), 7.5 W, 15 W, or 30 W delivered to the speaker system using either 70 V or 100 V lines, or an 8 Ohm bypass for low impedance lines. The selection is made easy with a convenient switch located on the input panel at the rear of the speaker.

Engineered to resist outdoor environments without compromising indoor performance, the EVID-S5.2T is IP54 rated. Its weather-proofing is enhanced with a cabinet and grille designed to resist sun, salt, and moisture. Available in black or white, these speakers can be easily painted to match any decor. Transformer versions are also available for constant voltage systems.

The EVID-S5.2T is part of the wide range of EVID surface mount speakers, designed to work together as a complete system in various surface mount constructions, and can be used in combination with other EVID ceiling and in-wall speakers. Experience the superior sound quality and versatility of the EVID-S5.2T 5.25" 2-Way 70/100V Commercial Loudspeaker.

Electro-Voice EVID-S5.2T Features

  • Innovative mount system is included for quick, simple, and reliable installations
  • Carefully engineered for outdoor environments (IP54), without compromising performance
  • Long throw 5.25" (133 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 60 Hz
  • 75 W power handling provides for 109 dB maximum SPL (115 dB peak)

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound quality with these Electro-Voice 2-way commercial loudspeakers.
  • Enjoy flexible connectivity options with the included 4-pin Euroblock connector.
  • These 5.25" speakers deliver powerful audio, perfect for background or foreground music.
  • Achieve optimal coverage with a wide 90° x 90° dispersion, ideal for various spaces.
  • Benefit from easy installation with included wall-mount brackets and accessories.
  • Durable fire-rated ABS plastic enclosure ensures lasting aesthetics and performance.

What's in the box:

  • 2x EVID-S5.2T 5.25 " 2-Way 70/100V Commercial Loudspeaker (Black)
  • 2x Wall-Mount Brackets
  • 2x Dust Covers
  • 1x Allen Wrench
  • 2x Spare Grille Logos
  • 2x Safety Screws for Mounting Brackets
  • 2x Safety Screw Caps for Mounting Brackets
  • 2x Covers for Locking Bolts
  • 2x Flush Input Covers
  • 8x Screws for Flush Input Covers
  • Electro-Voice 5 Year Limited Warranty
