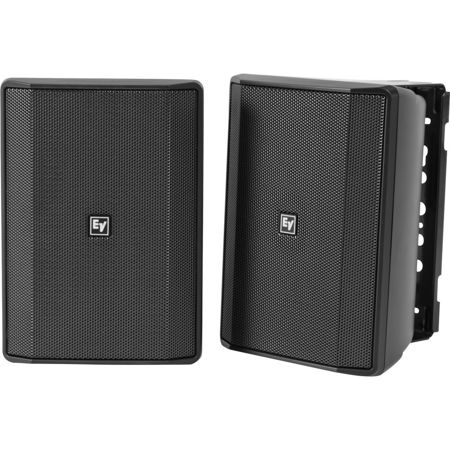

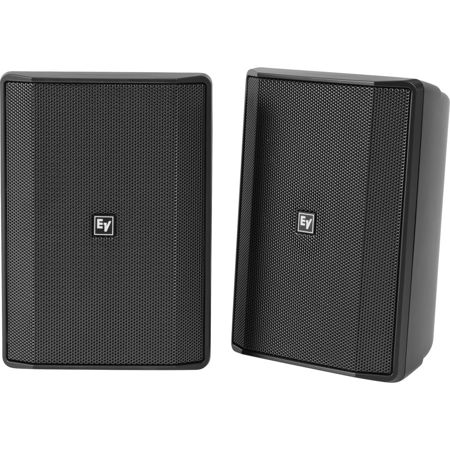

Electro-Voice EVID-S5.2X 5.25" 2-Way 70/100V IP65-Rated Commercial Loudspeaker, Pair, Black

SKU: EVIDS52XB MFR: F.01U.332.738
Earn VIP Reward Points

Key Features

  • Experience superior audio with these Electro-Voice speakers, perfect for home theaters.
  • Enjoy flexible installation; mount these durable speakers on walls or ceilings easily.
  • These IP65-rated speakers are weather-resistant, ideal for indoor and outdoor sound.
  • Achieve wide sound dispersion with 90° coverage, creating an immersive audio experience.
  • Get powerful sound with 300W peak handling, ensuring clear audio at high volumes.
  • These 2-way speakers deliver a broad frequency response, from 55 Hz to 20 kHz, for rich sound.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$26.99

2 Year

$44.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVID-S5.2X Specifications

  • Color

    Black

  • Driver

    LF: 5.25" (133mm)
    HF: 0.75" (20mm)

  • Connector Type

    1x 4-pin Euroblock connector (removable, locking)

  • Maximum Wire Size

    12 AWG (2.5 mm)

  • Coverage

    Horizontal: 90 Degree (nominal -6 dB)
    Vertical: 90 Degree (nominal -6 dB)

  • Environmental Specifications

    IP65 (per IEC-60529)

  • Frequency Response

    55 Hz to 20 kHz (-10 dB)
    90 Hz to 20 kHz (-3 dB)

  • Sensitivity

    89 dB (half space on wall averaged 100 Hz to 10 kHz, 1 W)

  • Maximum SPL

    108 dB calculated, 114 dB peak

  • Power Handling

    300 W peak (75 W with continuous pink noise for 100 hours)

  • Low Impedance

    Yes

  • Impedance

    Nominal: 8 Ohms
    Minimum: 6.5 Ohms

  • High-Pass Filter

    Recommended: 60 Hz (24 dB/octave)

  • Transformer

    60 W

  • Transformer Taps

    70 V: 60 W, 30 W, 15 W, 7.5 W, 8 Ohms
    100 V: 60 W, 30 W, 15 W, 8 Ohms

  • Enclosure Material

    Fire-rated ABS plastic

  • Dimensions (H x W x D)

    10.0 x 7.1 x 5.8" (255 x 180 x 148mm)

  • Weight

    7.1 lb (3.2kg)

  • UPC Code

    800549845366

About Electro-Voice EVID-S5.2X

Be captivated by the powerful and clear sound of the EVID-S5.2X 5.25" 2-Way 70/100V IP65-Rated Commercial Loudspeaker, a high-quality product from the reputable brand, Electro-Voice. This durable and stylish loudspeaker is designed to deliver exceptional audio performance in both indoor and outdoor settings, making it an ideal choice for commercial use in venues like retail stores, restaurants, fitness clubs, and theme parks.

Engineered for superior sound reinforcement, this full-range, surface mount speaker boasts a wide and uniform dispersion. Whether you need it for background music, voice evacuation, paging, or foreground music, the EVID-S5.2X ensures outstanding performance. Its sleek and modern design complements any setting, while its robust construction offers exceptional resistance against sun, salt, moisture, and chlorine.

The EVID-S5.2X is not just about high-quality sound and stylish looks. It's also about convenience and flexibility. The speaker comes with a versatile U-Bracket, designed with the installer in mind, allowing for a wide range of installation applications and up to 80 degrees of rotation.

This reliable loudspeaker is equipped with a 60W transformer, offering a selection of 7.5W (70V only), 15W, 30W, or 60W delivered to the speaker system using either 70V or 100V lines, or 8Ohm bypass for low impedance lines. The selection is easily done with a switch on the input panel located on the rear of the speaker.

The EVID-S5.2X is part of the comprehensive range of EVID surface mount speakers, designed to work together as a complete system in various surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers. Experience the difference with the EVID-S5.2X 5.25" 2-Way 70/100V IP65-Rated Commercial Loudspeaker, a testament to Electro-Voice's commitment to delivering high-quality audio equipment.

Electro-Voice EVID-S5.2X Features

  • Carefully engineered for the toughest weather conditions (IP65)
  • Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55 Hz
  • 90 W power handling provides for 108 dB maximum SPL (114 dB Peak)
  • 60 W transformer with 8Ohm pass-through

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with these Electro-Voice speakers, perfect for home theaters.
  • Enjoy flexible installation; mount these durable speakers on walls or ceilings easily.
  • These IP65-rated speakers are weather-resistant, ideal for indoor and outdoor sound.
  • Achieve wide sound dispersion with 90° coverage, creating an immersive audio experience.
  • Get powerful sound with 300W peak handling, ensuring clear audio at high volumes.
  • These 2-way speakers deliver a broad frequency response, from 55 Hz to 20 kHz, for rich sound.

What's in the box:

  • 2x EVID-S5.2X 5.25 " 2-Way 70/100V IP65-Rated Commercial Loudspeaker (Black)
  • 1x Allen Wrench
  • 4x Safety Screws for U-Brackets
  • 2x U-Brackets
  • 2x Weather Covers
  • 8x Weather Cover Screws
  • 2x Spare Grille Logos
  • Electro-Voice 5 Year Limited Warranty
