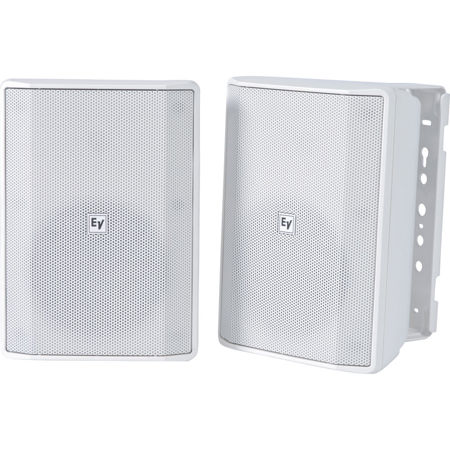

Electro-Voice EVID-S5.2X 5.25" 2-Way 70/100V IP65-Rated Commercial Loudspeaker, Pair, White

SKU: EVIDS52XW MFR: F.01U.332.739
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with these Electro-Voice commercial loudspeakers.
  • Enjoy flexible installation options for seamless integration with your sound system.
  • These durable, IP65-rated speakers are perfect for indoor or outdoor use.
  • Achieve optimal audio coverage with a wide 90° x 90° dispersion angle.
  • These speakers offer both low impedance and transformer options for versatile use.
  • The sleek, white aesthetic design complements any home or commercial environment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$26.99

2 Year

$44.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVID-S5.2X Specifications

  • Color

    White

  • Driver

    LF: 5.25" (133mm)
    HF: 0.75" (20mm)

  • Connector Type

    1x 4-pin Euroblock connector (removable, locking)

  • Maximum Wire Size

    12 AWG (2.5 mm)

  • Coverage

    Horizontal: 90 Degree (nominal -6 dB)
    Vertical: 90 Degree (nominal -6 dB)

  • Environmental Specifications

    IP65 (per IEC-60529)

  • Frequency Response

    55 Hz to 20 kHz (-10 dB)
    90 Hz to 20 kHz (-3 dB)

  • Sensitivity

    89 dB (half space on wall averaged 100 Hz to 10 kHz, 1 W)

  • Maximum SPL

    108 dB calculated, 114 dB peak

  • Power Handling

    300 W peak (75 W with continuous pink noise for 100 hours)

  • Low Impedance

    Yes

  • Impedance

    Nominal: 8 Ohms
    Minimum: 6.5 Ohms

  • High-Pass Filter

    Recommended: 60 Hz (24 dB/octave)

  • Transformer

    60 W

  • Transformer Taps

    70 V: 60 W, 30 W, 15 W, 7.5 W, 8 Ohms
    100 V: 60 W, 30 W, 15 W, 8 Ohms

  • Enclosure Material

    Fire-rated ABS plastic

  • Dimensions (H x W x D)

    10.0 x 7.1 x 5.8" (255 x 180 x 148mm)

  • Weight

    7.1 lb (3.2kg)

  • UPC Code

    800549845373

About Electro-Voice EVID-S5.2X

Explore the superior sound quality and versatility of the EVID-S5.2X 5.25" 2-Way 70/100V IP65-Rated Commercial Loudspeaker from Electro-Voice. This high-performance, full-range surface mount speaker delivers exceptional wide, uniform dispersion and outstanding performance, making it an ideal choice for both background and foreground music, voice evacuation, paging, and sound reinforcement.

Designed to excel in a wide variety of indoor and outdoor applications, the EVID-S5.2X is perfect for establishments such as restaurants, bars, retail stores, fitness clubs, and hospitality venues, as well as outdoor spaces like patios, theme parks, and leisure venues. Its modern and delicate look complements any decor, while its flexible mounting options and unparalleled ease-of-installation make it a convenient choice for any location.

Engineered to withstand the harshest weather conditions, the EVID-S5.2X offers exceptional durability without compromising on indoor performance. Its IP65 rating ensures protection against dust and water, while its robust cabinet and grille offer resistance against sun, salt, moisture, and chlorine.

The EVID-S5.2X comes with a versatile U-Bracket designed with the installer in mind, allowing for a wide range of installation applications and up to 80 degrees of rotation. The speaker utilizes a 60W transformer, offering a selection of 7.5W (70V only), 15W, 30W, or 60W delivered to the speaker system using either 70V or 100V lines, or an 8Ohm bypass for low impedance lines.

The EVID-S5.2X is part of the comprehensive range of EVID surface mount speakers, designed to work together as a complete system in various surface mount constructions, and can be used in combination with other EVID ceiling and in-wall speakers. Experience the innovative design and high-quality sound of Electro-Voice with the EVID-S5.2X 5.25" 2-Way 70/100V IP65-Rated Commercial Loudspeaker.

Electro-Voice EVID-S5.2X Features

  • Carefully engineered for the toughest weather conditions (IP65)
  • Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55 Hz
  • 90 W power handling provides for 108 dB maximum SPL (114 dB Peak)
  • 60 W transformer with 8Ohm pass-through

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound quality with these Electro-Voice commercial loudspeakers.
  • Enjoy flexible installation options for seamless integration with your sound system.
  • These durable, IP65-rated speakers are perfect for indoor or outdoor use.
  • Achieve optimal audio coverage with a wide 90° x 90° dispersion angle.
  • These speakers offer both low impedance and transformer options for versatile use.
  • The sleek, white aesthetic design complements any home or commercial environment.

What's in the box:

  • 2x EVID-S5.2X 5.25 " 2-Way 70/100V IP65-Rated Commercial Loudspeaker (White)
  • 1x Allen Wrench
  • 4x Safety Screws for U-Brackets
  • 2x U-Brackets
  • 2x Weather Covers
  • 8x Weather Cover Screws
  • 2x Spare Grille Logos
  • Electro-Voice 5 Year Limited Warranty
