The MB200 U-Bracket Kit is specifically designed for Electro-Voice System 200 speakers, including SB122/SB122PI/SX100/SX300 models.
Flying installation refers to the method of suspending speakers in the air, either horizontally or vertically, using rigging hardware. The MB200 U-Bracket Kit provides secure attachment points for this type of setup.
The MB200 U-Bracket Kit includes the U-bracket, a hex head bolt, a lock washer, and a friction washer.
Yes, the MB200 U-Bracket Kit is designed with a robust and high-quality structure to ensure durability and stability during speaker installation.
Yes, the MB200 U-Bracket Kit allows for two System 200 speakers to be flown together in a vertical position, offering more flexibility in your audio setup.
Review Summary
SB122, SB122PI, SX100 and SX300 speakers
Three 8mm (5/16") diameter holes spaced 20.3cm (7.99") apart
Two 8mm (5/16") diameter holes, top and bottom
10-gauge cold-rolled steel
Black wrinkle powdered coat
3.4kg / 7.5lbs

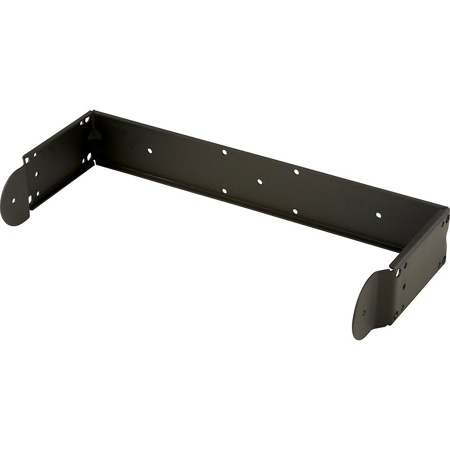

Discover the versatility and reliability of the Electro-Voice MB200 Wall/Ceiling U-Bracket Kit in Black. This robust and high-quality mounting solution is meticulously designed to accommodate the installation of System 200 speakers in a multitude of ways. Whether you're looking to mount your speakers on the wall or ceiling, this sturdy bracket kit offers the flexibility you need to achieve optimal sound coverage in any space.
The robust design of the MB200 installation bracket ensures your System 200 speakers can be securely mounted in virtually any position. This allows you to customize your audio setup to your specific needs, ensuring the best possible sound quality in any environment.
For flying installations, the MB200 bracket securely "captures" the speaker within a rigid frame. This frame features structurally sound locations for attaching rigging hardware, providing a safe and secure method for speaker installation. The attachment points consist of four 12.7mm (1/2") diameter holes situated at the ends of the bracket, allowing for easy connection of a 3/8" "quick link" or similar hardware.
With the MB200 Wall/Ceiling U-Bracket Kit, you have the option to fly your System 200 speakers individually in either a horizontal or vertical position. Alternatively, two speakers can be flown together vertically, providing even more flexibility in your audio setup. Experience the difference in sound quality and installation ease with this durable and reliable bracket kit from Electro-Voice.
