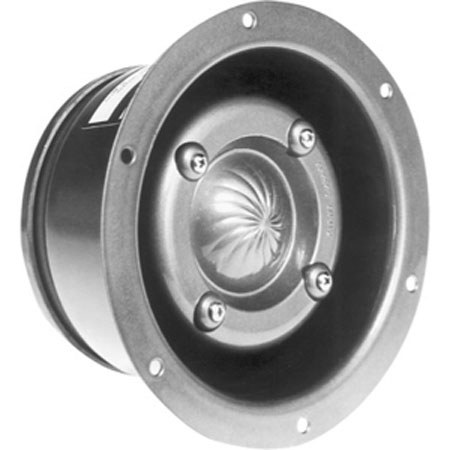

Electro-Voice MM2F 25W Commercial Sound Paging Projector, Gray
See all Electro-Voice items

Electro-Voice MM2F 25W Commercial Sound Paging Projector, 800-5000Hz, 16 Ohms Impedance, 82x82 deg. Dispersion, Submergence Proof, Integrated Swivel Mount, Gray

SKU: EVMM2F
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice MM2F Specifications

  • Frequency Response

    800-5,000 Hz +/-5 dB

  • Power Handling

    25 watts (500-5,000 Hz pink noise) (8 Hours, 6 dB Crest Factor)

  • Impedance

    Nominal: 16 Ohms

  • SPL, Input Average

    Pink Noise Band-Limited from 500-5,000 Hz: 104 dB

  • Beamwidth

    Horizontal: 82 deg. at 2 kHz
    Vertical: 82 deg. at 2 kHz

  • Directivity Factor Q

    10.25 at 2 kHz

  • Usable Low-Frequency Limit

    600 Hz

  • Construction

    Heavy-gauge spun aluminum case and die-cast aluminum center assembly. All metal speaker parts are of anodized aluminum with baked-on acrylic paint. Diaphragm is phenolic impregnated linen-base

  • Voice Coil Diameter

    2" / 5.08cm

  • Magnet Material

    Alnico V

  • Flux Density

    1.30 Tesla

  • Dimensions (Dia. X D)

    18.4 x 9.5cm / 7.24 x 3.74"

  • Weight

    2.8kg / 6.17lbs
    Magnet: 0.93kg / 2.05lbs with plates

About Electro-Voice MM2F

The Electro-Voice MM2F 25W Commercial Sound Paging Projector (Gray) is a submergence-proof speaker rated at 25 watts, for use in public address or paging applications. The drivers employ a diaphragm with a phenolic impregnated linen-base and 2" voice coil, with a "W" shaped Alnico V magnet structure. The MM2F is made with six holes in its outer flange for flush mounting.

The voice-coil/diaphragm assembly is protected by a special anti-fungicide treatment and is easily accessible for cleaning by removal of the diecast reflector on the front of the speaker. The MM2F is self-draining and designed to withstand fungus, dust, salt spray, live steam and gases. It is built to penetrate high noise levels in boiler rooms, mines, railroads, etc.

Electro-Voice MM2F Features

  • Speaker rated at 25 watts
  • Diaphragm with a phenolic impregnated linen-base and 2" voice coil

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior sound quality with this Electro-Voice 25W paging projector.
  • Achieve clear audio in commercial spaces using this durable horn loudspeaker.
  • Benefit from wide sound dispersion, covering 82x82 degrees for optimal coverage.
  • Enjoy long-lasting performance with its submergence-proof, rugged construction.
  • Easily install with the integrated swivel mount for versatile positioning options.
  • Get exceptional voice clarity for paging and announcements with its design.

What's in the box:

  • Electro-Voice MM2F 25W Commercial Sound Paging Projector
  • Electro-Voice 3 Year Limited Warranty
