Telex Electro-Voice MM2TC 25W Surface-Mount Waterproof Paging Projector, Gray
See all Telex items

Telex MM2TC 25W Surface-Mount Waterproof Paging Projector, 82x82 deg., 800-5000Hz16 Ohms Impedance, 104dB SPL, Submergence-Proof, Gray

SKU: EVMM2TC

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Telex MM2TC Specifications

  • Frequency Response

    800-5,000 Hz +/- 5 dB

  • Power Handling

    8 Hours, 6-dB Crest Factor: 25W (500-5,000 Hz pink noise)

  • Impedance

    16 Ohms

  • Sound Pressure Level

    at 1 Meter, 1 Watt Input Average, Pink Noise Band-Limited from 800-5,000 Hz: 104dB

  • Horizontal Beamwidth

    82 deg. at 2 kHz

  • Vertical Beamwidth

    82 deg. at 2 kHz

  • Directivity Factor R? (Q)

    10.25 at 2 kHz

  • Usable Low-Frequency Limit

    600Hz

  • Magnet Material

    Alnico V

  • Voice-Coil Diameter

    2.01" / 5.1cm

  • Dimensions (H x W x D)

    10 x 6.46 x 4.45" / 25.4 x 16.4 x 11.3cm

  • Weight

    8.82lbs / 4kg
    Magnet: 2.05lbs / 0.93kg

  • UPC Code

    192223057135

About Telex MM2TC

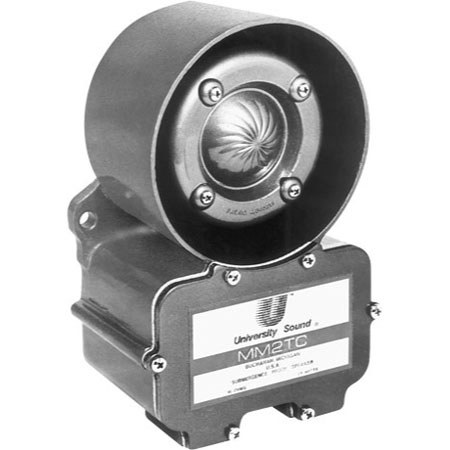

The Electro-Voice MM2TC 25W Surface-Mount Waterproof Gray Paging Projector is a conservatively rated 25-watt "submergence-proof" speaker designed for wall, ceiling or bulkhead mounting. The driver employs a diaphragm with a phenolic impregnated linen-base and 2.0-inch voice coil with "W" shaped Alnico V magnet structure. Provisions are made in the housing for installation of a matching transformer such as the University Sound model 5030 (30 W).

The voice-coil/diaphragm assembly is protected by a special anit-fungicide treatment and is easily accessible for cleaning by removal of the die-cast reflector on the front of the speaker. The MM2TC is self-draining and designed to withstand fungus, dust, salt spray, live steam and gases. It is built to penetrate high noise levels in boiler rooms, mines, railroads, etc.

Telex MM2TC Features

  • Rugged die-cast aluminum case and transformer housing. Diaphragm is phenolic impregnated linen-base
  • All metal speaker parts are of anodized aluminum with baked-on acrylic paint
  • A cable entrance is provided on the bottom side

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • All metal speaker parts are of anodized aluminum
  • A cable entrance is provided on the bottom side

What's in the box:

  • Electro-Voice MM2TC 25W Surface-Mount Waterproof Paging Projector
  • Electro-Voice 3 Year Warranty
