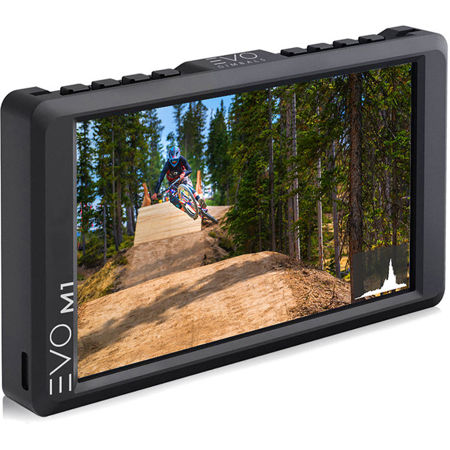

EVO M1 5.7" 1920x1080 True HD Field Monitor for Gimbals
See all EVO items

EVO M1 5.7" 1920x1080 True HD Field Monitor with 4K Pass Through & Intelligent Overlay for Gimbals

SKU: EVO50638

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

EVO M1 Specifications

  • Size

    5.7" IPS

  • Resolution

    1920x1080

  • Aspect Ratio

    16:09

  • Brightness

    460cd/m2

  • Contrast Ratio

    1400:01:00

  • Backlight

    LED

  • Audio

    Stereo Headphone

  • Input Voltage

    DC7-24V

  • Power Draw

    <=8W

  • Working Temp

    -4 Degree to 131 Degree F (-20 Degree C to 55 Degree C)

  • Storage Temp

    -22 Degree to 149 Degree F (-30 Degree C to 65 Degree C)

  • Mount Type

    1/4"-20 Threaded Adapter

  • UPC Code

    852709005561

About EVO M1

Whether you are filming a wedding, a music video or a client's commercial you need to make sure your images are sharp and captured at the highest quality possible. Based on the same technology found in Hollywood-grade studio monitors, the EVO M1 features powerful focus and exposure tools to help you get the most out of each and every shot.

For power the EVO M1 comes with an industry standard NP-F970 series battery tray (batteries sold separately) and features a direct 12V DC input (requires adapter) as an alternate power source. if you already have a 12V power system on your rig.

4K HDMI Pass-Through
With 4K HDMI pass-through input and output, the EVO M1 monitor allows you to interface with other 4K compatible devices such as monitors and recorders - perfect for directors and studio recording. Listen to audio in the feed using the 3.5mm headphone jack on the bottom of the monitor.

EVO M1 Features

  • High Performance: 5.7" IPS display with a high performance 1400:1 contrast ratio and 460cd/m2 brightness rating
  • 100% Aluminum Housing with standard 1/4-20 UNC mounting threads on the bottom and side
  • Dual HDMI Built-in 4K Pass-through for other devices such as monitors and recorders
  • Advanced On Screen Features: Brightness Histogram, Peaking Focus Assist, False Colors Zebra Exposure, Check Field, Camera Mode, Anamorphic Mode, Image Flip Image Freeze, Center Marker, Screen Marker, Ratio marker, Color Temperature Adjustment, Nine Grid, Zoom

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High Performance: 5.7" IPS display with a high performance 1400:1 contrast ratio and 460cd/m2 brightness rating
  • 100% Aluminum Housing with standard 1/4-20 UNC mounting threads on the bottom and side
  • Dual HDMI Built-in 4K Pass-through for other devices such as monitors and recorders

What's in the box:

  • M1 5.7 " HD Field Monitor
  • Mini HDMI Cable
  • Sunshade
  • Hot Shoe Mount
  • F970 Battery Adapter
  • 1/4-20 UNC Thread Mount
  • M1 User Manual
  • EVO 1 Year Limited Warranty
  • ( "Batteries Not Included ")
