Electro-Voice QRx 112/75 Specifications

  • Frequency Response

    - 3 dB: 75Hz - 15kHz
    - 10 dB: 52Hz - 18kHz

  • Axial Sensitivity

    SPL, 1 watt at 1 m, Passive: 98 dB
    SPL, 1 watt at 1 m, Biamp (LF/HF): 100/112 dB

  • Impedance

    Passive: 8 Ohms
    Biamp (LF/HF): 8/8 Ohms

  • Power Handling

    Passive - Long-Term EIA: 300 watts
    Short-term peak: 1200 watts
    Biamp - LF Long-Term EIA: 300 watts
    Short-term peak: 1200 watts
    Biamp - HF Long-Term AES: 75 watts
    Short-term peak: 300 watts

  • Calculated Maximum SPL Output

    Long-Term: 125 dB
    Peak: 131 dB

  • Nominal Coverage Angle

    Horizontal (-6 dB): 75 deg.
    Vertical (-6 dB): +15/-35 Deg

  • LF Section & Components

    12" woofer in vented enclosure

  • HF Section & Components

    DH7 compression driver with 3" titanium diaphragm on asymmetric 75 x 50 horn

  • System Configuration

    Two-way, full-range

  • Powering Configuration

    Switchable passive or biamp

  • Passive Crossover Frequency

    1800 Hz

  • Cabinet Type (shape)

    Modified trapezoid

  • Enclosure Material

    13-ply birch plywood

  • Connectors

    Two Neutrik NL4

  • Suspension Hardware

    L-track top and bottom, Single-stud plate on back for pull up

  • Grille

    Powder-coated 16-GA steel

  • Dimensions

    Trapezoid Angle: 10 deg. per side
    H x D: 26.6 x 16.02" / 67.56 x 40.69cm
    Width at front: 15.35" / 38.98cm
    Width at back: 6.86" / 17.42cm

  • Weight

    58lbs / 26.30kg

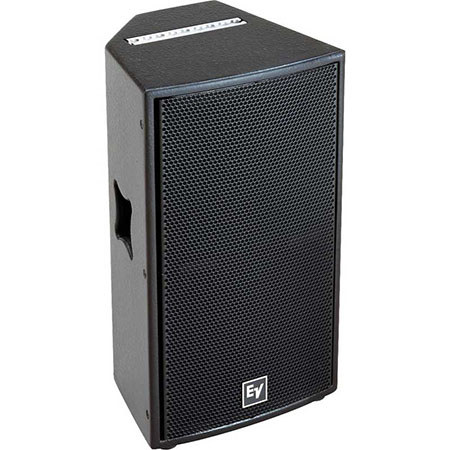

About Electro-Voice QRx 112/75

The Electro-Voice QRX 112/75 12" 2-Way Full-Range Black Loudspeaker (Single) incorporates a 12" woofer and a 3-inch voice coil compression driver on an asymmetrical 75-degree x 50-degree fully rotatable constant-directivity horn. In factory-delivered position the horn provides a 15-degree up/35-degree down vertical coverage pattern. The five-sided cabinet design allows this main PA system cabinet to easily conform to duties as a floor monitor or to be tucked tightly against a ceiling for low-profile applications. The fully rotatable horn means that regardless of cabinet position, pattern control is fully user-determined.

The QRX-112/75 is a good solution for small-to-medium size rooms as a main PA, providing optimized midrange reproduction for speech intelligibility and vocal clarity at moderate levels. As a floor monitor, the tight and clear midrange coupled to a large format HF diaphragm helps cut through stage rumble while delivering smooth reproduction. The asymmetrical horn can allow a single box to more adequately direct the high frequencies as needed, as well as streamline multi cabinet arrays by extending horizontal coverage while minimizing overlapping and allowing tighter packs between the cabinets.

Electro-Voice QRx 112/75 Features

  • 15" woofer, 1" titanium high-frequency compression driver
  • Handles up to 1200W peak (300W continuous)
  • 52 Hz to 19 kHz frequency range (-10 dB), 77 Hz to 16 kHz frequency response (-3 dB)
  • Durable polypropylene enclosure
  • 90 Degree horizontal coverage, 60 Degree vertical coverage
  • Integrated handles and three M10 suspension points

Key Features

  • For Live Stage, DJ Setups, Mobile Rigs
  • Handles up to 1200W Peak
  • 15" Woofer, 1" HF Drive
  • 52 Hz to 19 kHz Frequency Range

What's in the box:

  • Electro-Voice QRx 112/75 12 " 2-Way Full-Range Loudspeaker
  • 3x SST-1 Single Stud
  • Electro-Voice 3 Year Warranty
