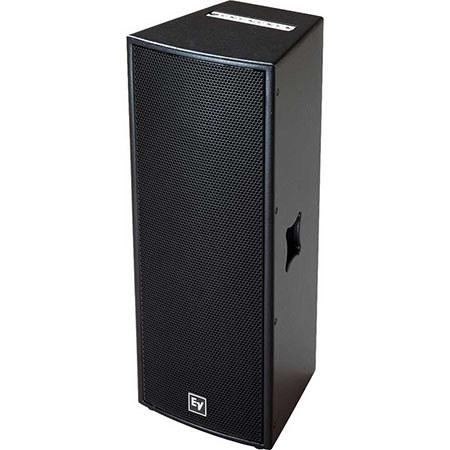

Telex QRx 212/75 Dual 12" 2-Way Full-Range Loudspeaker, 75Hz Frequency Response at -3dB, 4 Ohms Passive Impedance, 600W Passive/Biamp, Single, Black

SKU: EVQRX21275BK

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Telex QRx 212/75 Specifications

  • Frequency Response

    - 3 dB: 75Hz
    - 10 dB: 52Hz

  • Axial Sensitivity

    SPL, 1 watt at 1 m, Passive: 102 dB
    SPL, 1 watt at 1 m, Biamp (LF/HF): 101/112 dB

  • Impedance

    Passive: 4 Ohms
    Biamp (LF/HF): 4/8 Ohms

  • Power Handling

    Passive - Long-Term EIA: 600 watts
    Short-term peak: 2400 watts
    Biamp - LF Long-Term EIA: 600 watts
    Short-term peak: 2400 watts
    Biamp - HF Long-Term AES: 75 watts
    Short-term peak: 300 watts

  • Calculated Maximum SPL Output

    Long-Term: 129 dB
    Peak: 135 dB

  • Nominal Coverage Angle

    Horizontal (-6 dB): 75 deg.
    Vertical (-6 dB): +15/-35 deg.

  • LF Section & Components

    12" woofer in vented enclosure

  • HF Section & Components

    DH7 compression driver with 3" titanium diaphragm on asymmetric 75 x 50 horn

  • System Configuration

    Two-way, full-range

  • Powering Configuration

    Switchable passive or biamp

  • Passive Crossover Frequency

    1800 Hz

  • Cabinet Type (shape)

    Trapezoid

  • Enclosure Material

    13-ply birch plywood

  • Connectors

    Two Neutrik NL4

  • Suspension Hardware

    L-track top and bottom, Single-stud plate on back for pull up

  • Grille

    Powder-coated perforated 16-GA steel

  • Dimensions

    H x D: 38.98 x 14.77" / 99 x 37.51cm
    Width at front: 15.47" / 39.29cm
    Width at back: 10.79" / 27.40cm

  • Weight

    80lbs / 36.28kg

About Telex QRx 212/75

The Electro-Voice QRX 212/75 Dual 12" 2-Way Full-Range Black Loudspeaker (Single) is two-way, full-range loudspeaker system incorporating two 12" woofers and a 3" voice coil compression driver on an asymmetrical 75-degree x 50-degree fully rotatable constant-directivity horn. In factory delivered position, this provides a 15-degree up/35-degree down vertical coverage pattern. The trapezoidal cabinet design allows this main PA system cabinet to easily conform to multi-cabinet arrangements or limited space clearances without sacrificing internal volume. The fully rotatable horn means regardless of cabinet position, pattern control is user-determined.

The QRX-212/75 is a good solution for medium size rooms and audiences as a main PA providing moderate levels with good bass response and added punch in the lower and mid frequencies, satisfying most DJ and live band applications. The asymmetrical horn can allow a single box to more adequately direct the high frequencies as needed, as well as streamline multi-cabinet arrays when rotated by extending horizontal coverage while minimizing overlapping and allowing tighter packs between the cabinets.

What's in the box:

  • Electro-Voice QRx 212/75 Dual 12 " 2-Way Full-Range Loudspeaker
  • 3x SST-1 Single Stud
  • Electro-Voice 3 Year Warranty
