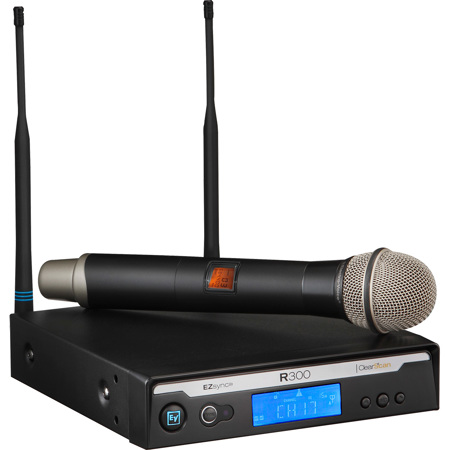

Electro-Voice R300-HD-C Handheld System, Includes R300 Receiver, HT-300 Handheld Transmitter, PL22 Dynamic Microphone Capsule and Case - C Band: 516-532MHz

SKU: EVR300HDC MFR: F.01U.306.180
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the Electro-Voice handheld wireless microphone system.
  • Enjoy freedom of movement on stage with this reliable wireless microphone; C Band: 516-532 MHz.
  • The PL22 dynamic microphone capsule delivers clear vocals for performances and presentations.
  • Benefit from over 14 hours of battery life; ideal for long events and ensures lasting performance.
  • Easy to use with a backlit LCD displaying channel, frequency, mute, and battery level clearly.
  • Durable metal case included, protecting your wireless microphone system during transport and storage.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice R300-HD-C Specifications

  • R300: Receiver Type

    Synthesized PLL

  • R300: Frequency Range (RF)

    C Band: 516 - 532 MHz

  • R300: Number of Channels

    32

  • R300: Modulation

    +/- 40 kHz

  • R300: Diversity

    True Antenna

  • R300: RF Sensitivity

    <1.0 Microvolts for 12dB SINAD

  • R300: Image Rejection

    > 55dB

  • R300: Squelch

    Tone Code plus Amplitude

  • R300: Frequency Response

    80 Hz - 18 kHz +/- 2dB

  • R300: Balanced Output

    20dBV (max at 40 kHz deviation)

  • R300: Unbalanced Output

    Adjustable 8 mV to 0.755V RMS

  • R300: Distortion

    < 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation)

  • R300: Signal-to-Noise Ratio

    > 100dB A-Weighted

  • R300: Dynamic Range

    > 95dB

  • R300: Power Requirements

    12-16 VDC, 500mA max

  • R300: Operating Temperature

    5 to 45 deg. C / 41 to 113 deg. F

  • HT-300: Radiated Output

    8 mW typical

  • HT-300: Back Lit LCD Display

    Channel, Frequency, Mute and Battery Level

  • HT-300: Microphone Type

    Electro-Voice PL22 Cardioid Dynamic

  • HT-300: TA4F Connector Wiring

    Pin 1: Ground; Pin 2: Mic Input
    Pin 3: +5V bias; Pin 4: +5V thru 2.2kOhms

  • HT-300: Power Requirement

    Two AA batteries

  • HT-300: Battery Life (Typical)

    > 14 hours with AA alkaline typical

  • HT-300: Antenna

    Internal proprietary

  • PL22: Generating Element

    Dynamic

  • PL22: Magnet Type

    Neodymium

  • PL22: Frequency Response

    80 -12,000 Hz

  • PL22: Polar Pattern

    Cardioid

  • PL22: Impedance

    600 ohms

  • PL22: Sensitivity, Open Circuit Voltage

    3.2 mV/pascal, 1 kHz

  • Dimensions

    HT-300 (H x W x D): 26.7cm / 10.51" Long
    R300 (H x W x D): 43 x 206 x 210mm / 1.69 x 8.11 x 8.27"
    PL22 (L x W): Widest: 84.5 x 53.2mm / 3.33 x 2.09", Narrowest: 84.5 x 34.7mm / 3.33 x 1.37"

  • Weight

    PL22: 122g / 4.30oz

  • UPC Code

    800549780643

About Electro-Voice R300-HD-C

Because high-quality sound and reliable performance are paramount, the Electro-Voice R300-HD-C Handheld System is the ideal choice for professionals in the audio industry. This advanced, durable system is designed for a multitude of applications where the convenience of a handheld transmitter is required, such as live performances, theater productions, and speaking engagements.

The system includes the robust HT-300 metal handheld transmitter, designed to withstand daily use while maintaining comfort and light-weight handling. Paired with the PL22 dynamic microphone, this system delivers exceptional sound quality for both singing and speaking events. The cardioid pickup pattern of the PL22 microphone effectively rejects ambient noise, controls audio feedback, and allows experienced vocalists to work the microphone to its full potential.

The R300 receiver, with its dual antenna diversity, ensures avoidance of signal dropouts, providing consistent, high-quality sound. Its durable metal frame can be conveniently placed on a tabletop or rack-mounted with optional hardware, offering flexibility in setup and placement.

The R300-HD-C system operates on the C band, with a frequency range of 516-532 MHz, and features one-touch ClearScan technology. With a simple button press, ClearScan scans all 32 preset channels, selecting the clearest one for noise-free operation and optimal operating range. The EZsync feature uses infrared technology to match the transmitter frequency to the receiver, ensuring an error-free setup.

The system also boasts a 14-hour battery life from two AA alkaline batteries, and rugged metal transmitters with a backlit LCD display and battery gauge. This professional-grade, reliable wireless microphone system is a testament to Electro-Voice's reputation for producing high-quality audio equipment.

Electro-Voice R300-HD-C Features

  • Professional-grade handheld UHF wireless system, perfect for live performances and speaking engagements
  • Includes robust HT-300 metal handheld transmitter, designed for durability and comfort
  • Features PL22 dynamic microphone with cardioid pickup pattern for superior sound quality and noise rejection
  • R300 receiver with dual antenna diversity for reliable, high-quality sound and flexible setup options
  • One-touch ClearScan technology for automatic selection of the clearest channel among 32 preset options
  • EZsync feature for easy and error-free setup using infrared technology
  • Long-lasting 14-hour battery life from two AA alkaline batteries and backlit LCD display with battery gauge

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with the Electro-Voice handheld wireless microphone system.
  • Enjoy freedom of movement on stage with this reliable wireless microphone; C Band: 516-532 MHz.
  • The PL22 dynamic microphone capsule delivers clear vocals for performances and presentations.
  • Benefit from over 14 hours of battery life; ideal for long events and ensures lasting performance.
  • Easy to use with a backlit LCD displaying channel, frequency, mute, and battery level clearly.
  • Durable metal case included, protecting your wireless microphone system during transport and storage.

What's in the box:

  • Electro-Voice R300 Receiver
  • HT-300 Handheld Transmitter
  • PL22 Dynamic Microphone Capsule
  • Case
  • Electro-Voice 3 Year Limited Warranty
