Telex RCM-810 IRIS-Net Remote Control Module f/CPS Series Amplifiers
See all Telex items

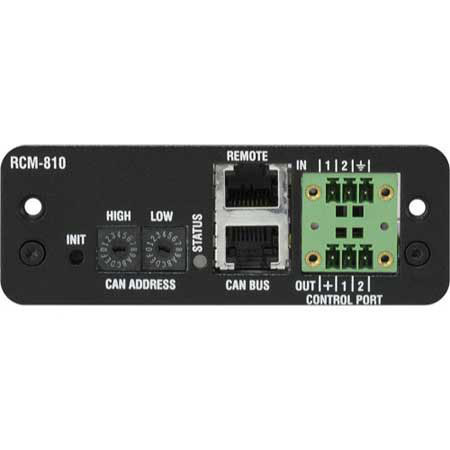

Telex RCM-810 IRIS-Net Remote Control Module for CPS Series Amplifiers

SKU: EVRCM810

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex RCM-810 Specifications

  • Remote control and software

    IRIS-Net, Multiple PCs possible, MS Windows 2000, XP, Vista, 7, 8

  • Maximum configuration

    250 Amplifiers in total, 100 Amplifiers per CAN bus, 1000 meter cable run

  • Amplifier supervision

    Operation mode, temperature, output voltage and current, impedance of connected speakers, protection mode status, pilot tone detection

  • Network supervision

    CAN bus failures, defective or missing amplifiers, bandwidth, failure protocol and messaging

  • CAN interface

    10-500 kbaud, 2 x RJ-45 (IRIS-Net Control)

  • GPIO control port

    2 x 3-pole Euro block
    2 Control Inputs
    2 Control Outputs (max.18 V / 250 mA per output)
    2 Reference Outputs (+5V, 200 mA / GND)

  • Supply voltage/current

    +5 V DC / 320 mA
    +15 V DC / 80 mA
    -15 V DC / 80 mA

  • Power consumption

    4W

  • Electromagnetical environment

    E1, E2, E3

  • Operating temperature

    0 deg. C to 40 deg. C

  • Dimensions (W x H x D)

    4.07 x 1.46 x 4.06" / 103.5 x 37 x 103mm

  • Weight

    4.06oz / 115g

  • UPC Code

    192223052796

About Telex RCM-810

The Electro-Voice RCM-810 IRIS-Net Remote Control Module for CPS Series Amplifiers is an optional module for supervision and remote control of power amplifiers. RCM-810 modules allow the amplifiers to be integrated into a remote control network with up to 100 devices. Up to 250 amplifiers can be used in an IRIS-Net project when multiple networks are used. Apart from the network port, the RCM-810 also offers freely programmable control inputs and control outputs. It has some Additional features like Control/Configuration and Supervision/Status indicators.

Telex RCM-810 Features

  • Enable powerful control and supervision capabilities
  • Integrate up to 100 devices in each remote control network, 250 with multiple networks
  • Support for 2-, 4-, and 8-channel CPS models
  • Freely programmable control inputs and outputs
  • Load-monitoring for each channel
  • Variable Load Drive for independent channel impedance on 4- and 8-channel amps (2-10 Ohms in 0.1 Ohms steps)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Load-monitoring for each channel

What's in the box:

  • Electro-Voice RCM-810 IRIS-Net Remote Control Module for CPS Series Amplifiers
  • Ribbon cable
  • Euroblock connector 6-pole
  • 4x Screw M3x10 & combination TORX
  • Data sheet
  • Electro-Voice Warranty
