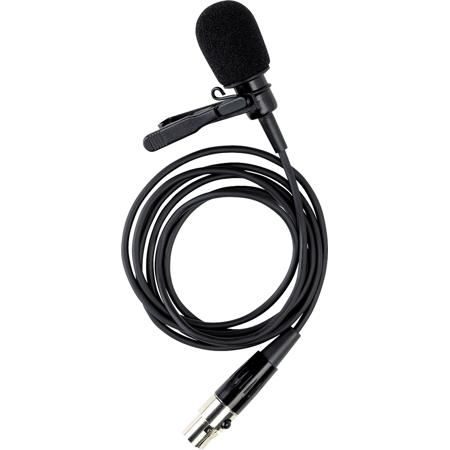

Electro-Voice RE92TX Miniature Cardioid Condenser Lavalier Microphone with TA4-F Connector, Black

SKU: EVRE92TXTL MFR: F.01U.117.645
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio with this Electro-Voice lavalier microphone, perfect for interviews.
  • Achieve professional sound quality with the RE92TX cardioid condenser lavalier microphone.
  • Minimize background noise using the included two-stage windscreen on this lavalier mic.
  • Enjoy hands-free recording for presentations with this discreet, easy-to-use lavalier.
  • The TA4-F connector ensures secure connectivity for reliable audio during performances.
  • Benefit from a wide frequency response, capturing every nuance with this lavalier microphone.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE92TX Specifications

  • Color

    Non-Reflecting Black

  • Generation Element

    Self-Biased condenser, back electret 2-micron thick, gold sputtered diaphragm

  • Frequency Response

    40 Hz to 20,000 Hz (see chart)

  • Polar Pattern

    Cardioid

  • Sensitivity, Open Circuit Voltage, 1 kHz

    5.6mV/Pascal

  • Clipping Level (1% THD)

    >135 dB SPL

  • Equivalent Noise

    <30 dB SPL "A" weighted (0 dB=20 micropascals)

  • Dynamic Range

    >105 dB Output Impedance, 1 kHz1500 ohms

  • Power Requirements

    5 VDC

  • Current Consumption

    < 500 uA

  • Connector Wiring

    Pin #1 - Ground, Shield
    Pin #2 - Audio, White
    Pin #3- Bias Voltage, Red
    Pin #4 - N/C

  • Environmental Conditions

    Relative Humidity 0-50%: -20 Degree to 165 Degree F (-29 Degree to 74 Degree C)
    Relative Humidity 0-95%: -20 Degree to 135 Degree F (-29 Degree to 57 Degree C)

  • Cable

    Diameter: 0.100" (2.54mm)
    Length: 4' (1.2m)

  • Dimensions (Dia. x L)

    0.412 x 0.948" (10.5 x 24.1mm) (Less strain relief)

  • Weight

    0.81 oz (23g) (With connector)

  • UPC Code

    800549985482

Models
Electro-Voice RE92TX Miniature Cardioid Condenser Lavalier Mic w/TA4-F Connector
$332.00

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Electro-Voice RE97LTx Ultra-Miniature Condenser Lavalier Microphone, Black
$269.95

$343.00

Save:$73.05 (21%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Electro-Voice R300-L-C Lapel System - C Band: 516-532MHz
$345.00

$376.00

Save:$31.00 (8%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Polar PatternCardioidOmnidirectional-
ConnectorTA4FTA4FTA4F
Frequency--516-532 MHz
Kit StyleBase--
Signal Type--Analog
Receiver Type--Rack Mount, Table Top

About Electro-Voice RE92TX

If you're seeking professional-grade audio capture, look no further than the RE92TX Miniature Cardioid Condenser Lavalier Microphone with TA4-F Connector in sleek black. This high-quality, electret condenser lavalier microphone is expertly engineered for discreet miking of speech and instruments, making it a top-tier choice for a variety of applications including broadcast environments, stage performances, and presentations.

The compact size of the RE92TX makes it an optimal choice for environments where unobtrusive audio capture is essential, such as theatre productions, interviews, public address systems, and houses of worship. This microphone's cardioid polar pattern offers high gain before feedback, ensuring clear and crisp sound quality even in challenging audio environments.

The RE92TX's condenser element is designed to provide clear and natural sound reproduction, capturing every nuance of the audio source. To further enhance audio quality, this microphone comes with a two-stage windscreen that effectively minimizes wind noise and popping, ensuring your audio remains clean and clear.

This lavalier microphone comes complete with 4 feet of cable, providing ample length for versatile positioning. The cable is terminated with a 4-pin TA4F connector for easy and secure connection. Additionally, the RE92TX includes a tie clasp with a non-reflecting black finish, ensuring the microphone remains discreet and unobtrusive during use.

In summary, the RE92TX Miniature Cardioid Condenser Lavalier Microphone with TA4-F Connector offers professional-grade audio capture in a compact and discreet design, making it an ideal choice for a wide range of audio recording applications.

Electro-Voice RE92TX Features

  • Back-electret condenser element
  • Cardioid polar pattern
  • Integrated 6' (180cm) cable
  • TA4F connector is compatible with all EV bodypack transmitters
  • Use with TXA for wired XLR applications
  • Wide, Smooth Frequency Response
  • Includes Two-Stage, Press-on Windscreen

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture crystal-clear audio with this Electro-Voice lavalier microphone, perfect for interviews.
  • Achieve professional sound quality with the RE92TX cardioid condenser lavalier microphone.
  • Minimize background noise using the included two-stage windscreen on this lavalier mic.
  • Enjoy hands-free recording for presentations with this discreet, easy-to-use lavalier.
  • The TA4-F connector ensures secure connectivity for reliable audio during performances.
  • Benefit from a wide frequency response, capturing every nuance with this lavalier microphone.

What's in the box:

  • Electro-Voice RE92TX Miniature Cardioid Condenser Lavalier Microphone with TA4-F Connector (Black)
  • Two Stage Windscreen
  • Single Tie Clip
  • Dual Tie Clip
  • Electro-Voice 3 Year Limited Warranty
